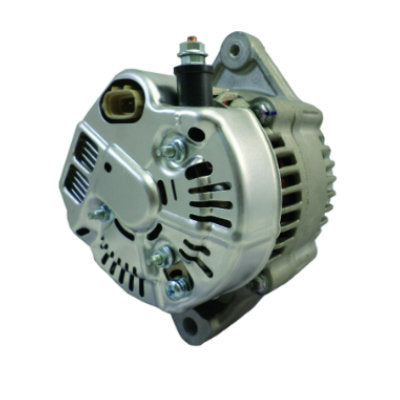

Collection: Alternator for for Kubota RTV1100 w/ Denso 102211-6060 - 11634

Alternator Manufacturer and Factory #s

Denso 102211-6060
Kubota K7711-61900, K7711-61901, K7711-61902, K7711-61903
Lester 11634
JN 400-52227PIC Picture ID 290-5503

Application
Kubota Utility Vehicle
RTV1100 Kubota D1105-E2-UV 24.8HP Dsl 2007

Alternator Parts Available

Kit 11634RK-A
Cover W015-40
Bearing 5-4705
6202-2RS BEARING-15x35x11mm W02X-05-1
6302 2RS BEARING-15x42x13mm W02X-15
Brush Holder Assy 7490-9200 W155-04
Brush 7390-901 W035-04
Plug 9801-312
Rectifier 7790-4031 W065-194
DISH DIODE-POS 35A 400V 9.7mm 3 W04X-18
DISH DIODE-NEG 35A 400A 9.7mm 3 W04X-19
Regulator 8090-4521 IN393
Stator 7290-8529 W105-23
ROTOR-102211- 12V70A 86.5mm 1 W075-07
B+ POST INSULATOR-M6    1 W115-01
THRU BOLT 4 W115-14
RETAINER SCREW 4x.18mm 1 W115-205
INT FAN REG SCREW-M4x0.7x25 2 W115-206
ROTOR BEARING SPACER-FLAT 1 W115-207
ROTOR BEARING COVER-TOP 1 W115-208
PULLEY NUT-14x1.5 FLANGE OE 1 W115-252N
NUT 6x1.0mm 10mm HEX 1 W115-39
WAVE WASHER RETAINING RING 1 W115-45
BRUSH/RECT SCREW 4mm    5 W115-81
SLIP RING W/LEAD 1 W165-00L
