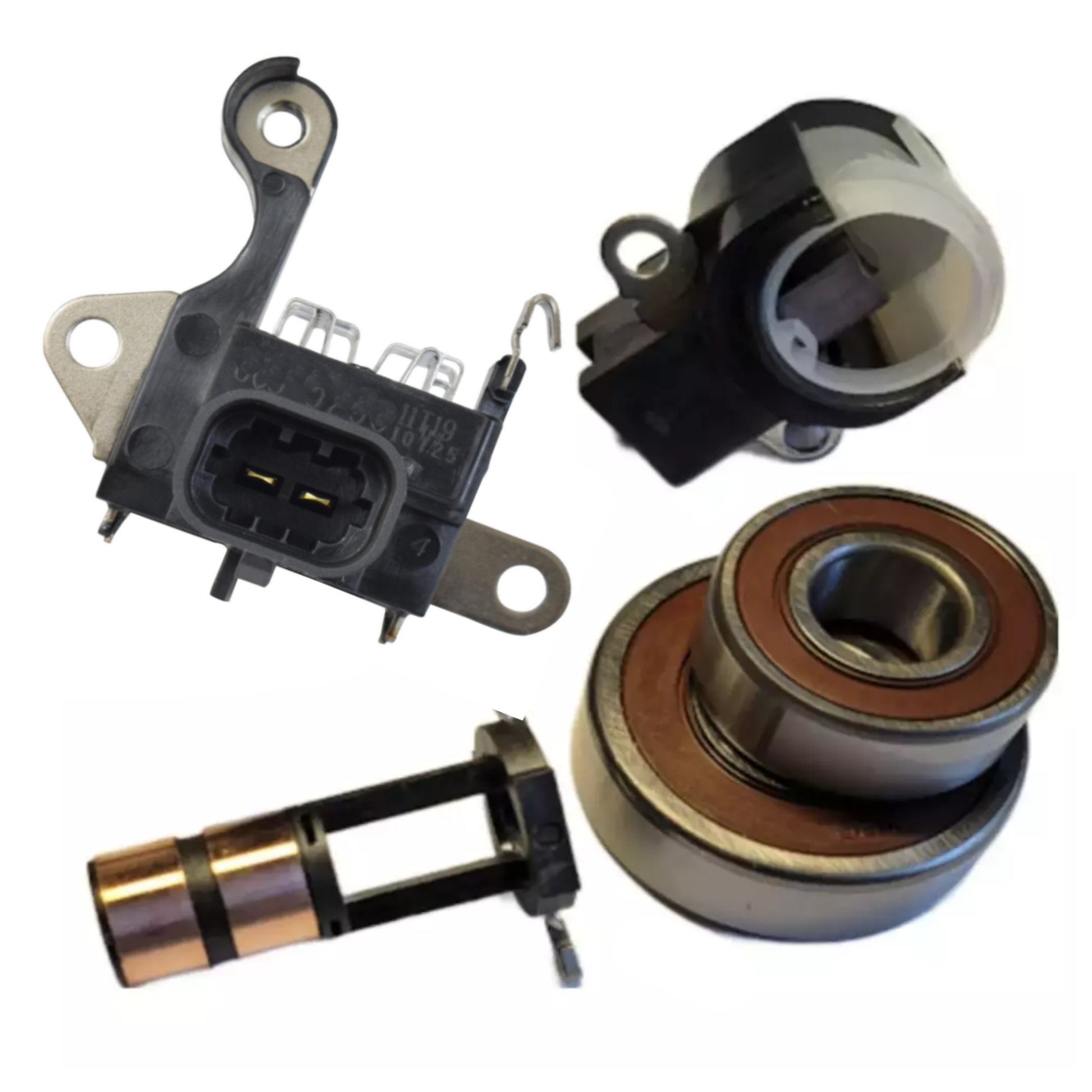

Alternator Rebuild Kit Cadillac XT5 XT6 Blazer Acadia 3.6L 170A 104211-0261 - 44019RK-A

**NOTE If you have the 155 Amp option please see kit # 44016RK-A.  The drive end bearing is smaller on the 155 amp option- Thank you

Cadillac XT5 V6 3.6L 222cid 2017-2022
Cadillac XT6 V6 3.6L 222cid 2020-2022
Chevrolet Blazer V6 3.6L 222cid 2019-2022
Chevrolet Blazer V6 3.6L 222cid 2024
GMC Acadia V6 3.6L 222cid 2017-2022

Alternator Manufacturer and Factory #s
Denso 104211-0261
GM 13507127
Lester 44019

• Voltage Regulator • L is not traditional lamp terminal • Voltage set controlled by vehicle RVC system • L(RC) terminal is computer RVC(PWM) connection, not Lamp (Regulator damage if tested as Lamp connection) Replacing Denso 126600-3290, 126600-3580, 3290, GC3 3290, GC3A 3580, Other 8008-4721, 8008-4509, GNR-N088, T7329, 216-076, 230-52143, AND6172, VRH2005-163, W085-320 - IN6329

• Drive End Bearing 55222 17x52x16mm Ref# 333-2RS, Replacing 949100-3330, 949100-4370, 949100-5010 -10-3042-4W

• SRE Rotor Bearing 53514 15x35x13mm 279, Replacing 949100-2790, 949100-3980, 949100-4440 - 10-2021-4W

• Brush Holder Assembly with Brushes Ref# 021620-3020, -3030, -3040 - 39-8206

• Slipring 5.8mm ID • 14.3mm OD Slip Ring • 11mm LL // Denso ... Other  7190-904B, 313-52004, W165-11, W16511, AND3505 - 28-82854
