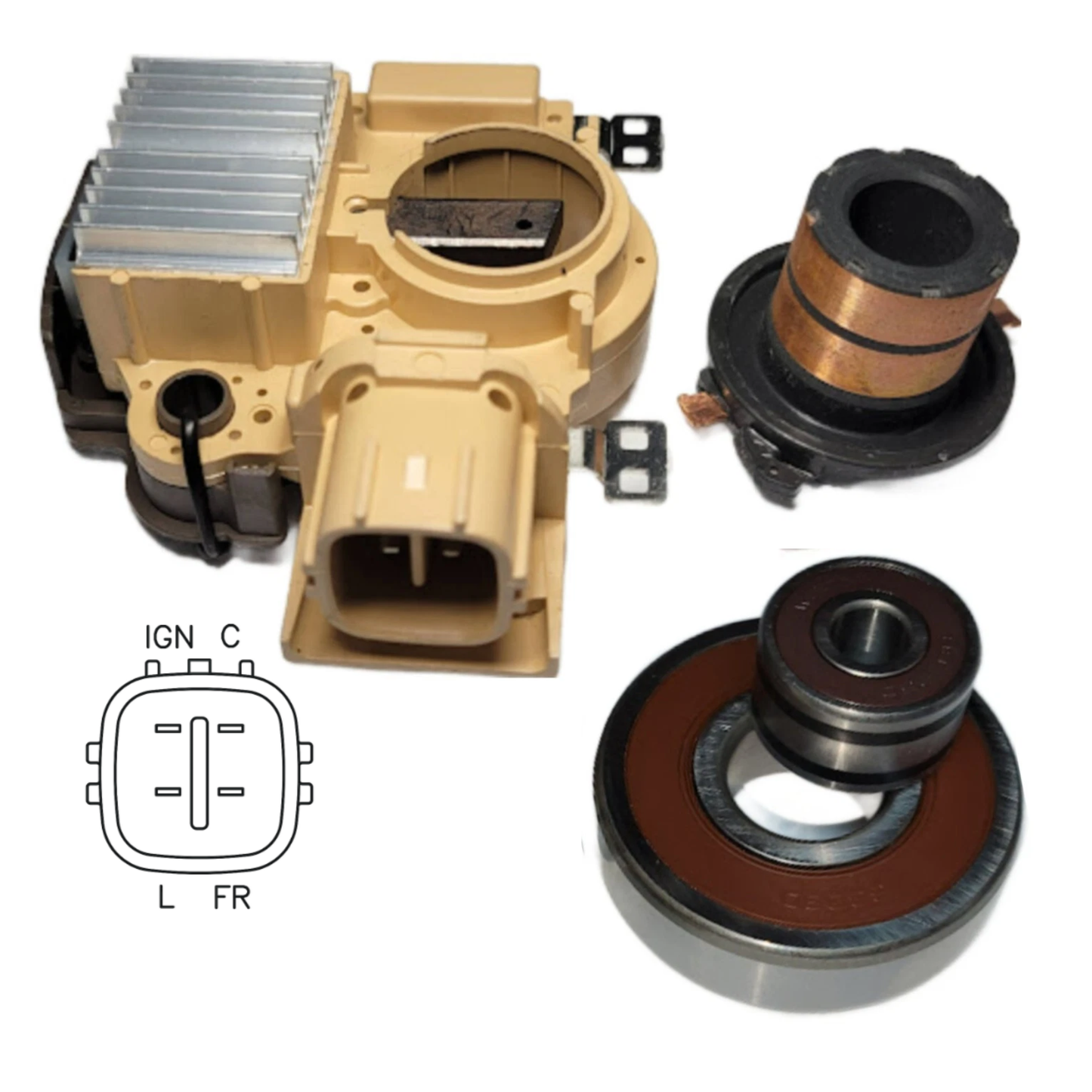

Alternator Rebuild Kit for 2001-2005 Civic 1.7L A5TA6991A, A5TA7091, A5TA7191,, - 13893RK-A

Acura EL L4 1.7L 2001-2005
Honda Civic L4 1.7L 2001-2005

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL1295X
ERA 209008
Excel 10566
Hollander 60795, 60904
Honda 06311-PLM-505RM, 31100-PLM-A01, 31100-PLM-A02, 31100-PLM-A02RM, AHGA50, AHGA64
IAT 190-13893
Lester 13893
Mitsubishi A005TA6991A, A005TA7091, A005TA7091ZC, A5TA6991A, A5TA7091, A5TA7091ZC, A005TA7191, A005TA7191ZC, A5TA7191, A5TA7191ZC
Acura 31100-PLM-C01, 31100-PLM-C02, AFGA51

• Voltage Regulator with Brushes, Replaces: Honda 31150-PLC-004, 31150-PLM-A01, 31150-PNC-004, 31150PLC004, 31150PLMA01, Other: T5851, W085-214, 230-48112, VRH2009-92, VRH2009-94, 196-097, 28653, MT-323, Mitsubishi 487, 495, 4954726D, A866X48782, 1J-60049, 8003-3031, 8003-3173, 495 // Specifications: 12 Volt, A-Circuit, IG-C-L-FR Terminals, 14.6 Voltage Set Point, For Mitsubishi Alternators on Acura Honda, 24mm ID Slip Ring Cover, With capacitor, Soft start, Lamp activated - IM851

• SlipRing Specification For Mitsubishi ER/IF, IR/IF Alternators • 13.5mm ID x 22.7mm OD •  W165-12, MT-265, 193-501, 1J-32500, 7103-12 - 28-83852

• Drive End Bearing 54000 17x40x12mm 6203-2RS Ref# A930X94570 - 6-203-4W

• Rotor SRE Bearing 52312 8x23x14mm SC8A05LHI Ref# S930P18570, S930P63605, S930P63670 - 10-800-4
