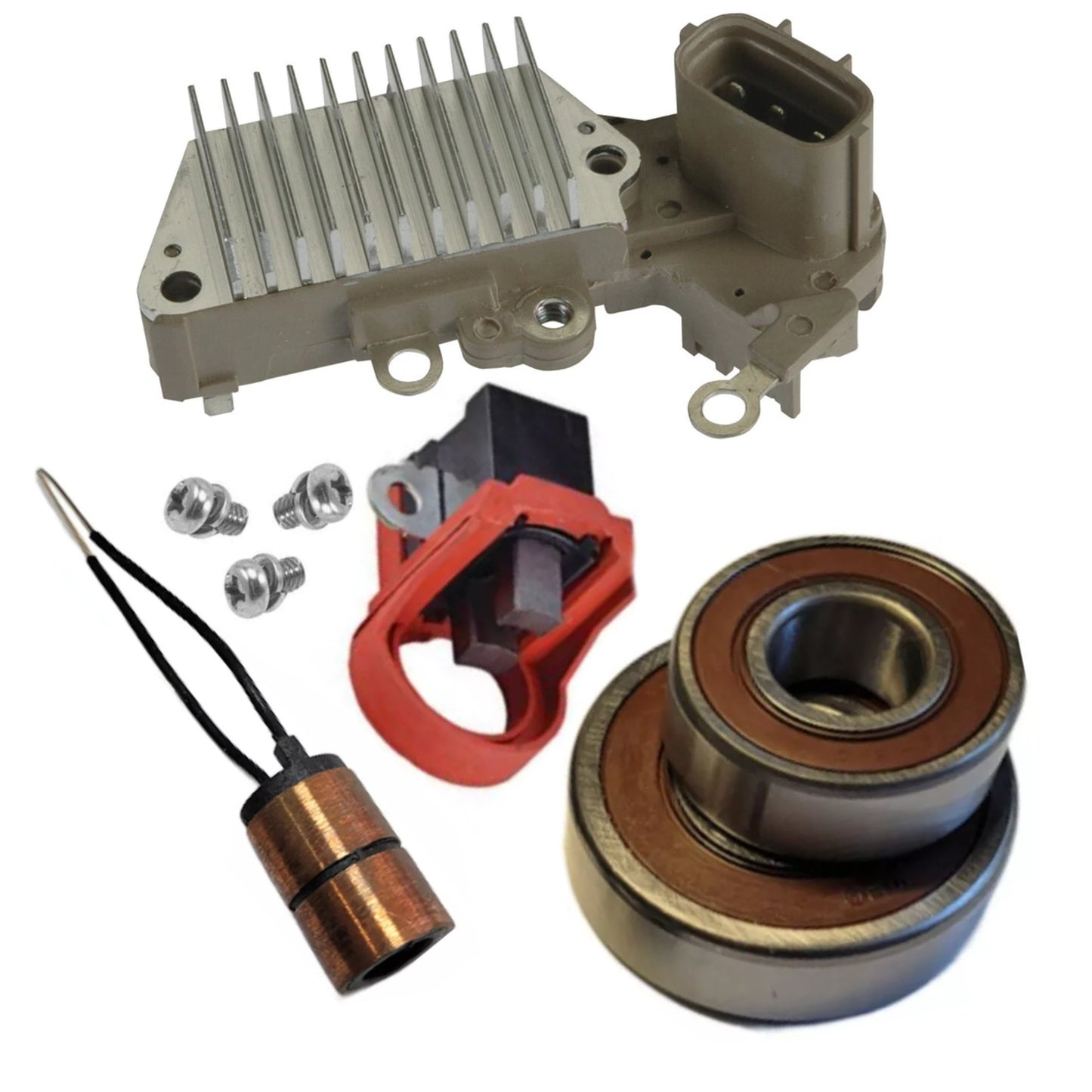

Alternator Rebuild kit Toyota Forklift 7FD10-20 w/ 102211-5190 102211-5240 102211-5850 - 12473RK-A

Alternator Manufacturer and Factory #s
Denso 102211-5190, 102211-5240, 102211-5850, 210-7024
Lester 12473, 12853
Toyota 27060-30530, 27060-74221, 27060-78700, 27060-78700-71
Lester 12473, 12853
PIC Picture ID 290-5284
Wilson    90-29-5467
JN 400-52441

Toyota Forklift
7FD10 1DZ 1998-2016
7FD10 2Z 1998-2016
7FD14 1DZ 1998-2016
7FD14 2Z 1998-2016
7FD15 1DZ 1998-2016
7FD15 2Z 1998-2016
7FD18 1DZ 1998-2016
7FD18 2Z 1998-2016
7FD20 1DZ 1998-2016
7FD20 2Z 1998-2016
Toyota Lift Truck
7FD23 2Z 1998-2016

• Voltage Regulator Replaces: Denso 126000-1580, 126000-1640, 126000-1660, 126000-1670, 126000-2820, 126000-7110, GM 94854171, 94857219, Toyota 27700-35040, 27700-46050, 27700-74030, 27700-74040, 27700-78700-71, Other: 80904416 80904620, 1K-60106, T7439, W085-115, 216-048, ND-435, 230-52070, 230-52191, MFVR02040, MFVR02042, VRH2005-31A :: Specifications: 12 Volt, A-Circuit, S-IG-L Terminals, 14.6 Voltage Set Point, w/ LRC, 63.5mm Mounting Length, Standard lamp function - no output - IN439

• Brush Holder Assembly with seal Ref# 021620-2010, 021620-2180, 021620-2200, 021620-2201, 021620-2630, 021620-2750 - 39-8200

• Drive End Bearing 15x42x13mm 6302-2RS Ref#s DENSO 949100-0400, 949100-2000, 949100-2800, Toyota 90099-10015, 90099-10141 54200- 6-302-4W

• SRE Rotor Bearing 15x35x11mm 6202-2RS, Ref#s 949100-0070, 949100-0160, 949100-0330, 949100-0340, 949100-2950, 949100-2951, 949100-3160, 949100-3161, 949100-3630, 949100-3730, 949100-3731 53500 - 6-202-4N

• Slip Ring Commutator 8.9 ID 14.6 OD 23.9 Length 7190904A, 313-52001 - 28-82853

• Brush Holder Attaching Bolts M4 x 0.7 x 5.7mm L - 85-1205 x3
