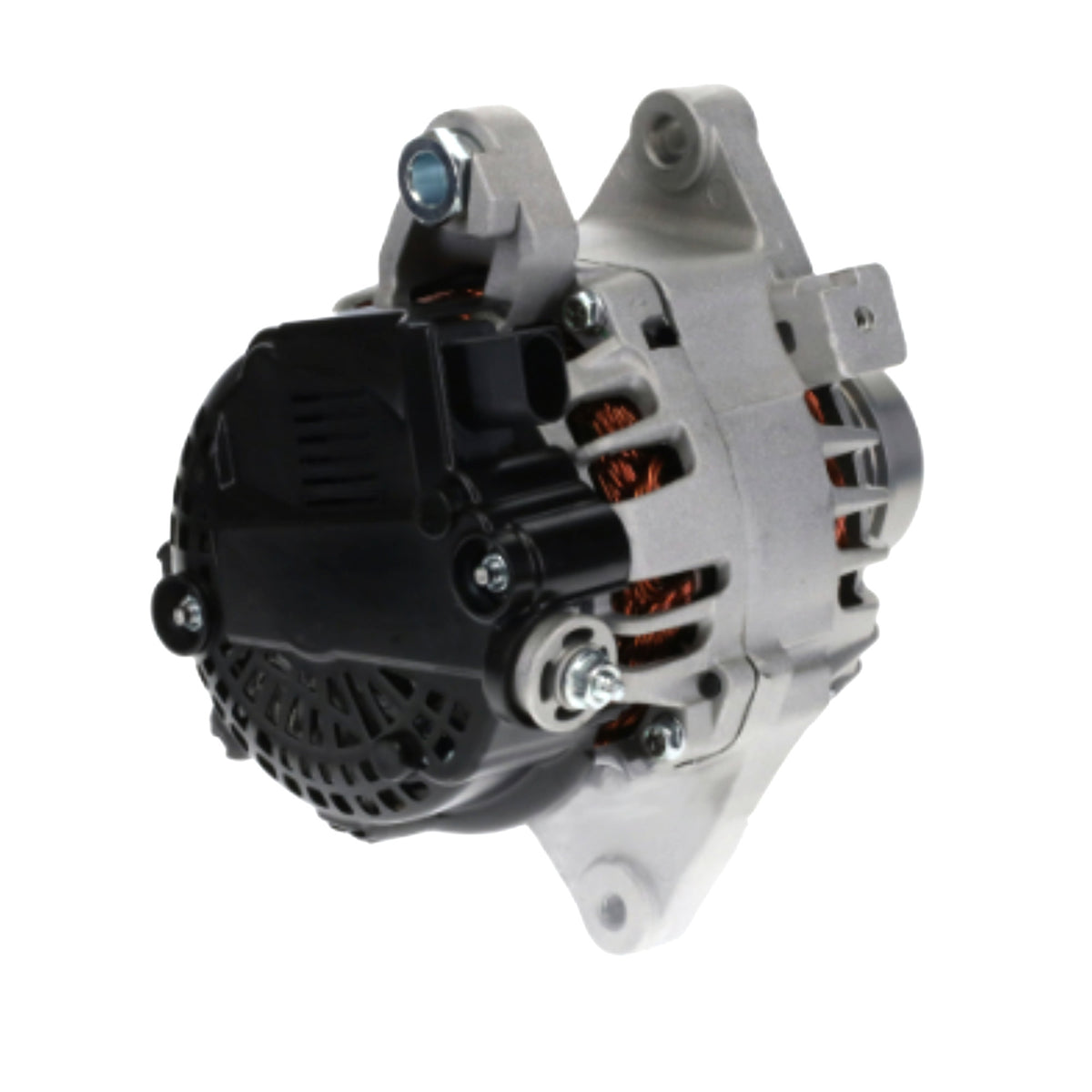

Alternator 2014-2019 Corolla 1.8L 27060-0T230, FG12T050, FG12T146 - 11693

Toyota Corolla L4 1.8L 2ZR-FE 2014-2019 w/Valeo

Alternator Manufacturer and Factory #s
Toyota 27060-0T230,
Valeo FG12T050, FG12T146, 2614390, 420230, 2614390A, 849150
Lester 11693
Bosch Aftermarket AL3387X (Reman)

Manufacture Valeo
Amperage Rating 120
Clock Position 7
Decoupled Or Clutch Pulley Yes
Family FG12
Fan Type Internal
Ground Type Negative
Mounting Type Flange
Oe Manufacturer Valeo
Plug Clock Rear View Main Mounting Ear At 6 O Clock 7
Plug Type 367
Pulley Belt Type Serpentine
Pulley Groove Quantity 6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Voltage 12

Alternator Rebuild Parts List
VALEO ALT-11693 COROLLA 110AOE 1 420230
Cover 1 W012-86N
6202-2RS Rotor Bearing 15x35x11mm 53500 1 W02X-05-1
6303-2RS DE Bearing 17x47x14mm 54700 1 W02X-11-1
Brushes 4.6x6.5x14mm 2 W032-00
DIODE-NEG 50A-22V 1 W04X-51
DIODE-POS 50A-22V 3 W04X-52
CLUTCH PULLEY-11693 6GRV ZEN 1 W052-53
DECOUPLER PULLEY-11693 6GRV55mmOE 1 W052-53N
Rectifier 1 W062-70N
Regulator M680 1 80085528 W082-97
OEM Regulator 2614680 1 W082-97N
Bearing Cap 1 46-94435 85010003 W112-13
Slip Ring -14.9mm 710111 1 W162-05
Repair Harness Connector Plug - 9801367 9801367
