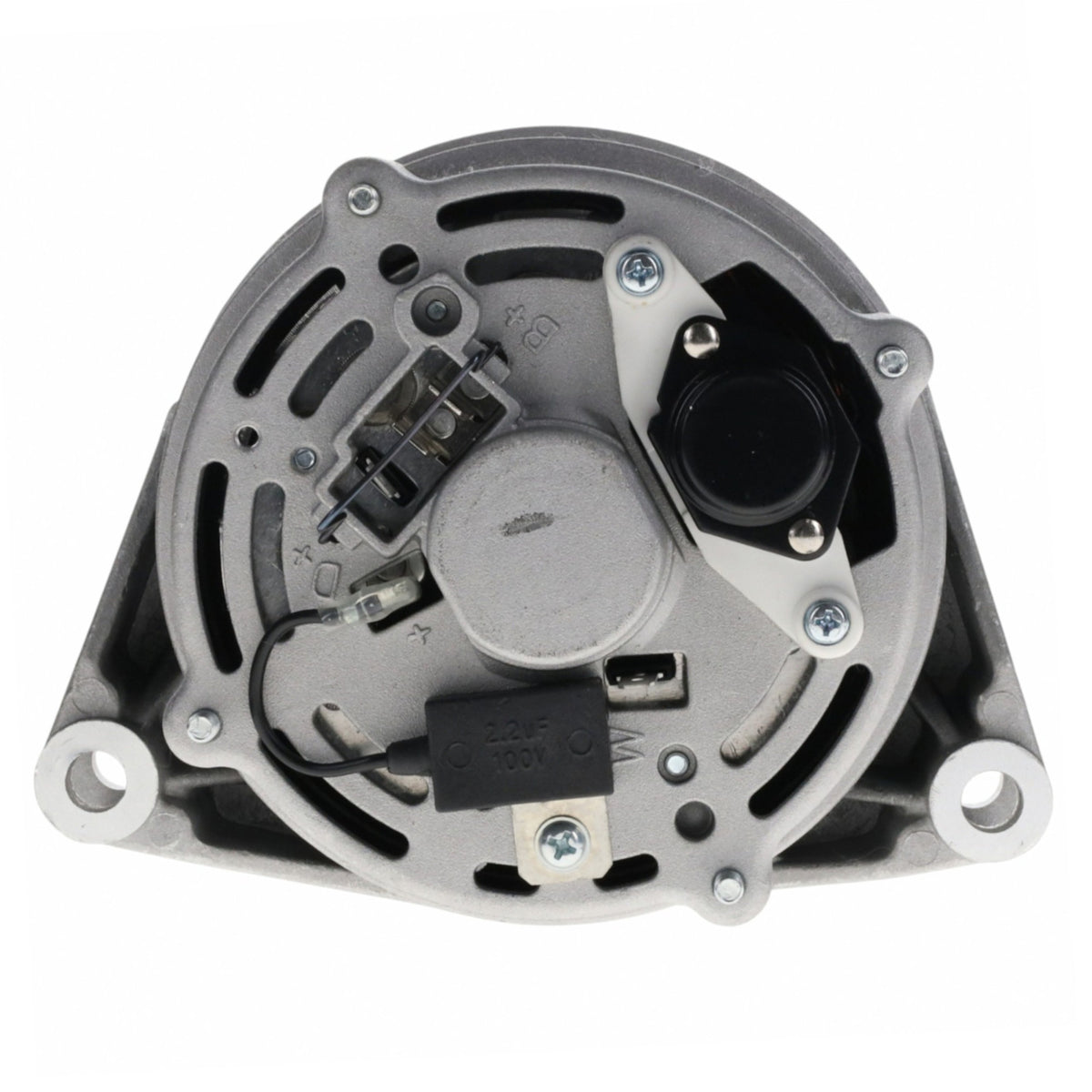

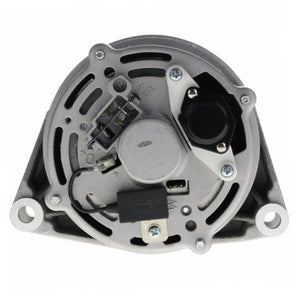

Alternator Rebuild Kit Mercedes 1986-1993 External Fan 190 300 with 70 Amp Bosch - 14820

Mercedes-Benz Car ***70 Amp Bosch External Fan Option
190D L4 2.2L 2197CC 1985-1985
190D L5 2.5L 2497cc Diesel 1986-1989
190E L4 2.3L 2299cc DOHC; Gas 1985-1993
260E L6 2.6L 2599CC 1987-1989
300CE L6 3.0L 2962cc Gas 1988-1989
300D L5 2.5L 2497cc Diesel 1990-1993
300D L6 3.0L 2998cc 1987
300E L6 3.0L 2962cc Gas 1986-1987
300SDL L6 3.0L 2998cc 1986-1987
300TD L6 3.0L 2998cc 1987
300TE L6 3.0L 2962cc Gas 1988-1989

Alternator Manufacturer and Factory #s
Bosch 0120488126, 0120489325, 0120489326, 0120489327, 0120489328, 0120489329, 0120489330
Bosch Remanufactured AL65X
ERA 210014
Excel 14820
Hollander 58160
Lester 14820
Mercedes-Benz 007-154-53-02, 007-154-54-02, 007-154-55-02, 007-154-56-02, 007-154-57-02, 007-154-58-02, 007154540280, 008-154-20-02, A0071545302, A0071545402, A007154540280, A0071545502, A0071545602, A0071545802, A0081542002
PIC# 220-179
Wilson 90-15-6150
Wilson 400-24171

Manufacture Bosch
Amperage Rating 70
Decoupled Or Clutch Pulley No
Design IR/EF
Family K1
Fan Type External
Ground Type Negative
Oe Manufacturer Bosch
Plug Clock 9
Plug Clock Rear View Main Mounting Ear At 6 O Clock 9
Plug Code 110
Plug Type 110
Pulley Belt Type Serpentine
Pulley Diameter 50
Pulley Groove Od 50
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

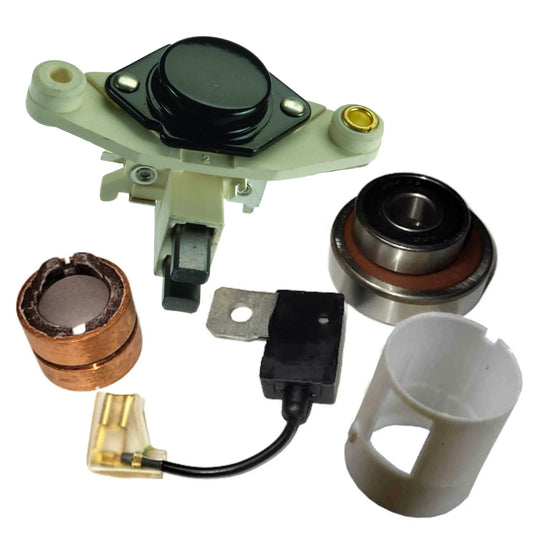

Alternator Rebuild Kit 14820RK-A
6201-2RS C3 BEARING W02X-01-1 53200 6-201-4
6304EHSR BEARING-17x52x17 W02X-45-1 55224 10-3043-4W
BRUSH-5x8x19mm W030-02 73201115B

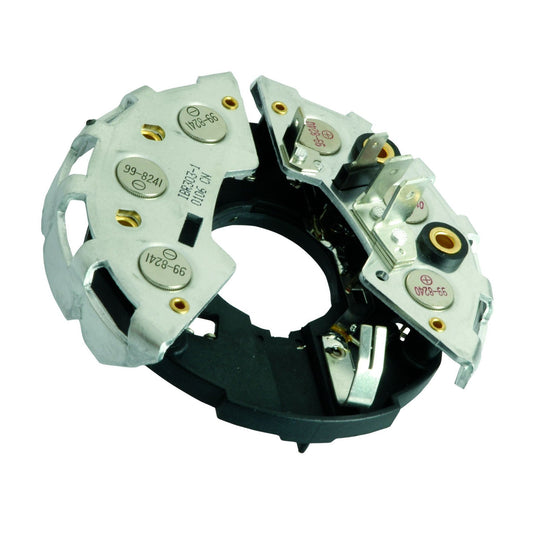

RECTIFIER MERCEDES HD W060-07HD 77201001
REGUlator 28mm 14.7V W080-05 80201138 IB355 IB353
BEARING RETAINER-HIGH 6201 W110-33 5651 46-91551
SHAFT COLLAR-PRESS FIT W110-50
PULLEY NUT-16x1.5 DEEP Alternator Rebuild Kit 14820RK-A
6201-2RS C3 BEARING W02X-01-1 53200 6-201-4
6304EHSR BEARING-17x52x17 W02X-45-1 55224 10-3043-4W
BRUSH-5x8x19mm W030-02 73201115B
RECTIFIER MERCEDES HD W060-07HD 77201001
REGUlator 28mm 14.7V W080-05 80201138 IB355 IB353
BEARING RETAINER-HIGH 6201 W110-33 5651 46-91551
SHAFT COLLAR-PRESS FIT W110-50
PULLEY NUT-16x1.5 DEEP W110-63
BEARING RETAINER-6304EHS W110-70N
SLIP RING-17 x 28mm OD W160-01
Pulley 79202028 79202029 79202030
Rotor 7020483
Stator 72209312
BEARING RETAINER-6304EHS W110-70N
SLIP RING-17 x 28mm OD W160-01
Pulley 79202028 79202029 79202030
Rotor 7020483
Stator 72209312
