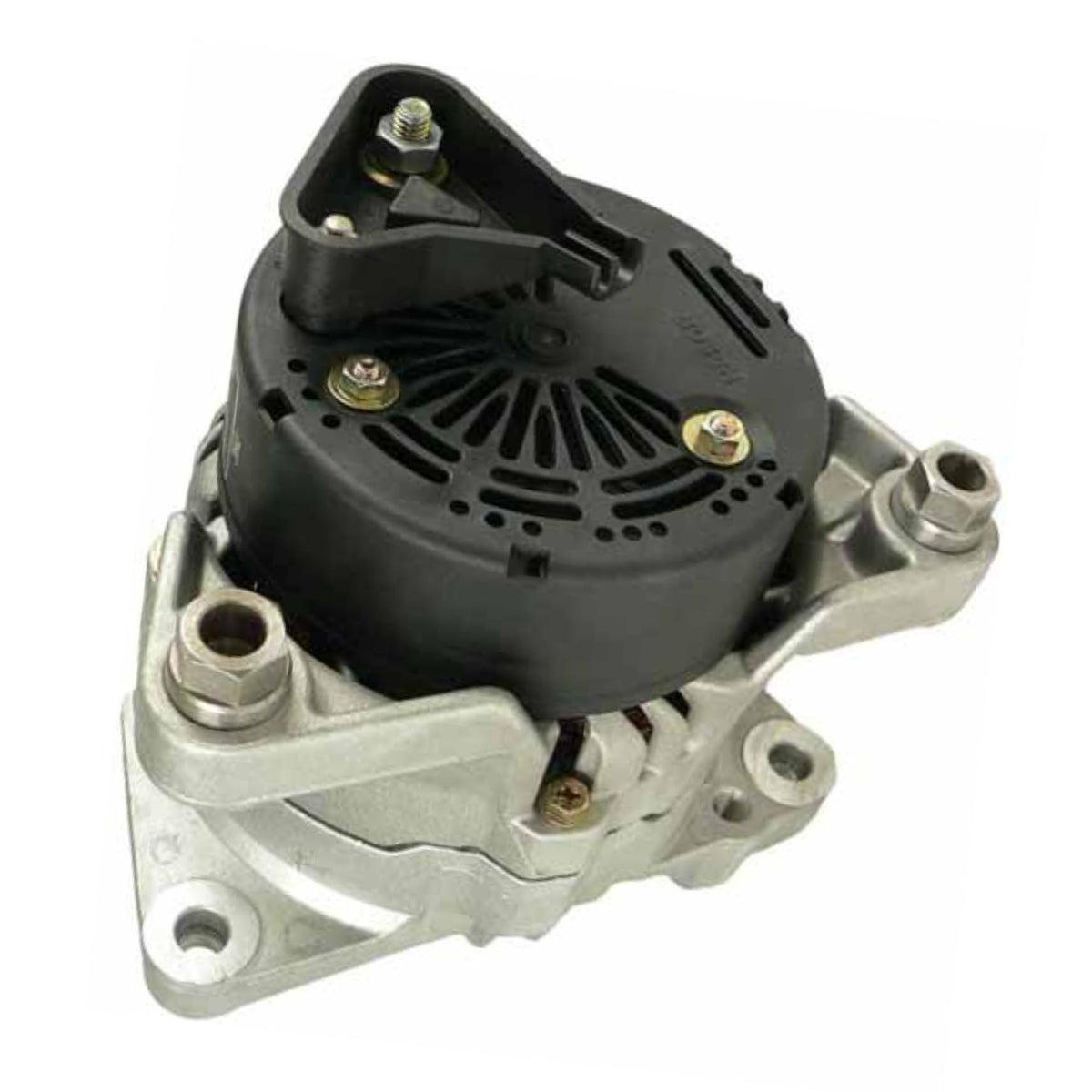

Alternator 1996-1998 BMW Z3 1.9L 90 Amp 0123320012 - 13733

BMW Z3 L4 1.9L 1996-1998

Alternator Manufacturer and Factory #s
BMW 12-31-1-247-487, 12-31-1-247-488, 12411247487
Bosch 0 123 320 012, 0123320012
Bosch Remanufactured AL0736X
Excel 10382
Hollander 58718
IAT 170-13733
Lester 13733

Manufacture Bosch
Amperage Rating 90
Decoupled Or Clutch Pulley No
Design IR/IF
Fan Type Internal
Ground Type Negative
OEM Manufacturer Bosch
Plug Clock 9
Plug Clock Rear View Main Mounting Ear At 6 O Clock 9
Plug Code 381
Plug Type 381
Pulley Belt Type Serpentine
Pulley Diameter 52
Pulley Groove Od 52
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

COVER W010-12 8420150
R6203-2RS C3 BEARING W02X-07-1 54000 6-203-4
6303-2RS C3 BEARING W02X-11-1 54700 6-303-4
BRUSH KIT-4x6x16mm W030-03K 73201105 38-91800

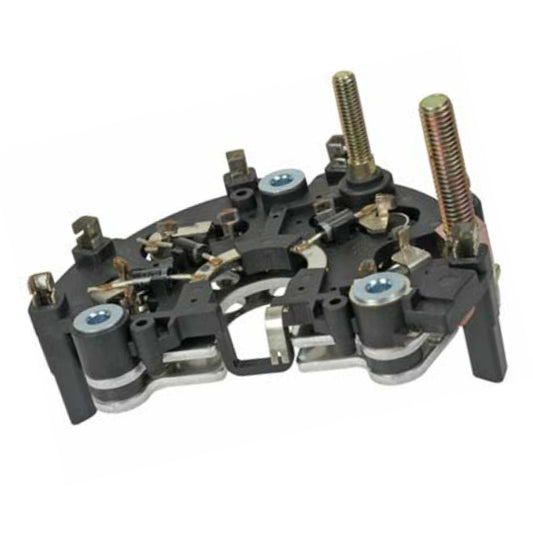

RECT-13465 BMW 112mm OD W060-41
REG-14mm 14.6V W080-10 80201160 IB385
PULLEY HARDWARE W110-06N
PULLEY NUT-16x1.5mm W110-22
PLASTIC BRG RETAINER-6203 W110-39
SHAFT COLLAR-PRESS FIT W110-50
INSULATOR W110-65
Rotor 7020485
Slip Ring 7120202
Stator 72209310 72209327
Tolerance Ring 5652
Washer 97202023
Pulley 79202027
