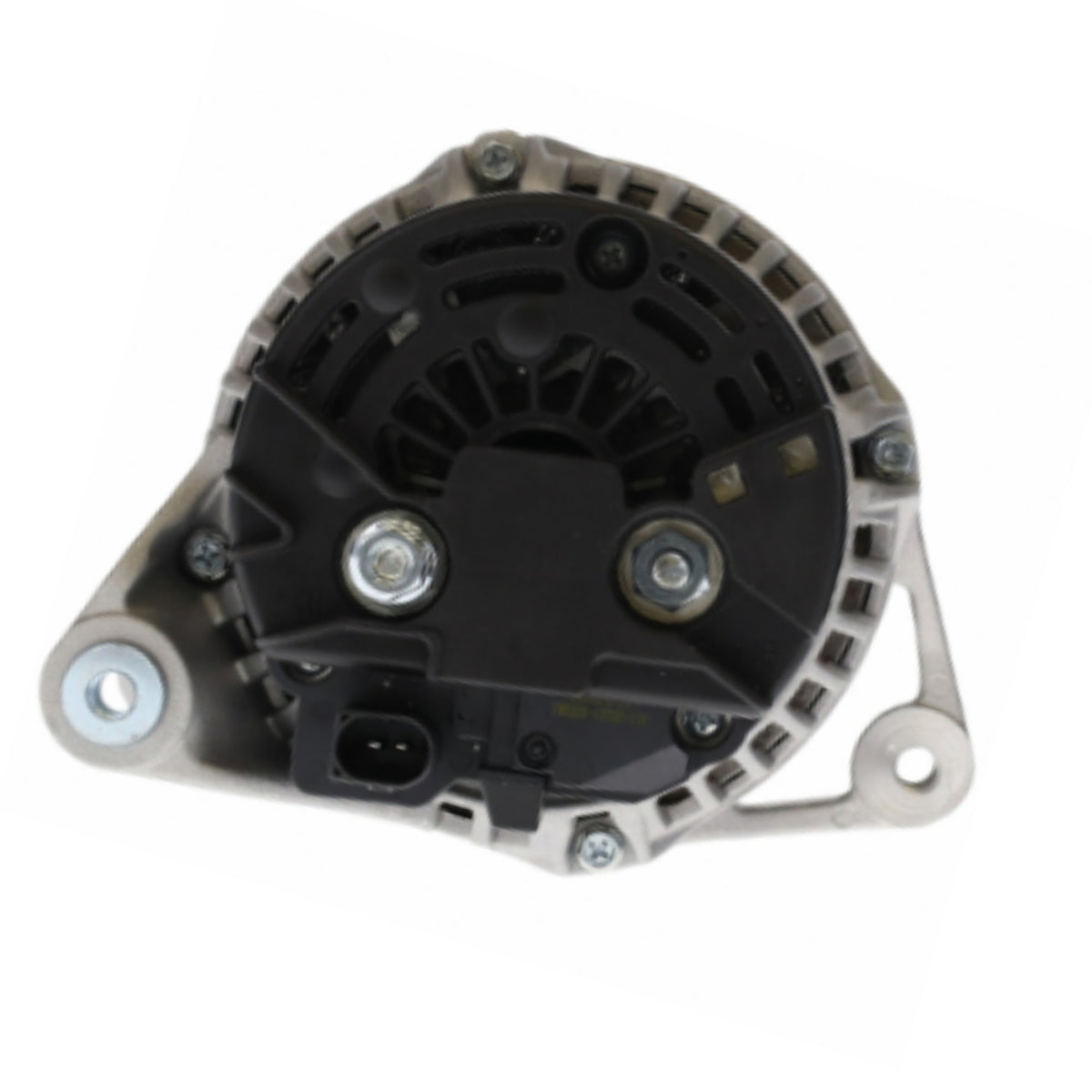

Alternator 1997-2004 Porsche 911 Carrera Boxster AT Tiptronic - 13810

Porsche Car
911 H6 3.4L 3400cc 1999-2001 A/T
911 H6 3.6L 3596cc 2002-2004 A/T
911 H6 3.6L 3606cc 2001-2004 A/T
Boxster H6 2.5L 2480cc 1997-1999
Boxster H6 2.7L 2687cc 2000-2004 A/T
Boxster H6 3.2L 3179cc 2000-2004 A/T

Alternator Manufacturer and Factory #s
Bosch 0 124 515 001, 0124515001, 0 124 515 015, 0124515015,
Bosch Remanufactured AL0700X
Bosch Service Europe 0 986 043 690, 0 986 043 697, 0 986 604 369, 0 124 515 042, 0124515042
Excel 10430
Hollander 58696, 58696B
Lester 13810
Lucas LRA02141, LEA0984
Porsche 996-603-012-00, 996-603-012-01, 996-603-012-03
Lester 13810 / PIC# 220-5085, 220-5085A, 220-5085B

Manufacture Bosch
Amperage Rating 120
Decoupled Or Clutch Pulley No
Design IR/IF
Family NCB1
Fan Type Internal
OEM Manufacturer Bosch
Plug Clock Rear View Main Mounting Ear At 6 O Clock 8
Plug Code 367
Plug Type 367
Pulley Belt Type Serpentine
Pulley Diameter 0
Pulley Groove Od 0
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

Alternator Rebuild Kit 13810RK-A
COVER 1 W010-14 8420107
6303-2RS C3 BEARING 1 W02X-11-1 54700 6-303-4
6003 2RS BEARING-17x35x10mm 1 W02X-46-1 53507 6-103-4
DIODE-NEG 50A-22V 3 W04X-51
DIODE-POS 50A-22V 3 W04X-52
PORSCHE DELTA 1 W060-66 77201058 IBR200
REGULATOR 1 W080-27A T9700 80201174 IB5225
PULLEY HARDWARE 4 W110-06N
PULLEY NUT-16x1.5mm 1 W110-22
BRG RETAINER 1 W110-61 92202019 46-91553
SLIP RING 1 W160-02 7120202 28-91852
NUT-8x1.25 HEX JAM 100L 2 W480-136
Pulley 79001006 79201049
Rotor 7020492
Stator 72209380
Washer, Spring 97202023

This is a 120A Bosch Alternator for the Porsche 911 and Boxster, Using a Conventional 6-Groove Pulley. The 11041 Was Used on the Same Cars, and is the Same Alternator, Except Using a 6-Groove Clutch Pulley. In 2005, the 11130 and 11131 Began Being Used, Which are the 150A Versions of the 13810 and 11041.
