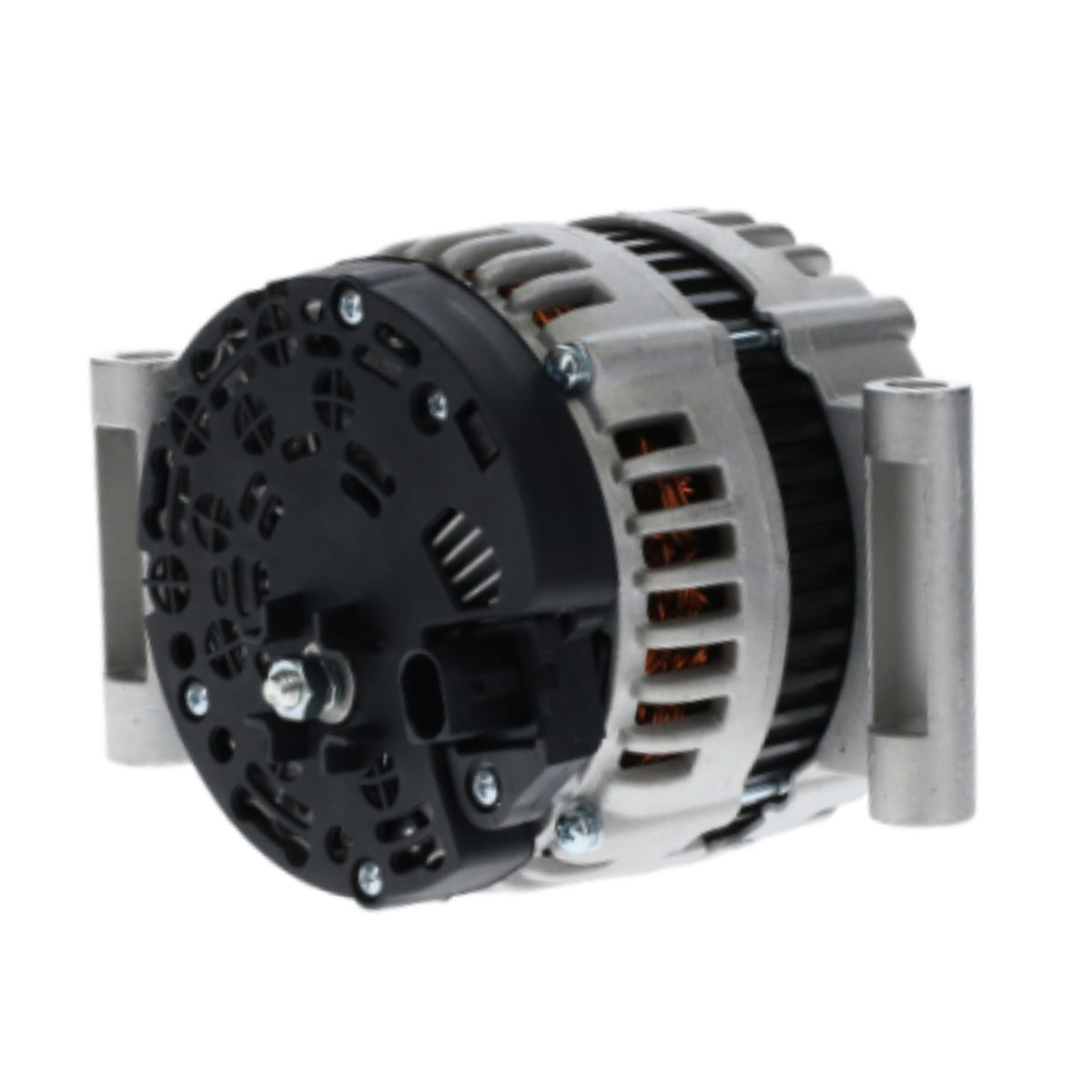

Alternator Ford Transit 2.2L with Bosch 0121615002 - 23925

Ford Van
Transit L4 2.2L 2198cc 134cid 2011
Transit L4 2.2L 2198cc 134cid 2013
Other European market vehicles with Bosch 0121615002

Alternator Manufacturer and Factory #s
Bosch 0 121 615 002, 0121615002
ERA 210402, 210421
Fiat 965814468, 9658144680, 965991808, 9659918080
Ford 1352430, 1404791, 1572736, 1581843, 1712779, 1747021, 1762862, 4M5T10300AB, 6C1T-10300-BA, 6C1T-10300-BB, 6C1T-10300-BC, 6C1T-10300-BD, AC1T-10300-BA, AC1T-10300-BB, REAC1T-10300-BB, 6C1T-BA, 6C1T-BB, 6C1T-BC
Lester 23925
Pic 220-5580

Manufacture Bosch
Amperage Rating 150
Design IR/IF
Fan Type Internal
Ground Type Negative
Oe Manufacturer Bosch
Plug Clock Rear View Main Mounting Ear At 6 O Clock 1
Pulley Diameter 59
Pulley Type SD6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

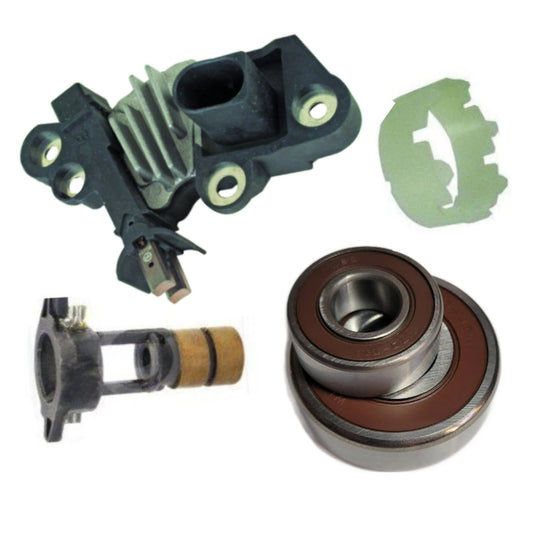

Alternator Rebuild Kit 23925RK-A
Bearings 53500 54700
Brush Set 73201105B
Clutch Pulley 79201041
Cover - S.R.E. Frame 8420158A
Cover, Pulley 84404115A
Diode, Neg 7700247
Diode, Pos 7700246
Frame Assy, Rectifier 77201554
Frame, DE 76202044
Kit, Alternator Parts 52011
Nut 9500-1466 9590003
Plug 9801073
Rectifier, Pos 77201533
Regulator & Brush Holder 80201246
Rotor 7020478
Screw 9620110
Slip Ring 7120205
Stator 72209478

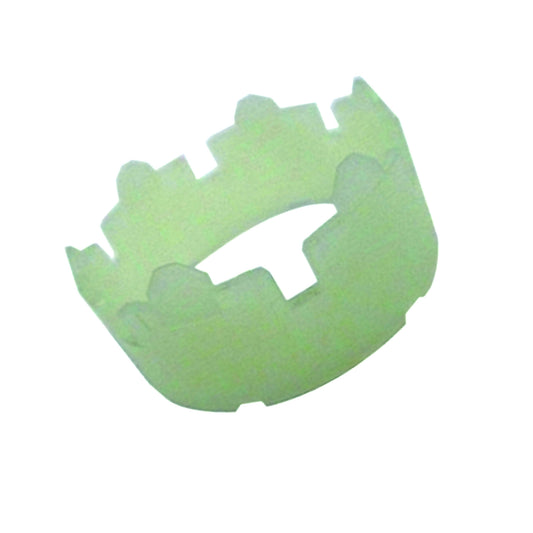

Tolerance Ring 52010
BO RECT COVER FLAT 1 W010-52
6202-2RS BEARING-15x35x11mm 1 W02X-05-1
6303-2RS C3 BEARING 1 W02X-11-1
DIODE-NEG 50A-22V 1 W04X-51
DIODE-POS 50A-22V 1 W04X-52
PLSTC BRG RETAINER-6202 OE 1 W110-80N
PULLEY CAP-55.5mm OD OE 1 W112-31N
SLIP RING-715 SERIES 5mm ID 1 W160-03
