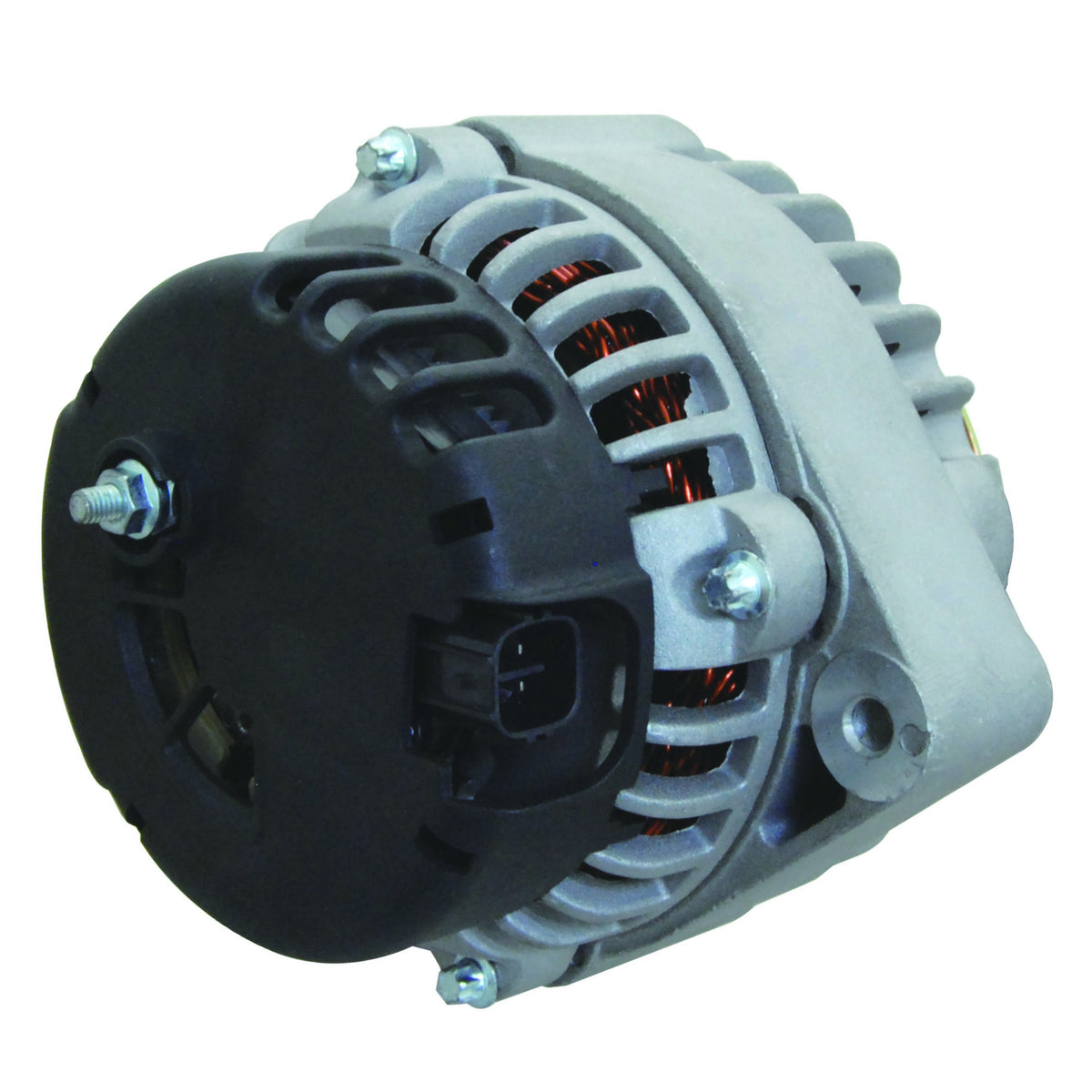

Alternator 1997-1999 Acura 3.0 CL, 1998-2002 Accord V6 3.0L - 8220

Acura CL V6 3.0L 1997-1999
Honda Accord V6 3.0L 1998-2002

Alternator Manufacturer and Factory #s
Acura 31100-P8C-A02
Bosch Aftermarket AL1277N (New), AL1277X (Reman)
Delco-Remy 10463963, 10464417, 10480228, 10480228A, 19136022, 10480453
DENSO Auto Parts 210-5233
HC CARGO 113159
Honda 31100-P8A-A01, 31100-P8A-A02, 31100-P8C-A02, 31100-P8C-A02RM
Lester 8220
Motor Coach Industries GM-966-2A47

Manufacture Delco
Amperage Rating 105
Decoupled Or Clutch Pulley No
Design IR/IF
Family CS130D
Fan Type Internal
Ground Type Negative
Mfr Series CS130D
OEM Manufacturer Delco
Plug Clock 2
Plug Clock Rear View Main Mounting Ear At 6 O Clock 2
Plug Code 296
Plug Type 296
Pulley Belt Type Serpentine
Pulley Diameter 65
Pulley Groove Od 65
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Series CS130D
Type Alternator
Voltage 12

Alternator Rebuild Kit 8220RK-A
COVER HONDA 1 D01-00 84404037
RECTIFIER CS130D HONDA 1 D06-44 77401133 DR4205
REGULATOR-CS130D HONDA 1 D08-62 80406289 D9715
SCREW-4x21mm D11-03
BRUSH HOLDER-CS130D 1 D15-06 74404609
SLIP RING-AD 1 D16-03 7140440 28-1856
6202-2RS BEARING-15x35x11mm 1 W02X-05-1 53500 6-202-4W
6303-2RS C3 BEARING W02X-11-1 54700 6-303-4W
Frame, DE 76404184
Frame, SRE 75404175
Grease, Heat Transfer 9900101
Insulator 92404059
Nut 95001300
Plug 9801296
Pulley 79401286
Repair Kit 99404654
Repair Kit, 69401006
Retainer, Bearing 85404106
Rotor 70401687
Screw 96404041 85-1200
Scre 96404040 85-1214
Spacer 97404080 46-1621
Stator 72406128
Terminal, Battery 96404641
Thru Bolt 96404135 85-1335
Washer, Lock 97404000 84-4606
