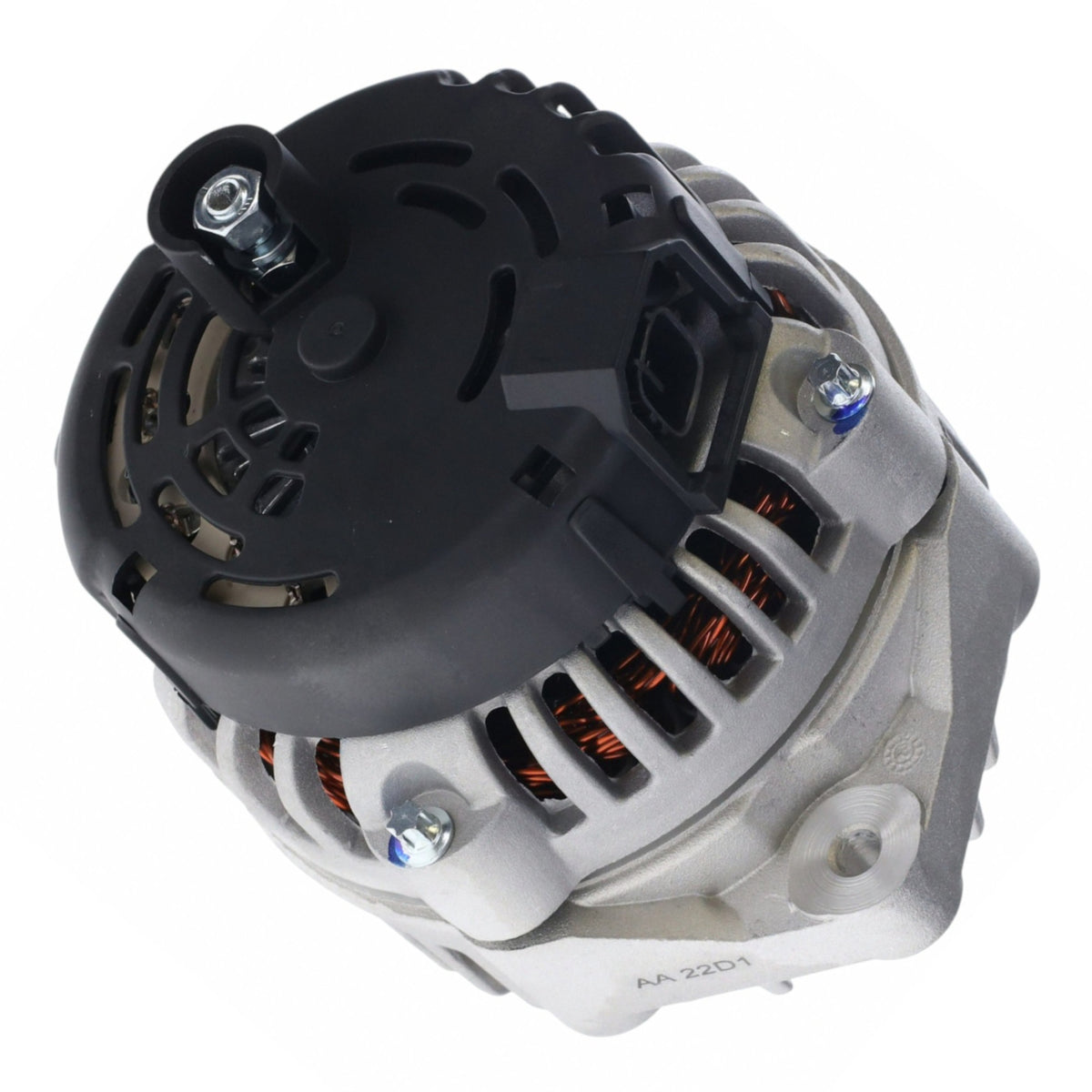

Alternator 2003 Honda Accord 3.0L 10480497 - 8296

Honda Accord V6 3.0L 2003

Alternator Manufacturer and Factory #s
Bosch Aftermarket AL1301N (New), AL1301X (Reman)
Bosch Service Europe 0-986-UR0-857
Delco Reman 10464497
Delco-Remy 10480497
Honda 06311-RCA-505, 06311-RCA-505RM, 3110-0RC-AA01RM, 31100-RCA-A01
Lester 8296

Manufacture Delco
Amperage Rating 105
Decoupled Or Clutch Pulley No
Design IR/IF
Family CS130D
Fan Type Internal
Ground Type Negative
Mfr Series CS130D
OEM Manufacturer Delco
Plug Clock 11
Plug Clock Rear View Main Mounting Ear At 6 O Clock 11
Plug Code 296
Plug Type 296
Pulley Belt Type Serpentine
Pulley Diameter 65
Pulley Groove Od 65
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Series CS130D
Type Alternator
Voltage 12

Alternator Rebuild Kit 8296RK-A
COVER HONDA D01-00
REG-CS130D HONDA 8220 D08-62 D9715
DELCO TOLERANCE RING-AD230 D11-41
SLIP RING-AD D16-03 28-1861
RECT-CS130D 50A TADITEL 1 D06-35 T12
RECT-CS130D 65A TADITEL 1 T13 DR4204
6202-2RS BEARING-15x35x11mm W02X-05-1 6-202-4
6303-2RS C3 BEARING W02X-11-1 6-303-4
BRUSH HOLDER ASSY 39-109-3
BRUSHES 38-119, 38-120
GREASE, HEAT TRANSFER 89-252, CH104S
INSULATOR 42-1316
NUT 84-2700
RETAINER, BEARING, 46-1510
SCREW 85-1214, 85-1200, 85-1200-B500
STATOR 27-142, 27-148-180
TERMINAL, BATTERY, 46-1185
THRU BOLT 85-1302, 85-1302-1
