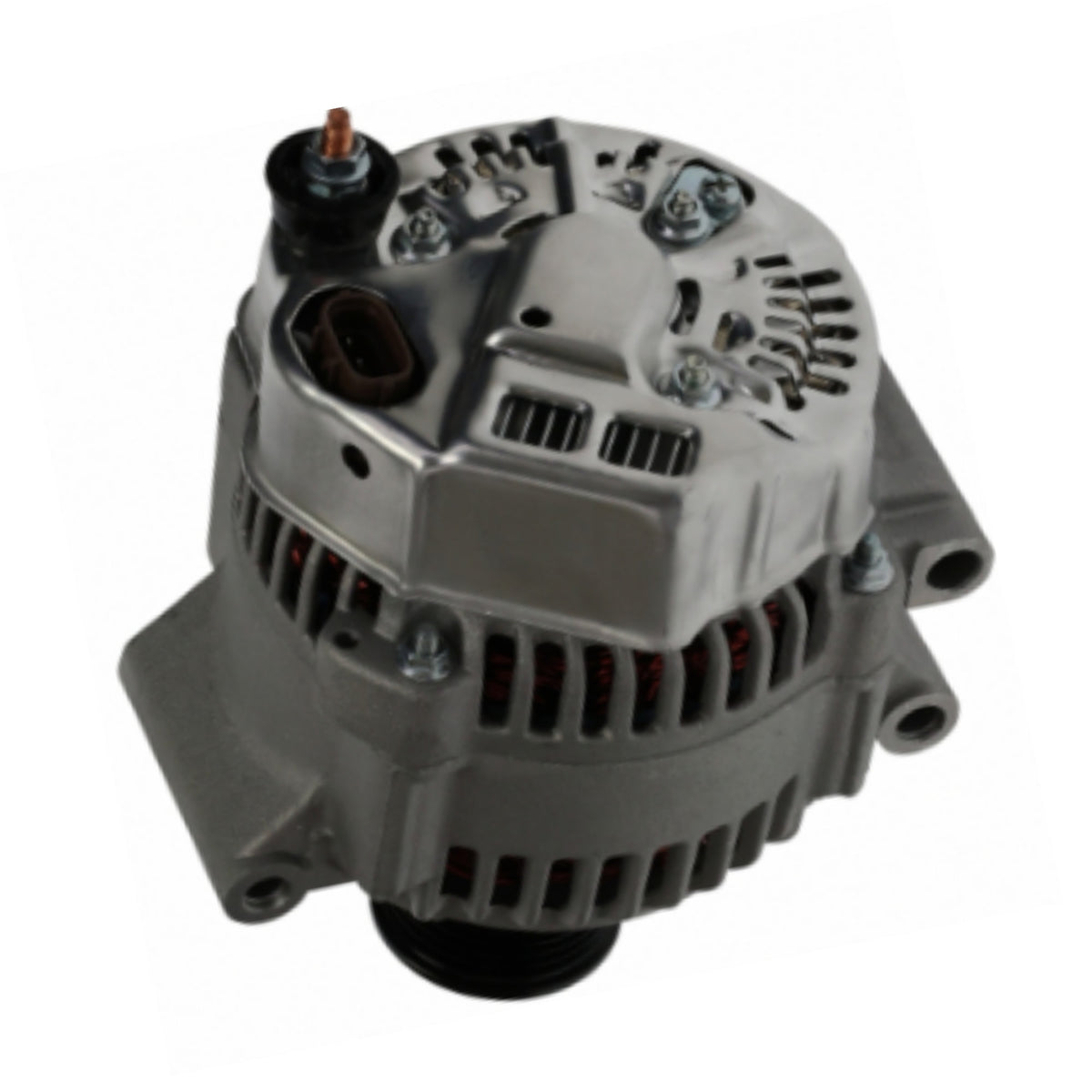

Alternator 2002-08 Mini Cooper S 102211-2230 -2231 -2232 -2233 -2234 - 11049

Mini Cooper S L4 1.6L 1600cc W11B16A 2002-2008 with 105A Denso
Mini Cooper S L4 1.6L 1598cc N14B16A 2002-2008 with 105A Denso

Alternator's Manufacturer and factory #s
BMW 12-31-7-515-030, 12-31-7-515-030-02, 12317515030
Bosch Remanufactured AL9434X
Denso 102211-2230, 102211-2231, 102211-2232, 102211-2233, 102211-2234
ERA 209302
Excel 10773
Hollander 60844
Land Rover YLE102340
Lester 11049

Manufacture DENSO
Amperage Rating 105
Decoupled Or Clutch Pulley No
Design IR/IF
Fan Type Internal
Ground Type Negative
Oe Manufacturer DENSO
Plug Clock Rear View Main Mounting Ear At 6 O Clock 12
Plug Code 316
Plug Type 316
Pulley Belt Type Serpentine
Pulley Diameter 49
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

Bearings 53514 55222
Brush Holder Assy 74909203
Brush 7390901 W035-04

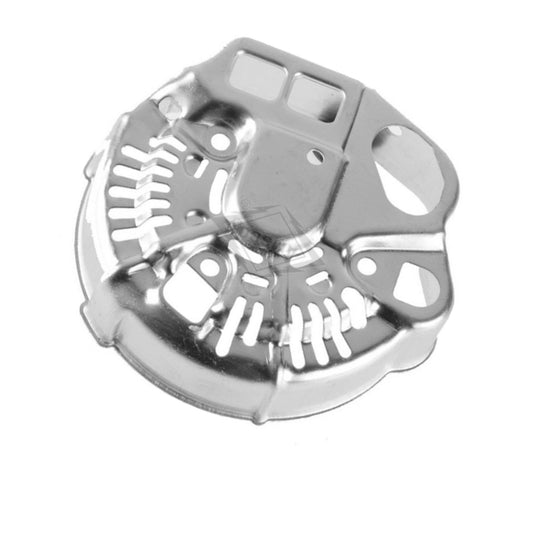

Cover 84909050 W015-22
Insulator 92909518 W115-139
Plug 9801316
Pulley 79001006 79909075 W055-102

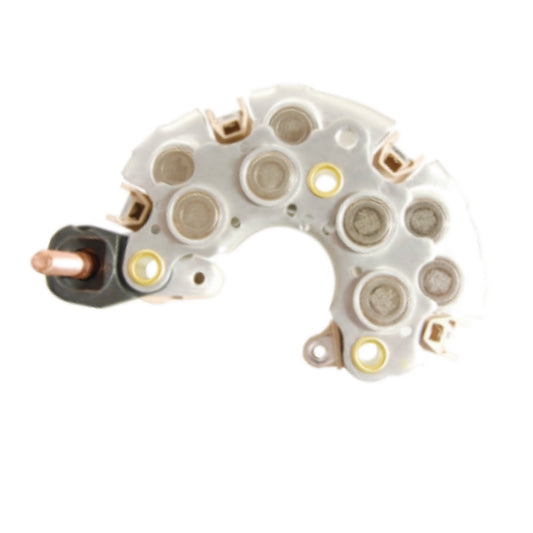

Rectifier 77904069 W065-219

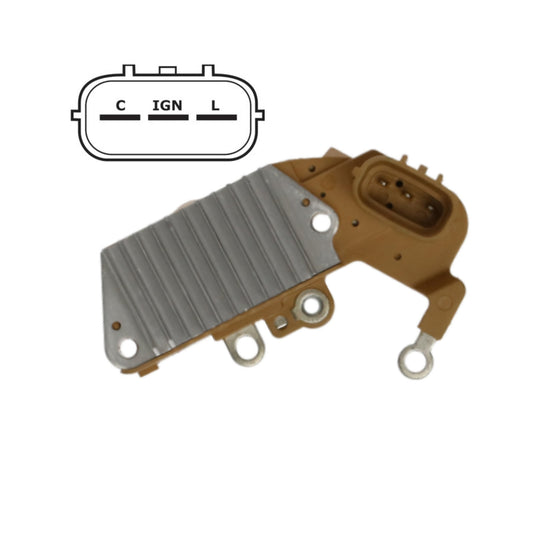

Regulator 80904485 W085-301 IN330
Retainer, Bearing 8590900
Slip Ring 7190904 W165-00L
Stator 72908502 72908522 W105-13
Test Lead 9800HO
RETAINER SCREW-M4.5x18L W115-204
REG SCREW-M4x0.7x25 W115-206
ROTOR BEARING SPACER-FLAT W115-207
ROTOR BEARING COVER-TOP W115-208
PULLEY NUT-14x1.5 FLANGE OE 1 W115-252N
INSULATOR STATOR LEAD-GRAY W115-36
BRUSH HOLDER INSULATOR SEAL W115-37
NUT 6x1.0mm 10mm HEX W115-39
BRUSH HOLDER COVER RING W115-41
WAVE WASHER RETAINING RING W115-45
BEARING RETAINER-61mm OD W115-54
RECT GROUND STRAP-CHRYSLER W115-59
BRUSH/RECT SCREW 4mm W115-81
BRUSH HOLDER SEAL-13184 W115-96
SRE FRAME-11049 MINI W125-68
DE FRAME-11049 MINI W135-80
WIRE REPAIR HARNESS-OVAL PLUG W145-36
BRUSH HOLDER W155-10 39-8203
SLIP RING COLLAR-(1PC) W165-04
