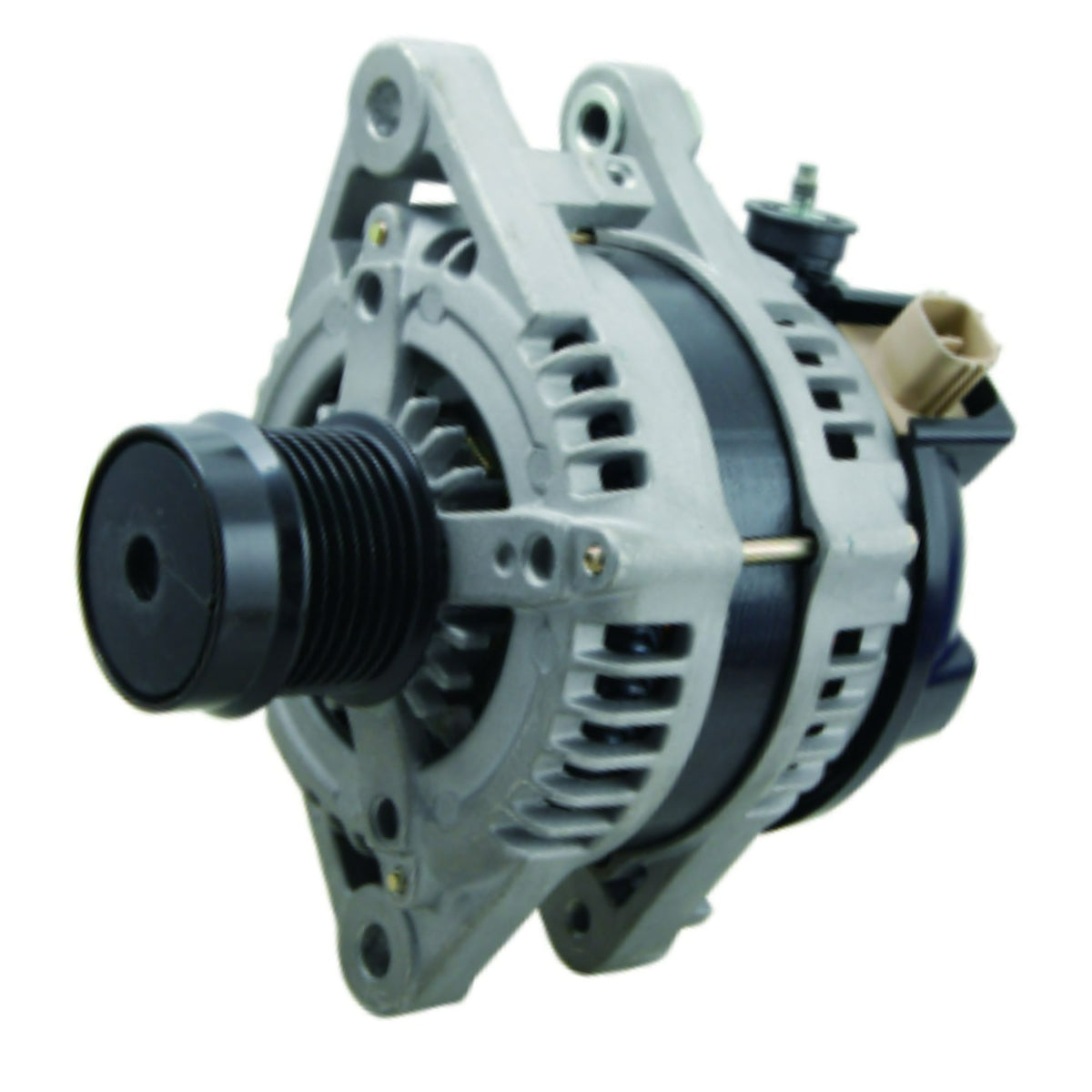

Alternator 2006-2008 Toyota RAV4 3.5L 150 Amp - 11323

Toyota RAV4 V6 3.5L 3456cc 2006-2008 Towing Package; 150 Amp

Alternator Manufacturer and Factory #s
Denso 104210-2091, 104210-2092, 104210-2090, 104210-4750
Excel 10903
Hollander 50130
Lester 11323
Toyota 27060-31102, 27060-31100, 27060-31101, 27060-31101-84
PIC# 290-5244, 290-5244A, 290-5244D

Manufacture DENSO
Amperage Rating 130
Decoupled Or Clutch Pulley Yes
Design IR/IF
Family 100
Fan Type Internal
Ground Type Negative
Oe Manufacturer DENSO
Plug Clock Rear View Main Mounting Ear At 6 O Clock 4
Plug Code 933
Plug Orientation Side
Plug Type 297
Pulley Belt Type Serpentine
Pulley Diameter 0
Pulley Groove Quantity 7
Pulley Type SC7
Regulator Type Internal
Rotation Direction Clockwise (Right)
Series HAIRPIN
Stator Type Hairpin
Type Alternator
Voltage 12

Alternator Rebuild Kit 11323RK-A

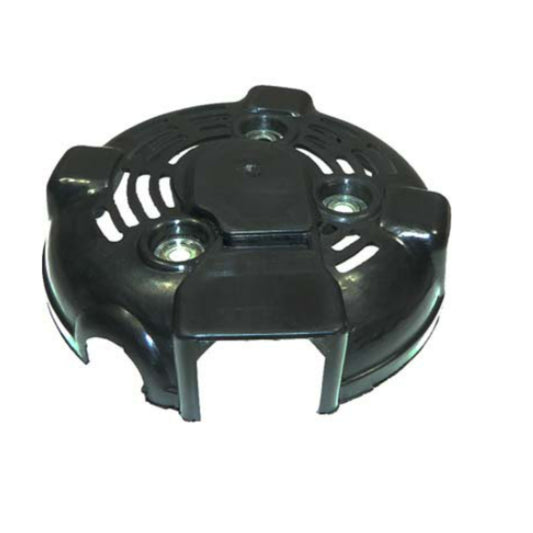

COVER LEXUS 1 W015-65 84909046
6303-2RS C3 BEARING 1 W02X-11-1 54700

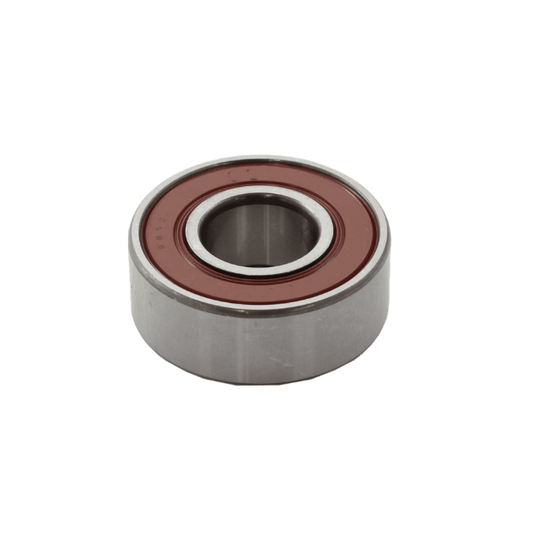

6202 D2RS BEARING 15x35x13mm 1 W02X-20-1 53514
BRUSH-5x7x15mm HP 2 W035-04A

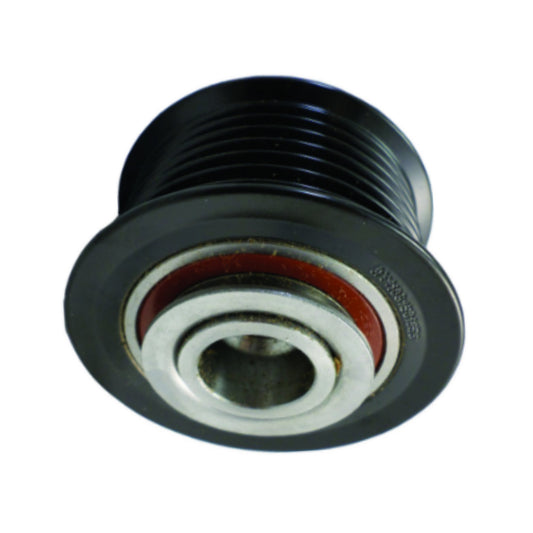

CL PULLEY 7GRV53mm 1 W055-107, W055-107A, W055-107N
RECT TOYOTA M6B+ 1 W065-198, W065-198A, TRN-7427, TRN-7422, 77904062
INT REG RAV4 RLO 1 W085-276, T7302, 80904455 80904457
LITENS DECOUPLER CAP-47.6mm 1 W112-30N
B+ INSULATOR TOYOTA 1 W115-173
B+ POST 6mm SIDE 1 W115-175
B+ RETAINING NUT-6mm 17.6 L 1 W115-180
BRG RETAINER SCREW 4x.18mm 4 W115-205

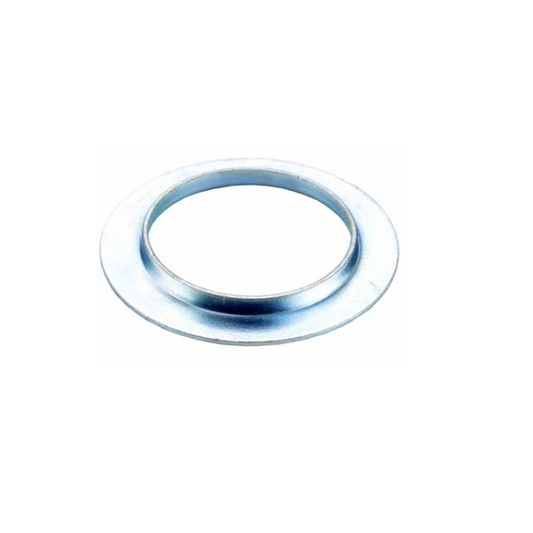

ROTOR BEARING COVER-TOP 1 W115-208

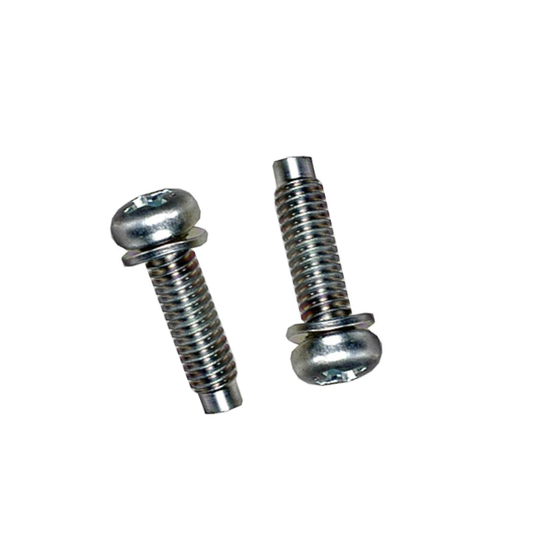

BRUSH HOLDER SCREW-M4x14 4 W115-44
WAVE WASHER RETAINING RING 1 W115-45
BEARING RETAINER-53mm OD 1 W115-51
BRUSH/RECT SCREW 4mm 1 W115-81
SRE FRAME TOYOTA 1 W125-102 75909281
DE FRAME TOYOTA 1 W135-102 76909241

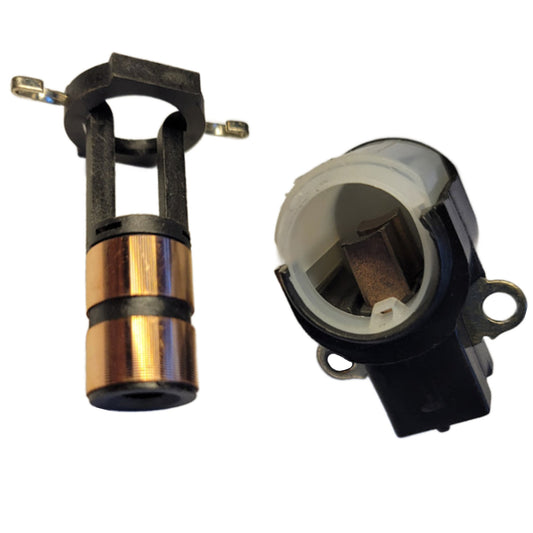

BRUSH HOLDER- 12V 1 W155-24 74909206
SLIP RING COLLAR-(1PC) 1 W165-04

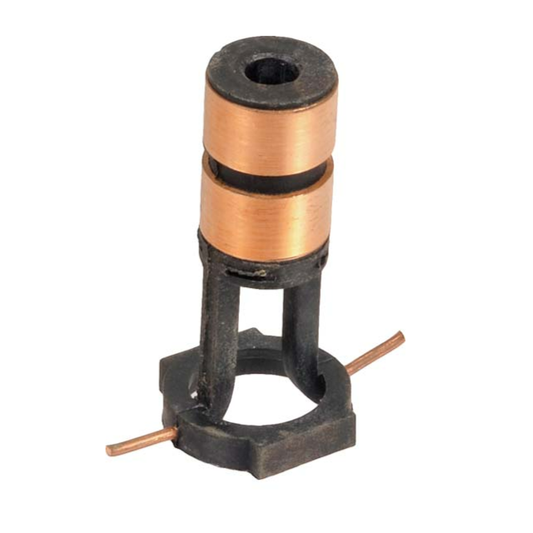

SLIP RING- 1 W165-11
