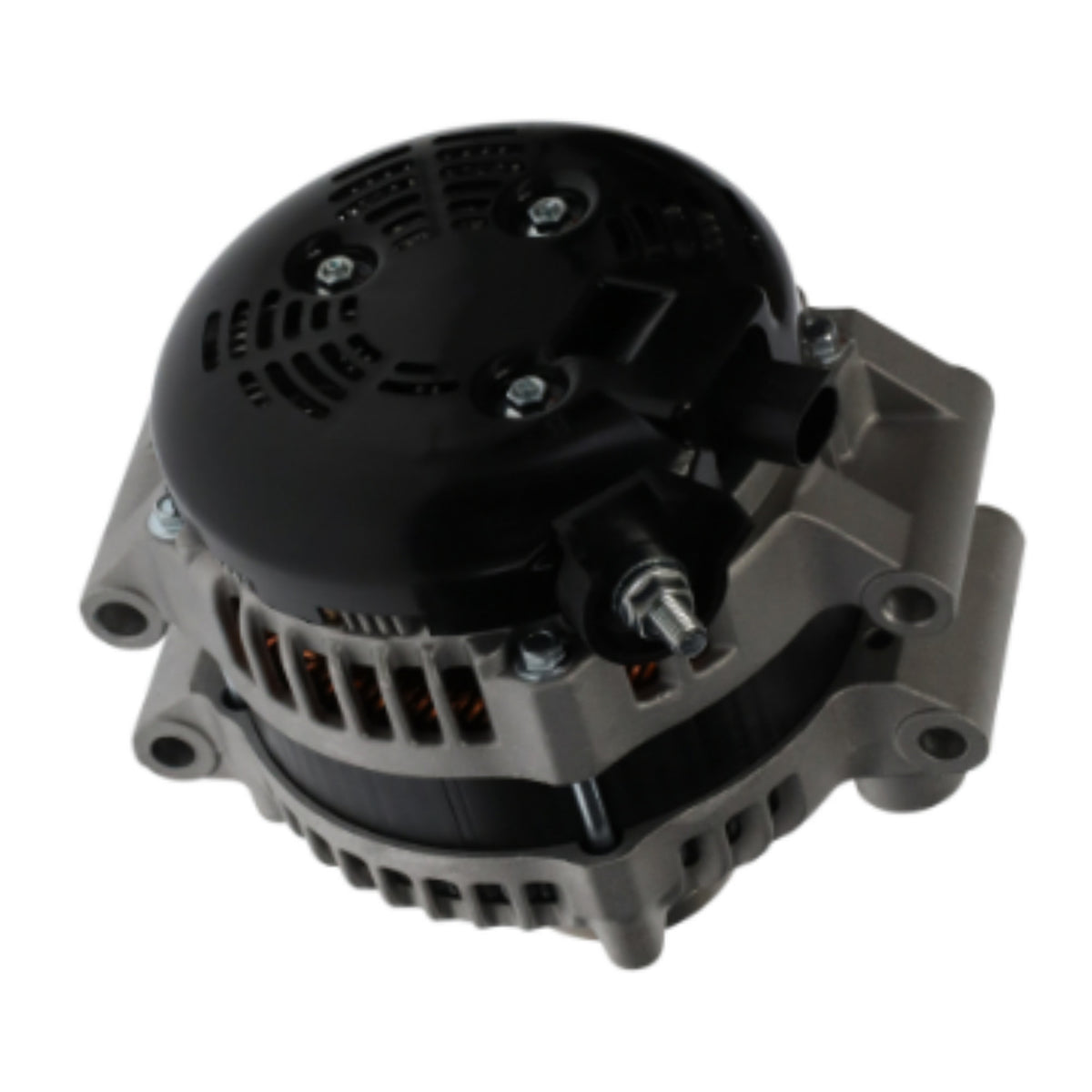

Alternator 170 Amp 2009-2016 BMW Z4 3.0L Denso 104210-6030, 104210-6032 - 11366

BMW Z4 L6 3.0L 2009-2016

Alternator Manufacturer and Factory #s
BMW 12-31-7-558-167, 12-31-7-558-218
Denso 104210-6030, 104210-6032
Wilson 90-29-5752
Lester 11366

Product Attributes
Manufacture DENSO
Amperage Rating 170
Decoupled Or Clutch Pulley Yes
Family 100
Fan Type Internal
Oe Manufacturer DENSO
Plug Clock Rear View Main Mounting Ear At 6 O Clock 12
Plug Orientation Side
Plug Type 64
Pulley Belt Type Serpentine
Pulley Groove Quantity 7
Regulator Type Internal
Rotation Direction Clockwise (Right)
Stator Type Hairpin
Voltage 12

Alternator Rebuild Parts
6202 D2RS BEARING-15x35x13mm 1 W02X-20-1 53514 10-2021-4

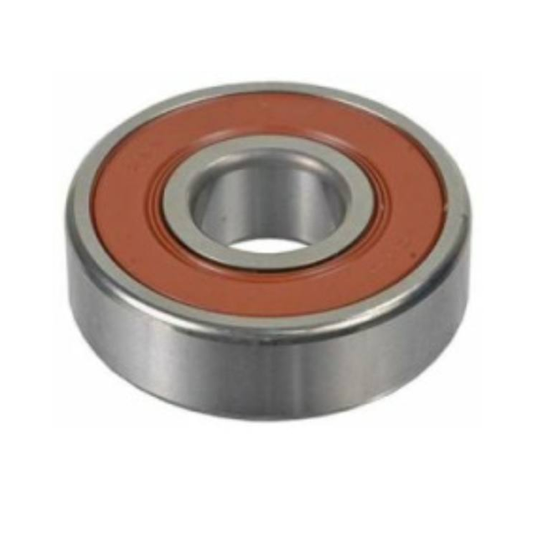

333 2RS BEARING-17x52x16mm 1 W02X-49-1 55222 10-3042-4
Brushes-5x7x15mm HP 2 W035-04A 38-8201x2

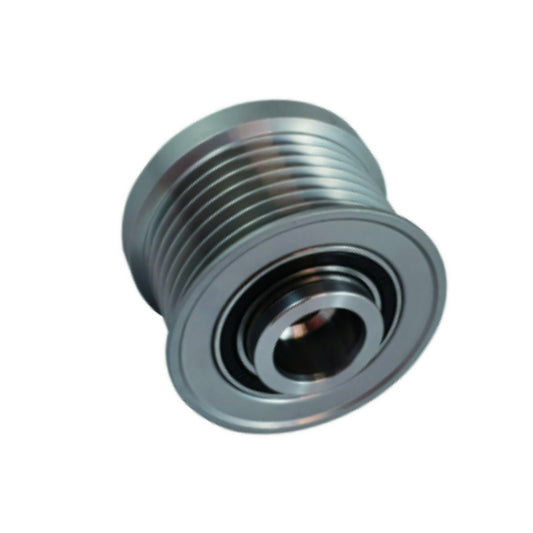

DCP PULLEY BMW OE 1 W055-198N 79909148

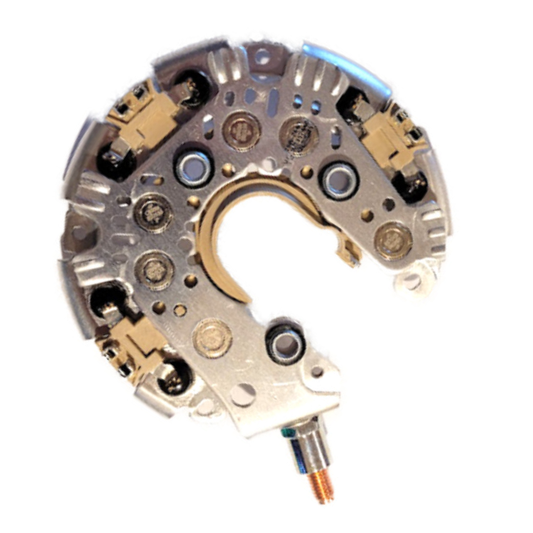

Rectifier 1 W065-236 W065-236A

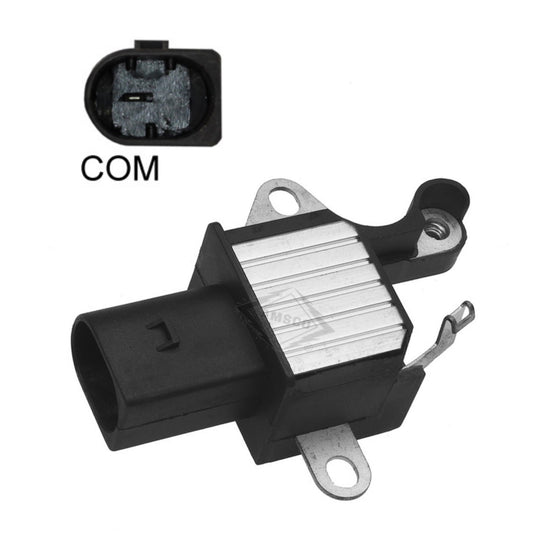

Regulator 1 W085-451 80904756
LITENS DECOUPLER CAP-47.6mm 1 W112-30N

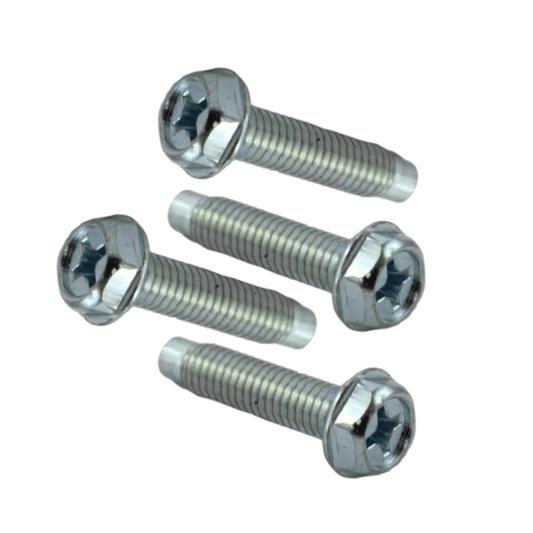

BRG RETAINER SCREW-M4.5x18L 4 W115-204
ROTOR BEARING COVER-TOP 1 W115-208
DENSO ALT BRUSH SPRING-LATE 2 W115-219
BRUSH HOLDER SCREW-M4x14 4 W115-44

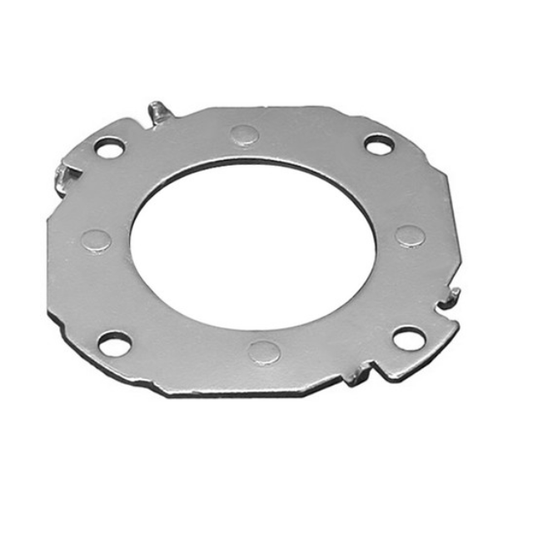

BEARING RETAINER-61mm OD 1 W115-54
BRUSH/RECT SCREW 4mm 2 W115-81
BRUSH HOLDER-11063 12V 1 W155-24
SLIP RING-11032 1 W165-11
