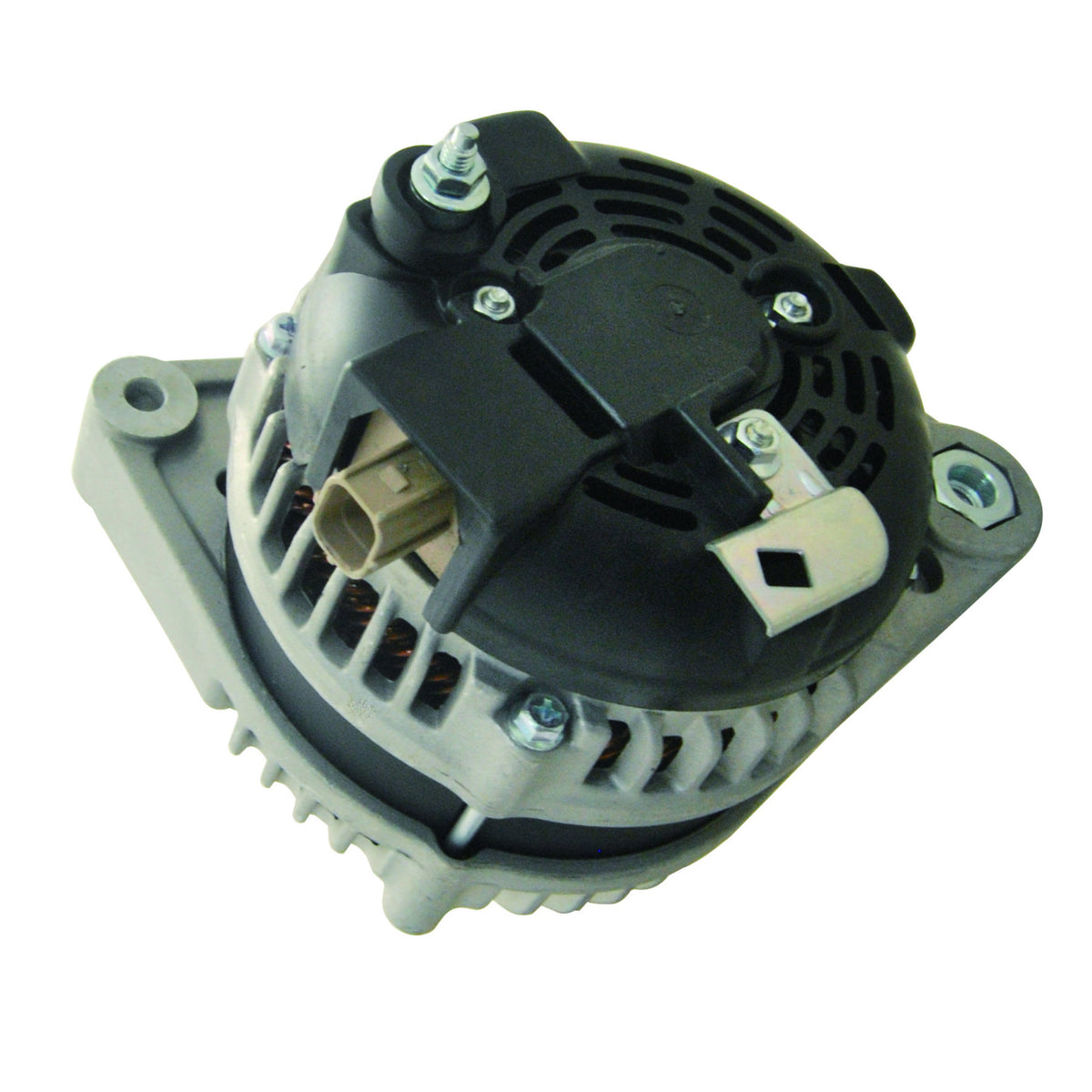

Alternator 2009-2014 Acura TSX 2.4L 2008-2012 Accord 2.4L 130A Denso 104210-5890 - 11390

Acura TSX 2009-2014 L4 2.4L 2354cc
Honda Accord 2008-2012 L4 2.4L 2354cc

Alternator Manufacturer and Factory #s
Acura 06311-R50-505RM, 31100-R40-A01, 31100-R40-A01RM, CSF89; Bosch Aftermarket AL1310N (New), AL1310X (Reman)
Bosch Service Europe 0-986-UR6-054, Denso 104210-5890; 210-0644 Honda 06311-R40-505RM, 06311-R50-505RM, 31100-R40-A01, 31100-R40-A01RM, CSF89, Lester 11390

Manufacture DENSO
Amperage Rating 130
Decoupled Or Clutch Pulley No
Design IR/IF
Fan Type Internal
Ground Type Negative
Mfr Series HAIRPIN
Oe Manufacturer DENSO
Plug Clock 11
Plug Clock Rear View Main Mounting Ear At 6 O Clock 11
Plug Code 298
Plug Type 298
Pulley Belt Type Serpentine
Pulley Diameter 60
Pulley Groove Od 60
Pulley Groove Quantity 7
Pulley Type S7
Regulator Type Internal
Rotation Direction Clockwise (Right)
Series HAIRPIN
Stator Type Hairpin
Type Alternator
Voltage 12

Alternator Rebuild Kit 11390RK-A
COVER-13980 W015-53 46-82579
6303-2RS C3 BEARING W02X-11-1 54700 6-303-4W
6202 D2RS BEARING-15x35x13mm W02X-20-1 53514 10-2021-4W
BRUSH-5x7x15mm HP W035-04A 38-8201x2

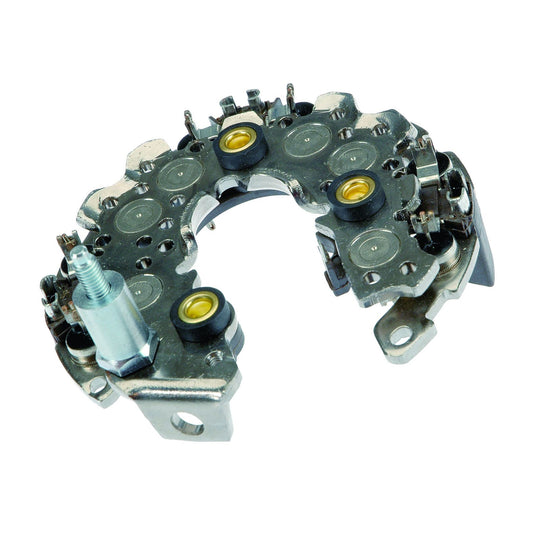

Rectifier W065-237 77904047
Regulator CIGLFR 1 W085-325A IN6366
ROTOR BEARING COVER-TOP 1 W115-208 46-82700
B+ INSULATOR-11390 HONDA 1 W115-221
BRUSH HOLDER SCREW-M4x14 4 W115-44
WAVE WASHER RETAINING RING W115-45
BEARING RETAINER-53mm OD W115-51
BRUSH/RECT SCREW 4mm W115-81 85-1205
SRE FRAME-11390 HONDA 1 W125-106 22-8250
DE FRAME-11390 HONDA W135-106 21-8288
BRUSH HOLDER 12V W155-24 39-8206
SLIP RING 1 W165-11 28-82854
