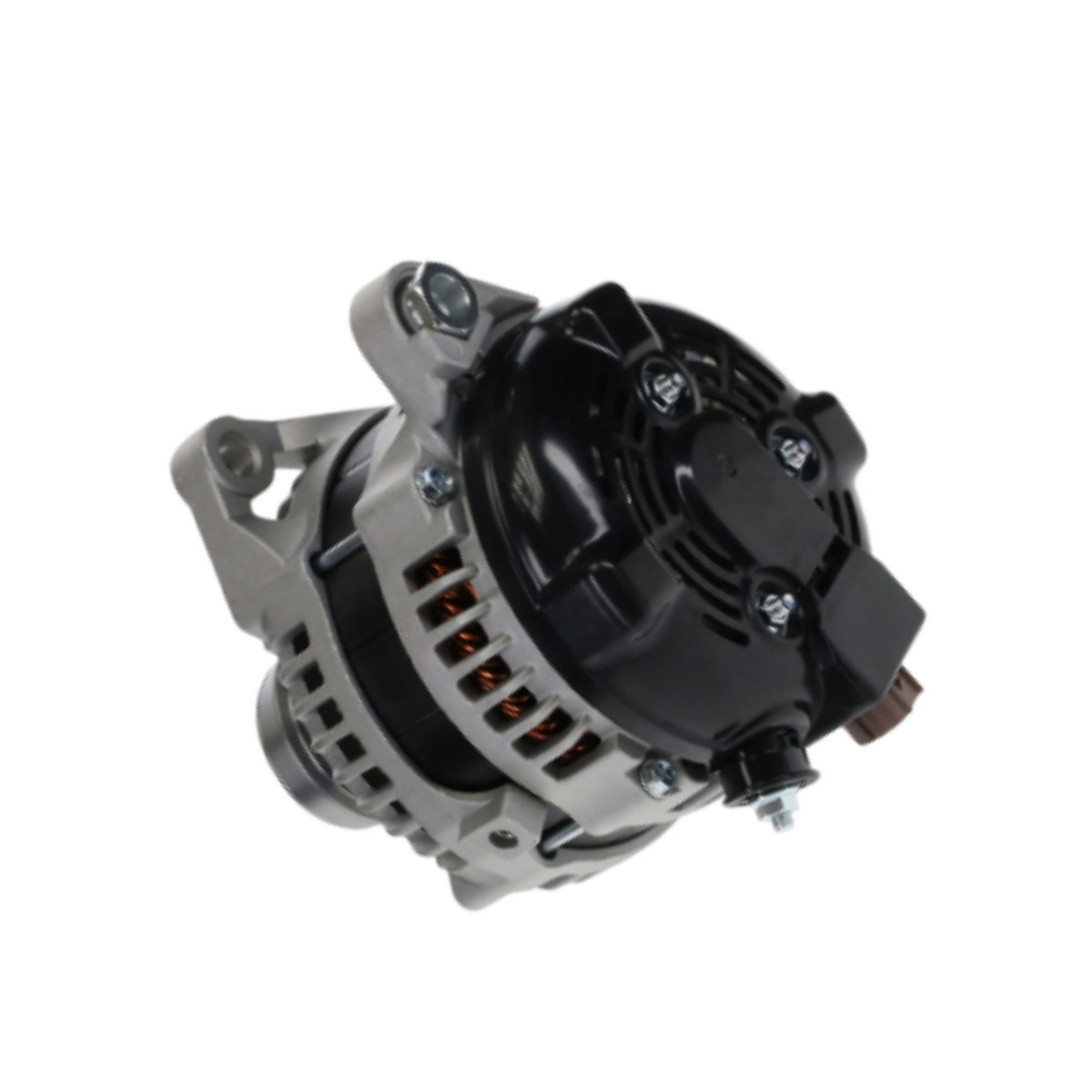

Alternator 2.5L 2012-2015 Camry, 2009-2012 RAV4, 2011-2016 Scion tC- 11402

Scion tC L4 2.5L 2011-2016
Toyota Camry L4 2.5L 2012-2015
Toyota RAV4 L4 2.5L 2009-2012

Alternator Manufacturer and factory #s
Bosch Remanufactured AL3368X, AL3379X, AL3366X
Denso 104210-2270, 104210-2340, 104210-2341, 104210-2344, 104210-8431 104210-8432
Excel 11001
Scion 27060-36010, 27060-36011
Toyota 27060-36010, 27060-36011, 27060-0V010
J&N 400-52452
Beck Arnley 186-1395
PIC Picture ID 290-5543, 290-5543A, 290-5546
Remy Light Duty 12946
Wilson 90-29-5726
MPA 15026




Alternator 11402 Parts List
Brush Holder Assy 74909206 39-8206 W155-24
Cover 84909046 46-82507 W015-65
Decoupler Pulley 79909106 24-82289-4 W055-129N
Frame, DE 76909253 21-8292 W125-142
Frame, SRE 75909234 22-8254 W135-130

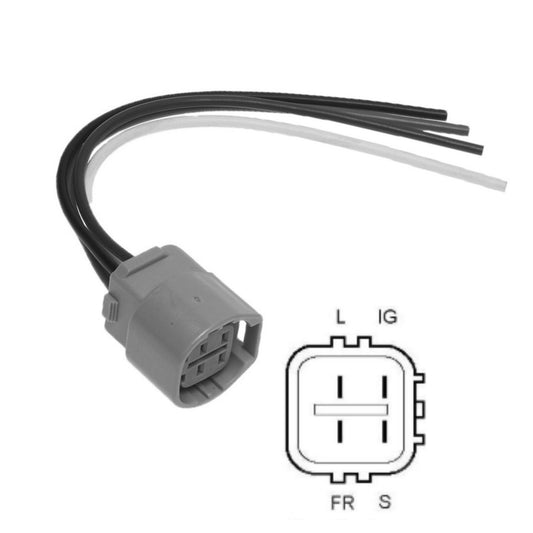

Plug Code 9801917 9801295

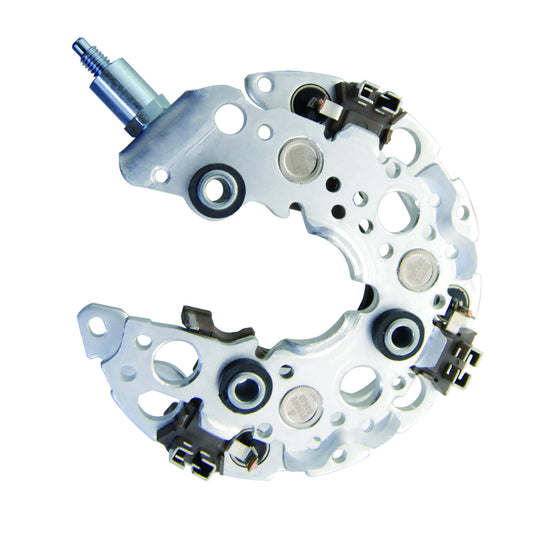

Rectifier 77904071 77904043 INR427 INR430 TRN-7430

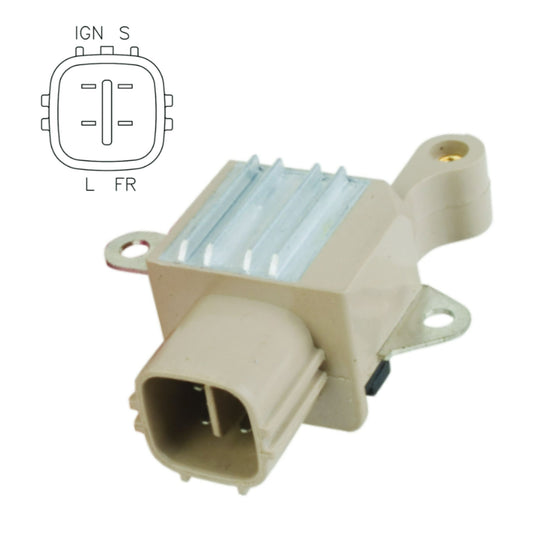

Regulator 80904446 80904749 IN6301
Slip Ring 7190904B 28-82854 W165-11
Stator 72908513
Rectifier Cover 46-82507 W015-65
B+ Retaining Nut W115-180
Rotor Bearing Shield/Cover W115-208
Brush Holder Screw x 4 W115-44
Wave Washer Retaining Ring W115-45
Brush Rectifier Screw W115-81
