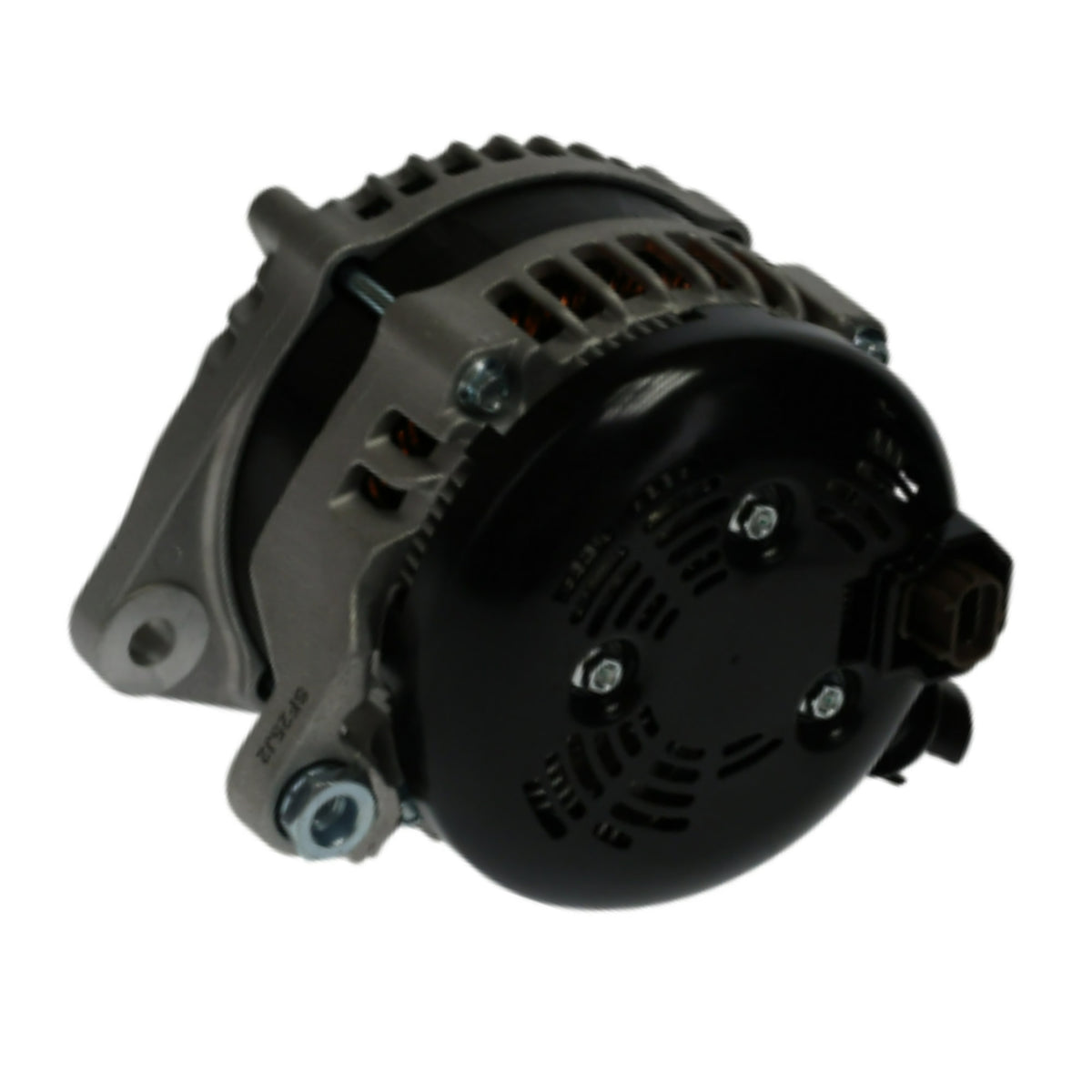

Alternator 2012-2014 F150 5.0L w/ 220A 104210-6660 ,104210-6270 - 11532

Ford F-150 V8 5.0L 4951cc 302cid 2012-2014 WITH 220 Amp

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL7685X, AL7783X
Denso 104210-6660, 104210-6270
Ford CL3T-10300-AA, CL3Z-10346-A, AL3T-10300-CA, AL3Z-10346-C, AL3T-CA
Lester 11532
Lester Old 11679
Motorcraft GL-8673, GL-8647


TYPE Alternator
AMPERAGE 200 220
DESIGN IR/IF
MFR DENSO
MFR SERIES HAIRPIN
PLUG ORIENTATION REAR
PULLEY DESIGN S6
ROTATION CW
VOLTAGE 12

Alternator Parts List
FORD REPAIR LEAD-6G 1 9801337 F14-03
REGULATOR-DENSO TADITEL 1 80904528 T7378, W085-353A, IN6368
COVER 1 84909091, 84909091A W015-103
6202 D2RS BEARING-15x35x13mm 1 53514 W02X-20-1
333 2RS BEARING-17x52x16mm 1 55222 W02X-49-1
BRUSHES-5x7x15mm 7390901 2 W035-04A
RECTIFIER 1 77904092 W065-258
RETAINER SCREW-M4.5x18L 1 W115-204
ROTOR BEARING COVER-TOP 1 W115-208
DENSO ALT BRUSH SPRING-LATE 2 W115-219
B+ INSULATOR 1 W115-238
BRUSH HOLDER SCREW-M4x14 4 W115-44
WAVE WASHER RETAINING RING 1 W115-45
BEARING RETAINER-61mm OD 1 W115-54
BRUSH/RECT SCREW 4mm 2 W115-81
BRUSH HOLDER 1 74909206 39-8206 W155-24
SLIP RING 1 7190904B 28-82854 W165-11
