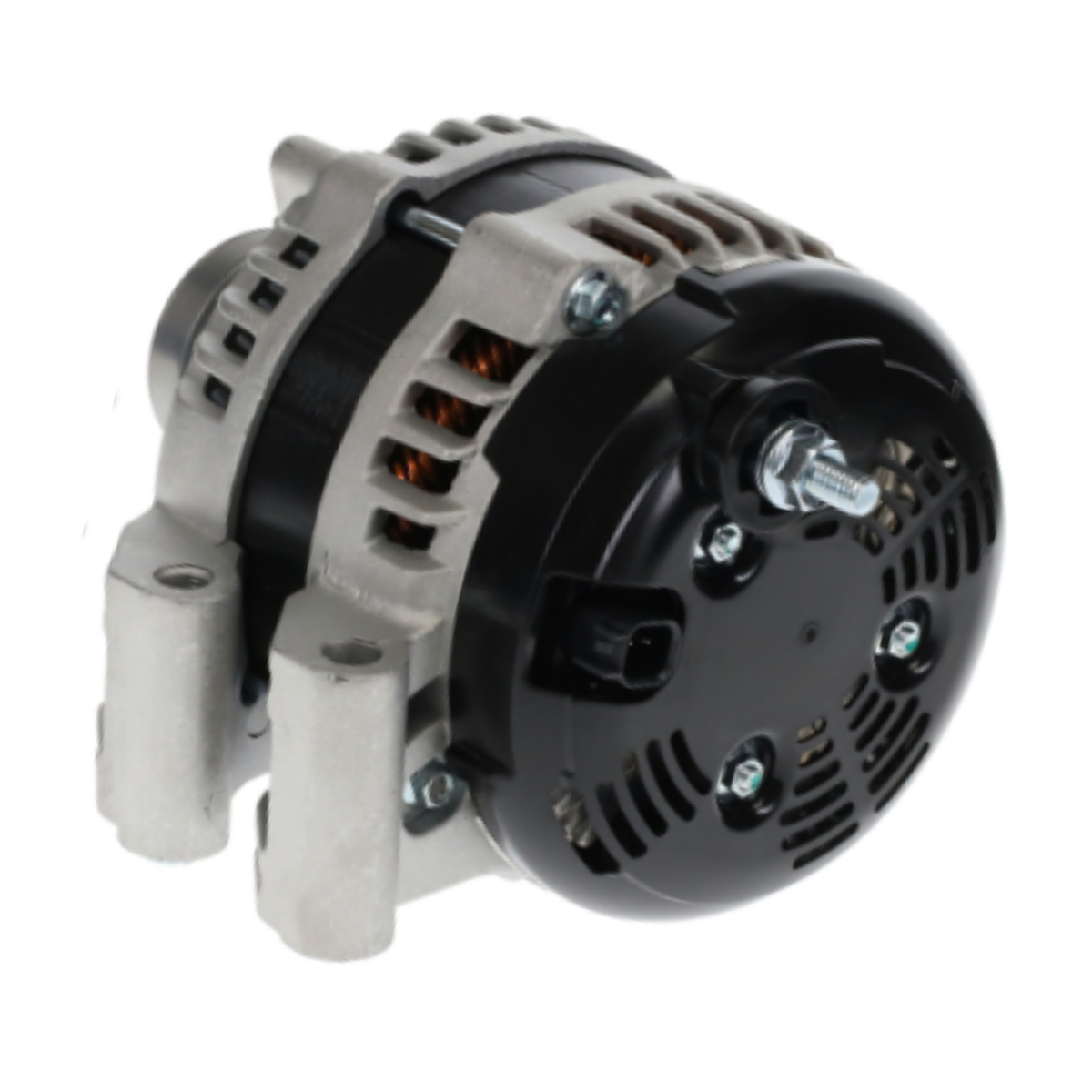

Alternator 180 Amp 3.6L Charger Challenger Durango Grand Cherokee Ram - 11598

Dodge Chrysler 300 V6 3.6L 2011-2023 180 Amp option
Dodge Challenger V6 3.6L 2015-2023 180 Amp option
Dodge Charger V6 3.6L 2011-2023 180 Amp option
Dodge Durango V6 3.6L 2011-2020 180 Amp option
Jeep Grand Cherokee V6 3.6L 2011-2020 180 Amp option
Ram 1500 V6 3.6L 2013-2015 180 Amp option

Alternator Manufacturer and Factory #
Bosch Remanufactured AL6490X
Chrysler 4801778AF, 4801778AI, P04801778AF, R4801778AF, 56029789AA, R6029789AA,04801778AI, 4801778AI, P04801778AI
Denso 421000-7040, 421000-7041, MX421000-7041, 421000-7200, 421000-7042
Lester 11598
PIC# 290-5619, 290-5725

TYPE Alternator
AMPERAGE 180
DESIGN ER/IF
MFR DENSO
MFR SERIES HAIRPIN
PLUG CLOCK 6
PLUG CODE 378
PLUG ORIENTATION REAR
PULLEY DESIGN SD6
PULLEY GROOVE OD 51.8
ROTATION CW
VOLTAGE 12

COVER DODGE 1 W015-108 W015-119 84909096
6202 D2RS BEARING-15x35x13mm 1 W02X-20-1 53514
333 2RS BEARING-17x52x16mm PFI 1 W02X-49-1 55222
ALT BRUSH-5x7x15mm HP 2 W035-04A 38-8201x2
CL PULLEY- 6GRV52 1 W055-132, W055-132N, W055-164N, 79909127 79909095

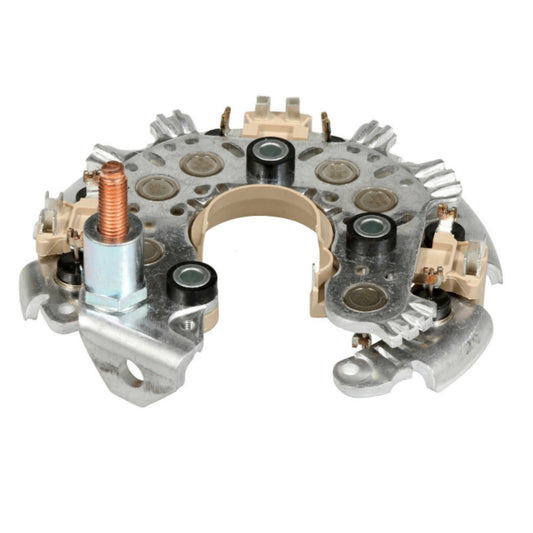

Rectifier 1 W065-266, 77904091 77904266
LITENS DECOUPLER CAP-47.6mm 1 W112-30N
FIELD TERMINAL BLOCK 1 W115-203 99901007
Plug 9801378
RETAINER SCREW-M4.5x18L 4 W115-204

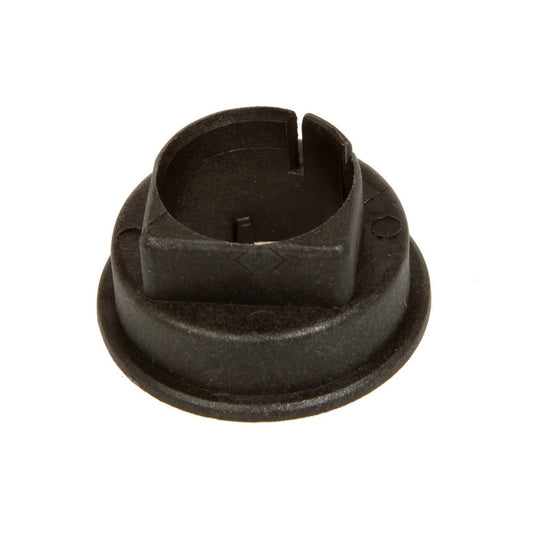

B+ INSULATOR DODGE 1 W115-241, 92909537
BRUSH HOLDER SCREW-M4x14 4 W115-44
BEARING RETAINER-61mm OD 1 W115-54
BRUSH/RECT SCREW 4mm 3 W115-81
SRE FRAME DODGE 1 W125-146, 75909242
DE FRAME DODGE 1 W135-134, 76909263
BRUSH HOLDER 12V 1 W155-24, 74909205 74909215
SLIP RING 1 W165-11
Rotor 70905121
