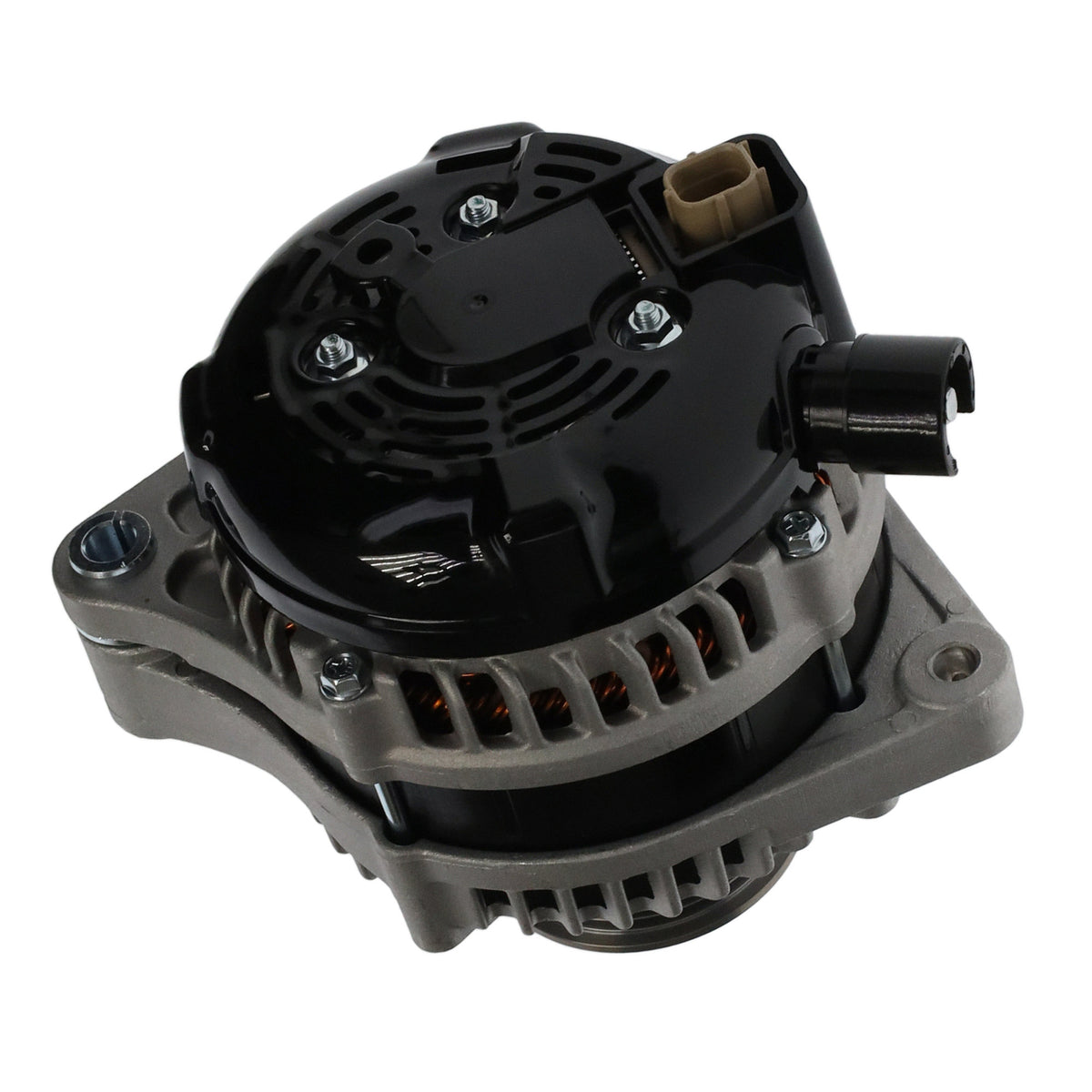

Alternator for 2011-2012 Honda Accord 3.5L 104210-1600 - 11600

Honda Car
Accord V6 3.5L J35Z2 2011-2012
Accord Crosstour V6 3.5L 2011
Crosstour V6 3.5L 2012

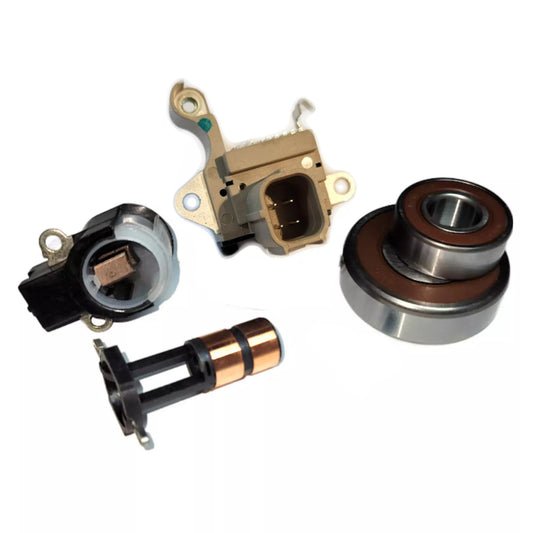

Alternator Rebuild Kit 11600RK-A
Bosch Aftermarket AL1320X (Reman)
Denso 104210-1600, TN104210-1600, 104211-160, 104211-1600
Honda 06311-R70-506RM, 31100-R70-A11, 31100-R70-A11RM, CSJ60
Lester 11600
PIC# 290-5220B

Manufacture DENSO
Amperage Rating 120
Decoupled Or Clutch Pulley Yes
Design IR/IF
Family 100
Fan Type Internal
Mfr Series HAIRPIN
OEM Manufacturer DENSO
Plug Clock 11:30
Plug Clock Rear View Main Mounting Ear At 6 O Clock 11
Plug Code 298
Plug Orientation Rear
Pulley Belt Type Serpentine
Pulley Diameter 65.4
Pulley Groove Od 65.4
Pulley Groove Quantity 6
Pulley Type SD6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Series HAIRPIN
Stator Type Hairpin
Type Alternator
Voltage 12

Alternator Rebuild Kit 11600RK-A
COVER W015-97 84909083
6303-2RS C3 BEARING W02X-11-1 54700
6202 D2RS BEARING-15x35x13mm W02X-20-1 53514
BRUSH-5x7x15mm HP W035-04A

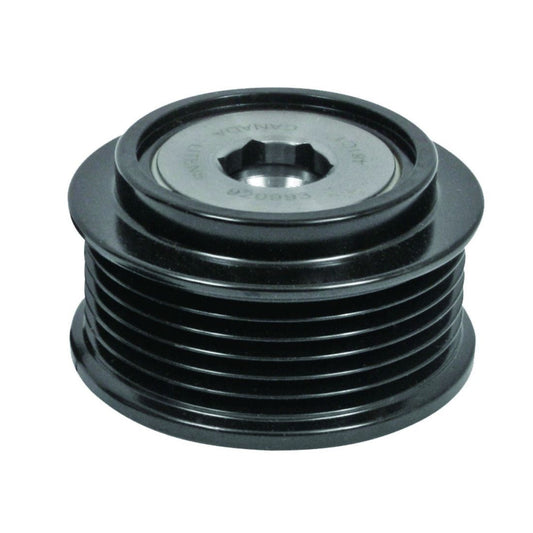

DCP PULLEY- 6GRV65 OE W055-131N 79909126
RECTIFIER W065-217 W065-217A TRN-7442 79904193
REGULATOR CIGLFR W085-326 W085-326A T7365 80904698
Plug 9801298
LITENS DECOUPLER CAP-47.6mm 1 W112-30N
BRG RETAINER SCREW 4x.18mm W115-205
ROTOR BEARING COVER-TOP W115-208
B+ INSULATOR HONDA W115-222
BRUSH HOLDER SCREW-M4x14 W115-44
WAVE WASHER RETAINING RING W115-45
BEARING RETAINER-53mm OD W115-51
BRUSH/RECT SCREW 4mm W115-81
BRUSH HOLDER 12V W155-24
SLIP RING W165-11 7190904B
PULLEY TOOL-DECOUPLER 17mm HEX 1 W19-08
