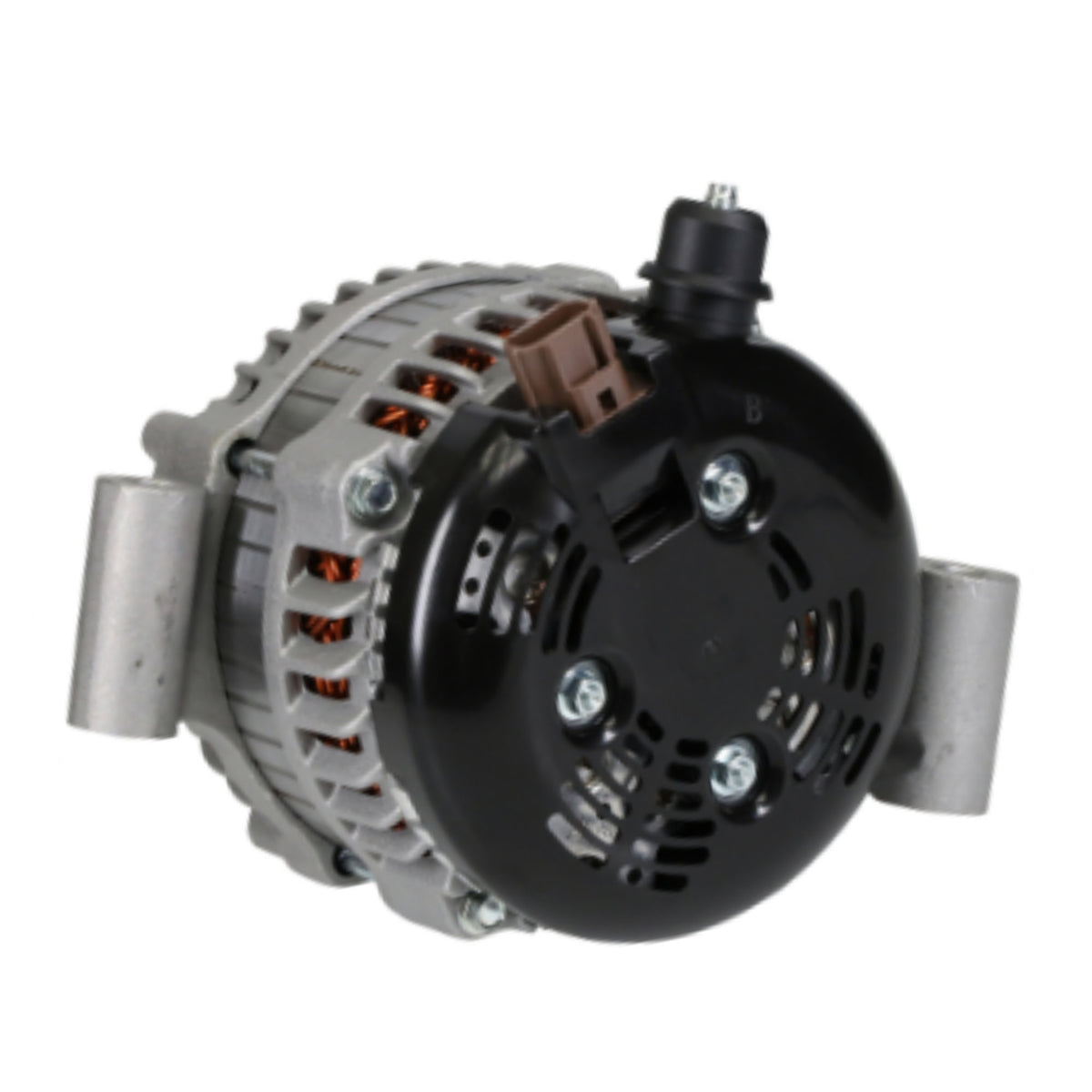

Alternator 2011-2014 Ford F150 6.2L w/200A 104210-6490 - 11620

Ford F-150 V8 6.2L 2011-2014 with 200 Amp 104210-6490

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL7679X
Denso 104210-6490
Ford BL3T-10300-CA, BL3Z-10346-B, BL3Z-10346-C
Lester 11620
PIC Old 250-513

TYPE Alternator
AMPERAGE 200
DESIGN IR/IF
MFR DENSO
MFR SERIES HAIRPIN
PLUG CLOCK 2
PLUG CODE 337
PLUG ORIENTATION SIDE
PULLEY DESIGN S6
PULLEY GROOVE OD 56.3
ROTATION CW
VOLTAGE 12

Alternator Parts List
REGULATOR 1 80904527 T7343 W085-299

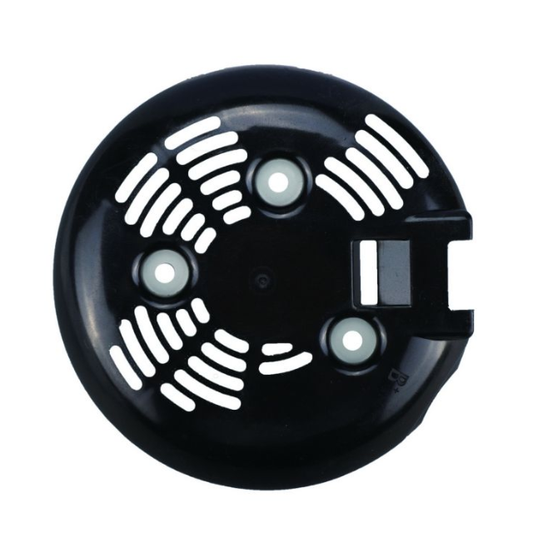

COVER 1 W015-112
6303-2RS C3 BEARING 1 54700 W02X-11-1
6202 D2RS BEARING-15x35x13mm 1 53514 W02X-20-1
Brushes-5x7x15mm HP 1 38-8201x2 W035-04A
Rectifier 1 W065-258 77904261 INR440
RETAINER SCREW 4x.18mm 1 W115-205
ROTOR BEARING COVER-TOP 1 W115-208
BRUSH SPRING-LATE W115-219
B+ INSULATOR 1 W115-237
BRUSH HOLDER SCREW-M4x14 1 W115-44
WAVE WASHER RETAINING RING 1 W115-45
BEARING RETAINER-53mm OD 1 W115-51
BRUSH/RECT SCREW 4mm 1 W115-81
BRUSH HOLDER 1 39-8206 74909206 W155-24
SLIP RING 1 28-82854 W165-11
