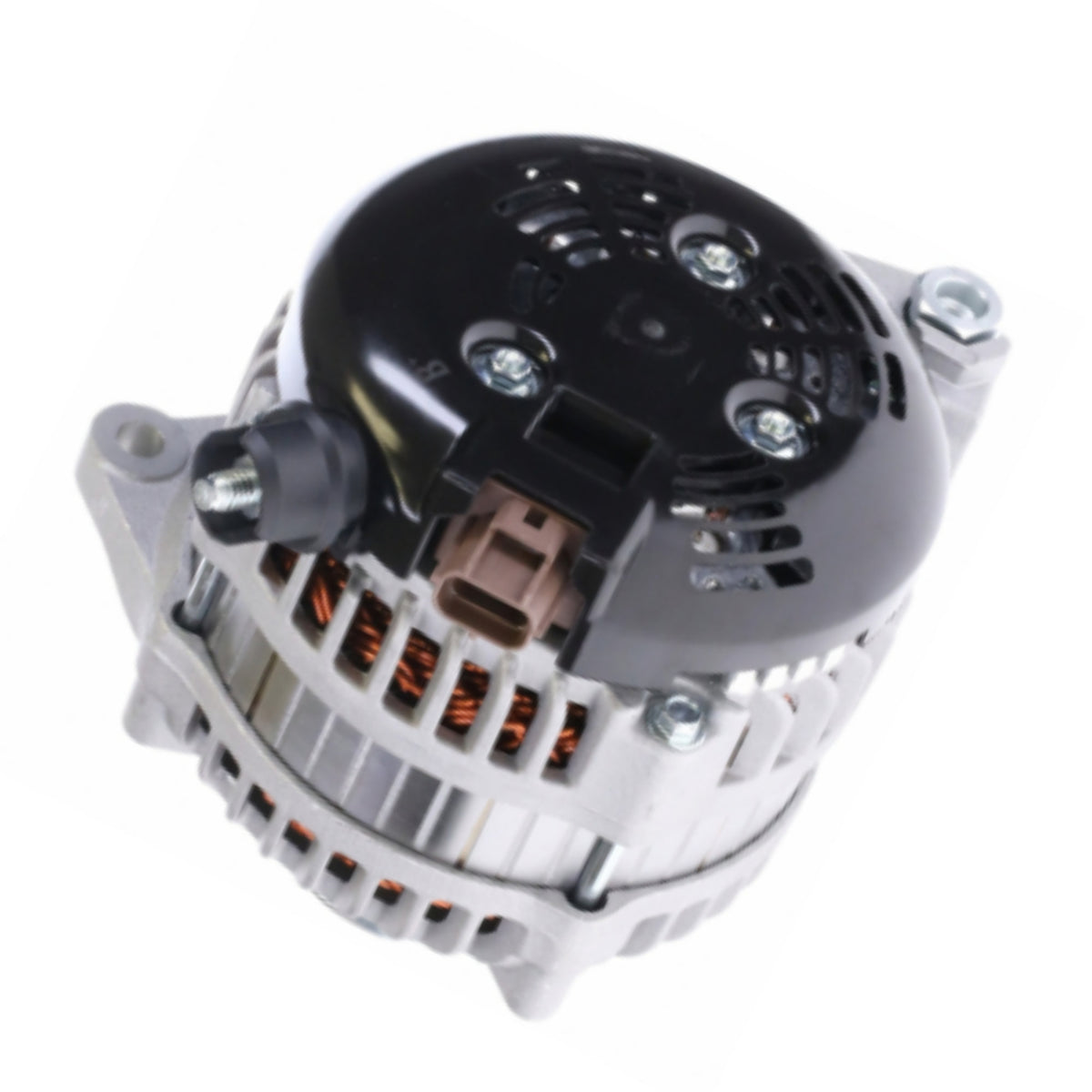

Alternator 2011 Ford F150 3.5L 3.7L w/ 225 Amp 104210-6340 - 11630

Ford Truck
F-150 V6 3.5L 213cid VIN T 2011 w/ 225 Amp 104210-6340
F-150 V6 3.7L 227cid VIN M 2011 w/ 225 Amp 104210-6340

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL7786X
Denso 104210-6340
Ford BL3Z-10346-A, BL3T-10300-BC
Lester 11630
Motorcraft GL-8648
PIC Old 250-512
Pic 290-5664

TYPE Alternator
AMPERAGE 225
DESIGN IR/IF
MFR DENSO
MFR SERIES HAIRPIN
PLUG CLOCK 11
PLUG CODE 337
PLUG ORIENTATION SIDE
PULLEY DESIGN S6
ROTATION CW
VOLTAGE 12

Alternator Parts List
REGULATOR 1 T7343 80904477 W085-299
COVER 84909097 W015-112
6202 D2RS BEARING-15x35x13mm 53514 W02X-20-1
333 2RS BEARING-17x52x16mm 55222 W02X-49-1
BRUSH-5x7x15mm W035-04A
Rectifier 77904092 W065-258
RETAINER SCREW-M4.5x18L W115-204
ROTOR BEARING COVER-TOP W115-208
DENSO ALT BRUSH SPRING-LA W115-219
B+ INSULATOR 92909539 W115-238
BRUSH HOLDER SCREW-M4x14 W115-44
BEARING RETAINER-61mm OD 1 W115-54
BRUSH/RECT SCREW 4mm W115-81
ALT BRUSH HOLDER W155-24
SLIP RING- W165-11
PULLEY 24-82272
Plug 9801337
Rectifier 77904092
Rotor 70905121
