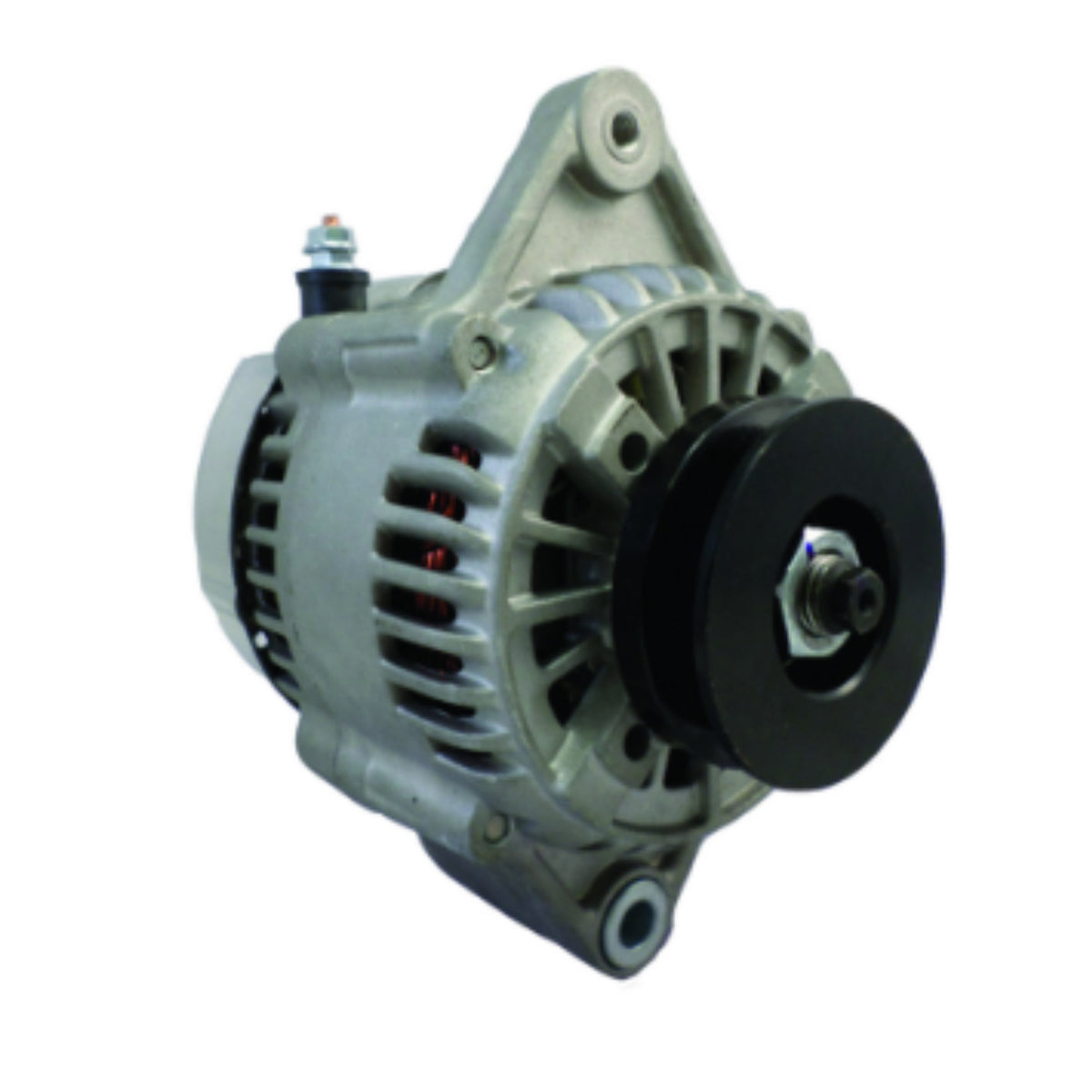

Alternator for Kubota RTV1100 w/ Denso 102211-6060 - 11634

Kubota Utility Vehicle
RTV-X1100C 1123cc 2014-2024
RTV1100 2008-2009
RTV1100 2012
RTV1100 1123cc 2013
RTV1100 898cc 2007
RTV1100 898cc 2010-2011
RTV1100 Kubota D1105-E2-UV 24.8HP Dsl 2007

Alternator Manufacturer and Factory #s
(12 Volt 75 Amp Denso V1 Pulley)
Denso 102211-606, 102211-6060, 102211-6061, 102211-6062
Kubota K7711-61900, K7711-61901, K7711-61902, K7711-61903
Lester 11634 / PIC# 290-5503
Arrowhead AND0447
JN 400-52227
PIC Picture ID 290-5503

Manufacture DENSO
Amperage Rating 75
B+ Term M6x1.00
Fan Type Internal
Ground Type Negative
Mount Type Spool
OEM Manufacturer DENSO
Outside Pulley Diameter 0
Plug Clock Rear View Main Mounting Ear At 6 O Clock 12
Plug Clock Rear View Main Mounting Ear At 6 O Clock 12:00
Plug Type 312
Pulley Belt Type V-belt
Pulley Groove Quantity 1
Regulator Type Internal
Rotation Direction CW
Type Alternator
Voltage 12

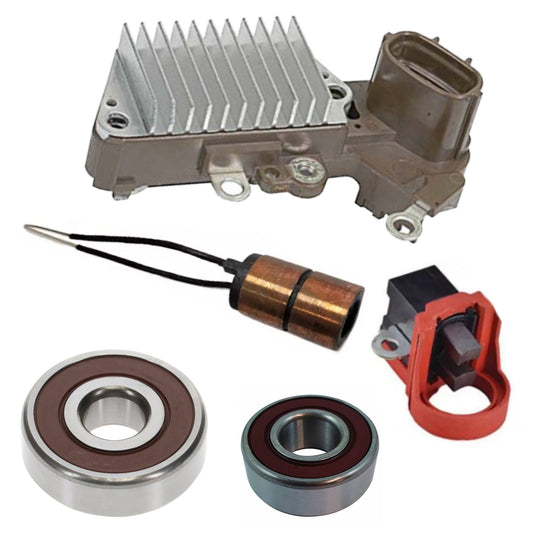

Alternator Rebuild Kit 11634RK-A
Bearings 6-302-4 6-202-4
Brush Holder Assy 74909200
Brush 7390901 38-8201x2
Plug 9801312
Rectifier 77904031

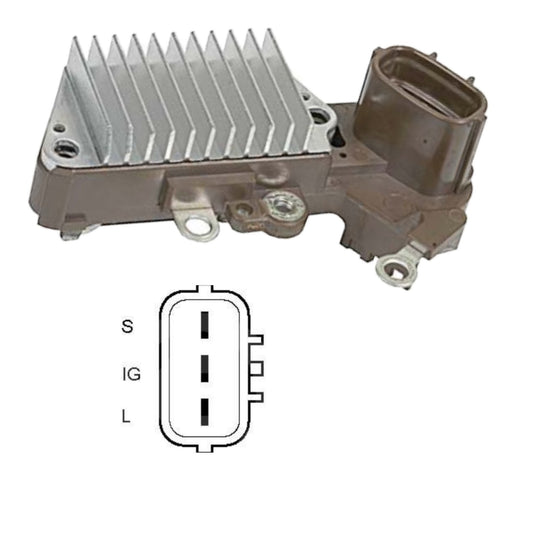

Regulator 80904521
Stator 72908529

RECT COVER-13711 TOYOTA 1 W015-40

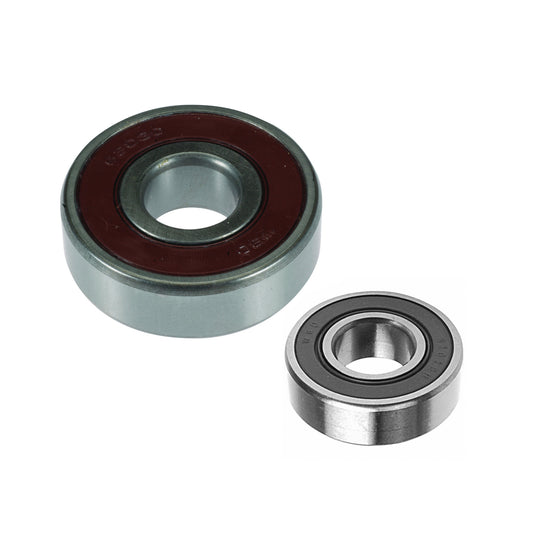

6202-2RS BEARING-15x35x11mmPFI 1 W02X-05-1
6302 2RS BEARING-15x42x13mm 1 W02X-15
BRUSH-5x7x15mm STANDARD 2 W035-04
DISH DIODE-POS 35A 400V 9.7mm 3 W04X-18
DISH DIODE-NEG 35A 400A 9.7mm 3 W04X-19
DISH DIODE-NEG 35A 400V 8.4mm 1 W04X-59
DISH DIODE-POS 35A 400V 8.4mm 1 W04X-60

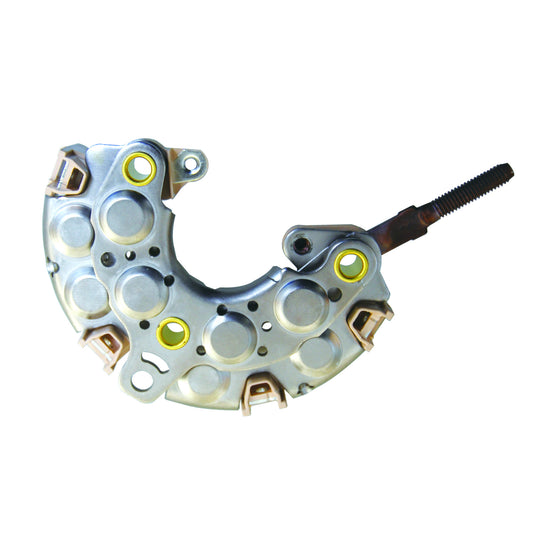

RECT-100mm OD LATE 4PH 1 W065-194
ROTOR-102211- 12V70A 86.5mm 1 W075-07
STATOR-70A 110.5 OD 1 W105-23
B+ POST INSULATOR-M6 1 W115-01
THRU BOLT 4 W115-14
BRG RETAINER SCREW 4x.18mm 1 W115-205
REG SCREW-M4x0.7x25 2 W115-206
ROTOR BEARING SPACER-FLAT 1 W115-207
ROTOR BEARING COVER-TOP 1 W115-208
PULLEY NUT-14x1.5 FLANGE OE 1 W115-252N
NUT 6x1.0mm 10mm HEX 1 W115-39
WAVE WASHER RETAINING RING 1 W115-45
BRUSH/RECT SCREW 4mm 5 W115-81
BRUSH HOLDER SET-14668 1 W155-04
BRUSH HOLDER 14668 1 W155-04B
SLIP RING W/LEAD 1 W165-00L
SLIP RING COLLAR-(1PC) 2 W165-04
