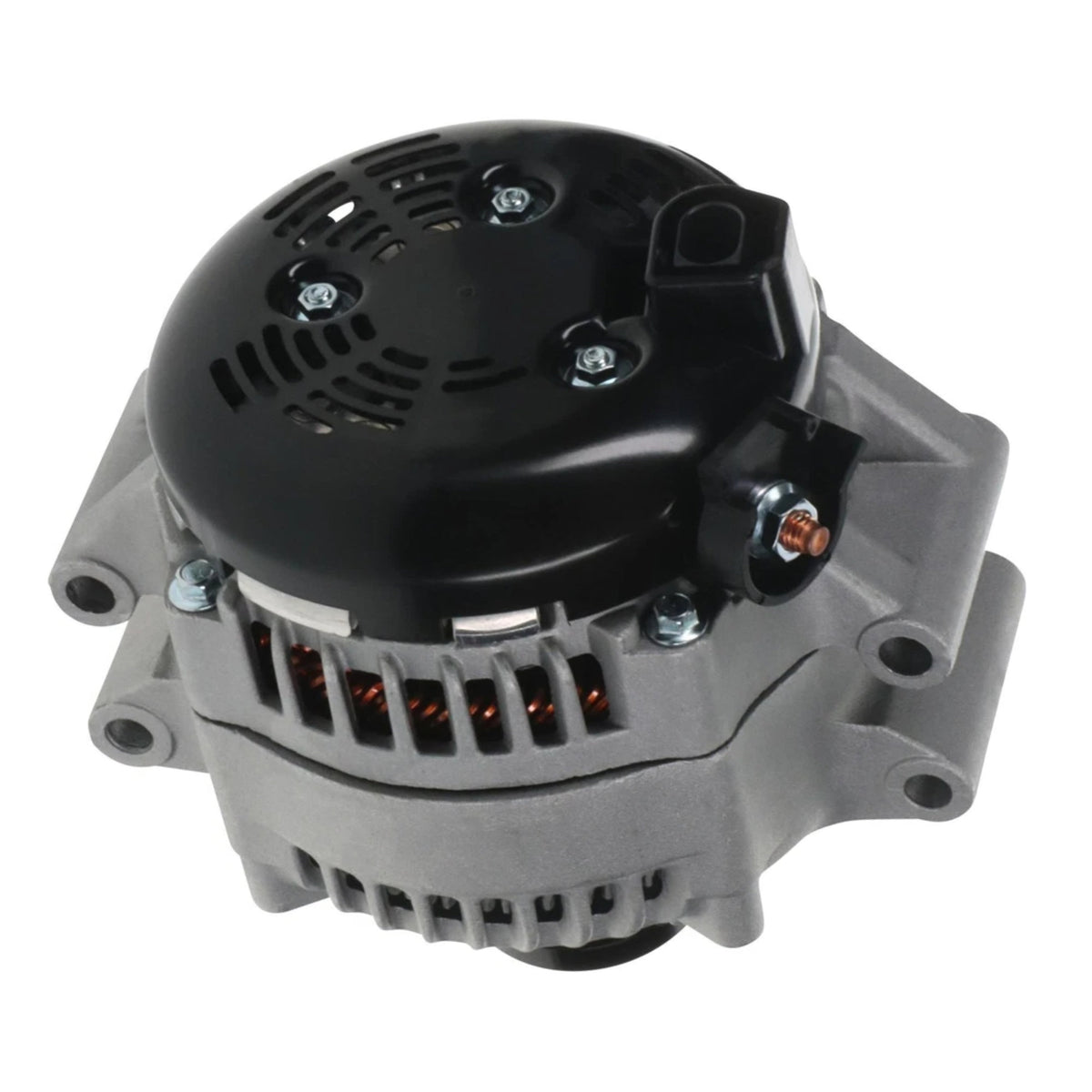

Alternator 2011-2012 BMW 135i 335i 3.0L Denso 104210-6050, -6051, -6052 - 11750

BMW
135i L6 3.0L 2979CC 2011-2012
335i L6 3.0L 2979CC 2011-2012
335i xDrive L6 3.0L 2979CC 2011-2012

Alternator Manufacturer and Factory #s
BMW 12-31-7-591-532, 12-31-7-591-533
Bosch Aftermarket AL9447X (Reman)
Bosch Service Europe 0-986-CR6-228, 0-986-UR6-228
DENSO 104210-605, 104210-6050, 104210-6051, 104210-6052
Lester 11750

Manufacture DENSO
Amperage Rating 170
Decoupled Or Clutch Pulley Yes
Design IR/IF
Family 100
Fan Type Internal
Mfr Series HAIRPIN
Oe Manufacturer DENSO
Outside Pulley Diameter 50.1
Plug Clock 1
Plug Clock Rear View Main Mounting Ear At 6 O Clock 12
Plug Code 430
Plug Orientation Rear
Pulley Belt Type Serpentine
Pulley Diameter 49.0
Pulley Groove Od 49.0
Pulley Groove Quantity 7
Pulley Type SC7
Regulator Type Internal
Rotation Direction Clockwise (Right)
Series HAIRPIN
Stator Type Hairpin
Type Alternator
Voltage 12

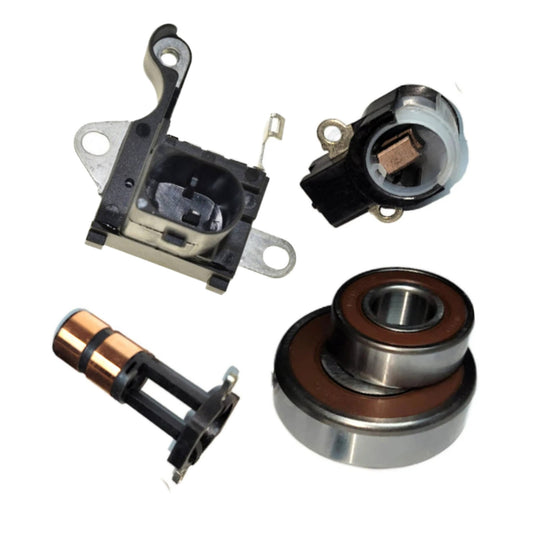

Alternator Rebuild Kit 11750RK-A
6202 D2RS BEARING-15x35x13mm W02X-20-1 53514 10-2021-4W
333 2RS BEARING-17x52x16mm W02X-49-1 55222 10-3042-4W
ALT BRUSH-5x7x15mm HP W035-04A 7390901 38-8201x2
DCP PULLEY BMW OE W055-198N
RECTIFIER W065-236 77904079
REGULATOR W085-423 80904670 IN6378
RETAINER SCREW-M4.5x18L W115-204
BRUSH SPRING-LATE W115-219
BEARING RETAINER-61mm OD W115-54
BRUSH HOLDER W155-24 39-8206
SLIP RING W165-11 28-82854
