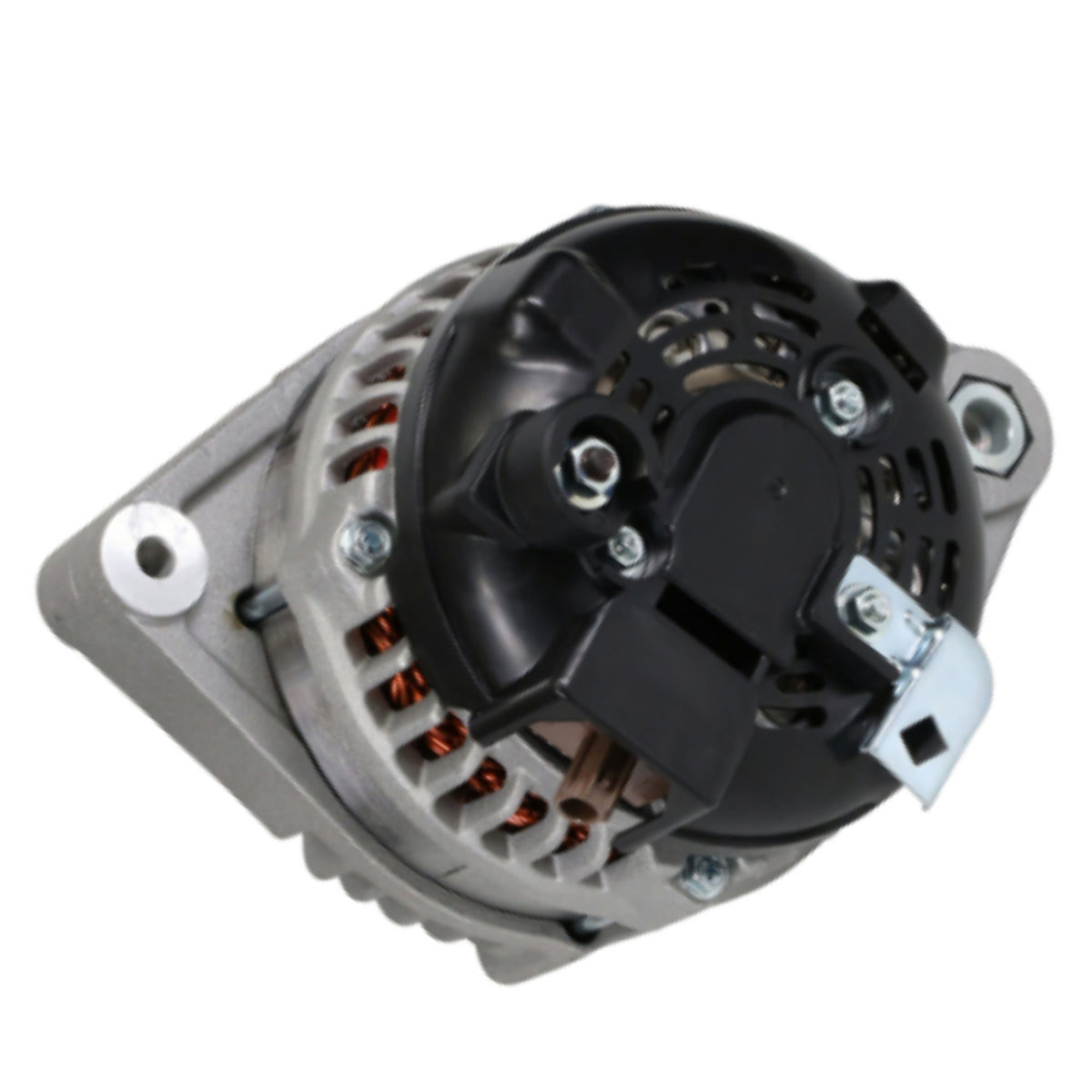

Alternator 2012-2015 Honda Crosstour 2.4L 120 Amp 104210-1490 - 11768

Honda Crosstour L4 2.4L 2354CC 144CID 2012-2015

Alternator Manufacturer and Factory #s
Bosch Aftermarket AL1314X (Reman)
Denso 104210-1490, 210-0801, 210-1205
Honda 06311-5J0-505RM, 31100-5J0-A01, 31100-5J0-A01RM, CSJ49
Lester 11768
PIC# 290-6316


TYPE Alternator
AMPERAGE 120
DESIGN IR/IF
MFR DENSO
MFR SERIES HAIRPIN
PLUG CLOCK 10
PLUG ORIENTATION SIDE
PULLEY DESIGN S7
PULLEY GROOVE OD 61.5
ROTATION CW
VOLTAGE 12

Alternator Rebuild Parts
COVER 1 W015-53
6303-2RS C3 BEARING 1 54700 W02X-11-1
6202 D2RS BEARING-15x35x13mm 1 53514 W02X-20-1
BRUSHES-5x7x15mm HP 2 38-8201x2 W035-04A
Rectifier 1 W065-237
Voltage Regulator 1 W085-355 W085-355A 80904595 IN6363
PULLEY NUT-14x1.5mm 7mm 1 W110-29
BRG RETAINER SCREW 4x.18mm 4 W115-205
ROTOR BEARING COVER-TOP 1 W115-208
BRUSH SPRING-LATE 2 W115-219
B+ INSULATOR 1 W115-221
NUT 6x1.0mm 10mm HEX 1 W115-39
BRUSH HOLDER SCREW-M4x14 4 W115-44
WAVE WASHER RETAINING RING 1 W115-45
BEARING RETAINER-53mm OD 1 W115-51
BRUSH/RECT SCREW 4mm 1 W115-81
HONDA REPAIR HARNESS 1 9801501 W145-43
BRUSH HOLDER ASSEMBLY 1 39-8206 W155-24
SLIP RING 1 28-82854 W165-11
