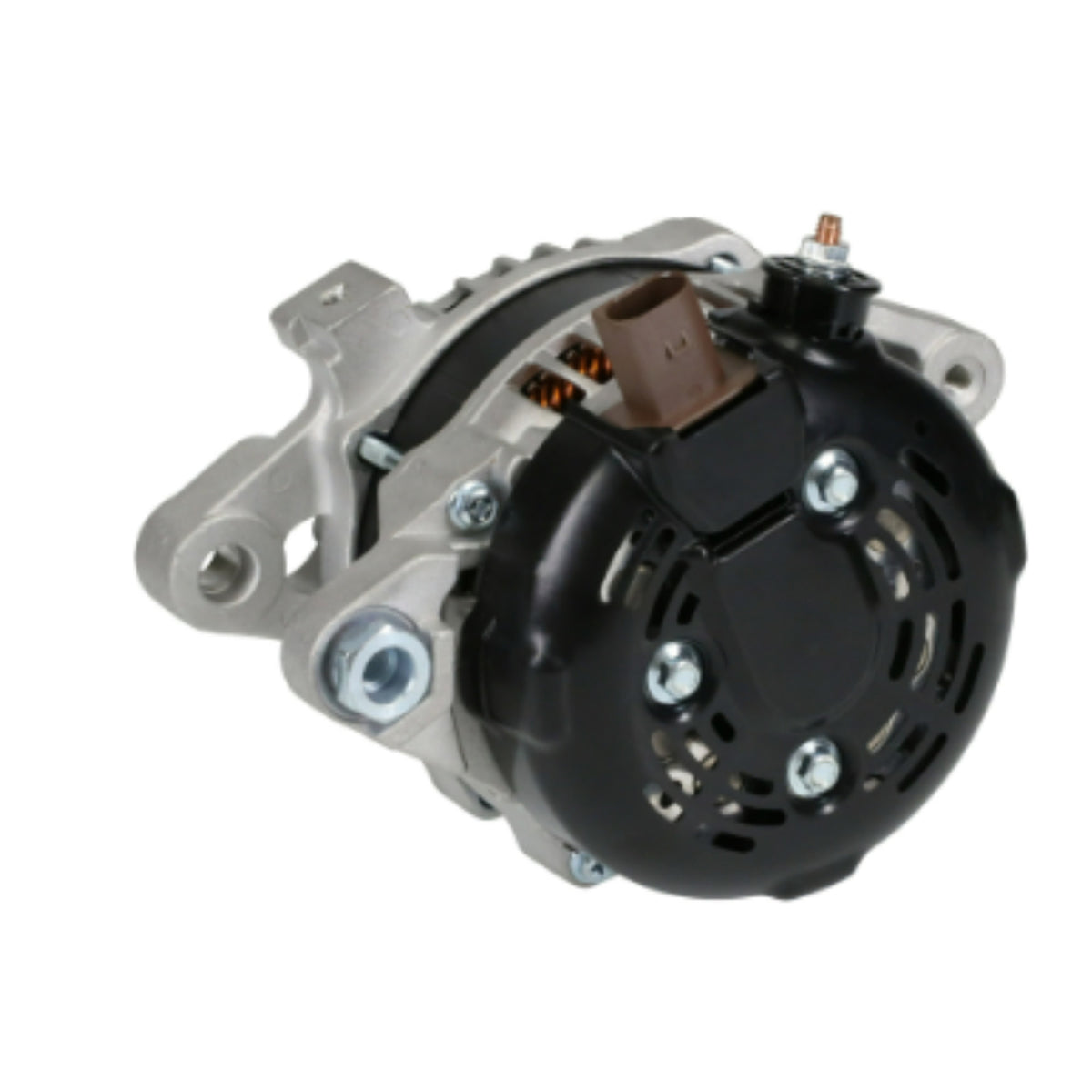

Alternator 2014-2019 Toyota Corolla L4 1.8L 2ZR-FE w/ 125A Denso - 11776

Toyota Corolla L4 1.8L 2ZR-FE 2014-2019 w/ 125A Denso

Alternator Manufacturer and Factory #s
Bosch Aftermarket AL3385X (Reman)
DENSO 104211-330, 104211-3300, 104211-3301, 104211-3303, 210-0847, 210-1229
Lester 11776
Toyota 27060-0T240
J&N 400-52498R

Manufacture DENSO
Amperage Rating 125
Decoupled Or Clutch Pulley Yes
Fan Type Internal
Oe Manufacturer DENSO
Plug Clock Rear View Main Mounting Ear At 6 O Clock 8
Pulley Belt Type Serpentine
Pulley Groove Quantity 6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Stator Type Hairpin
Voltage 12

Alternator Parts List
Bearings 53514 54700
Tolerance W115-250
Brush Holder Assy 74909205 39-8206
Cover - S.R.E. Frame 84909136
Cover 84909070 46-82577, w015-102, 188-52032
Frame, DE 76909298
Frame, SRE 75909280
Plug Code 9801073
Rectifier 77904151 INR476 W065-285
Regulator 80904730 230-52183, 216-111, W085-395A
Pulley W055-129N
Insulator W115-173
SlipRing 7190904B 28-82854
Hardware W115-81, W115-51 W115-51 W115-44 W115-205 W115-208
