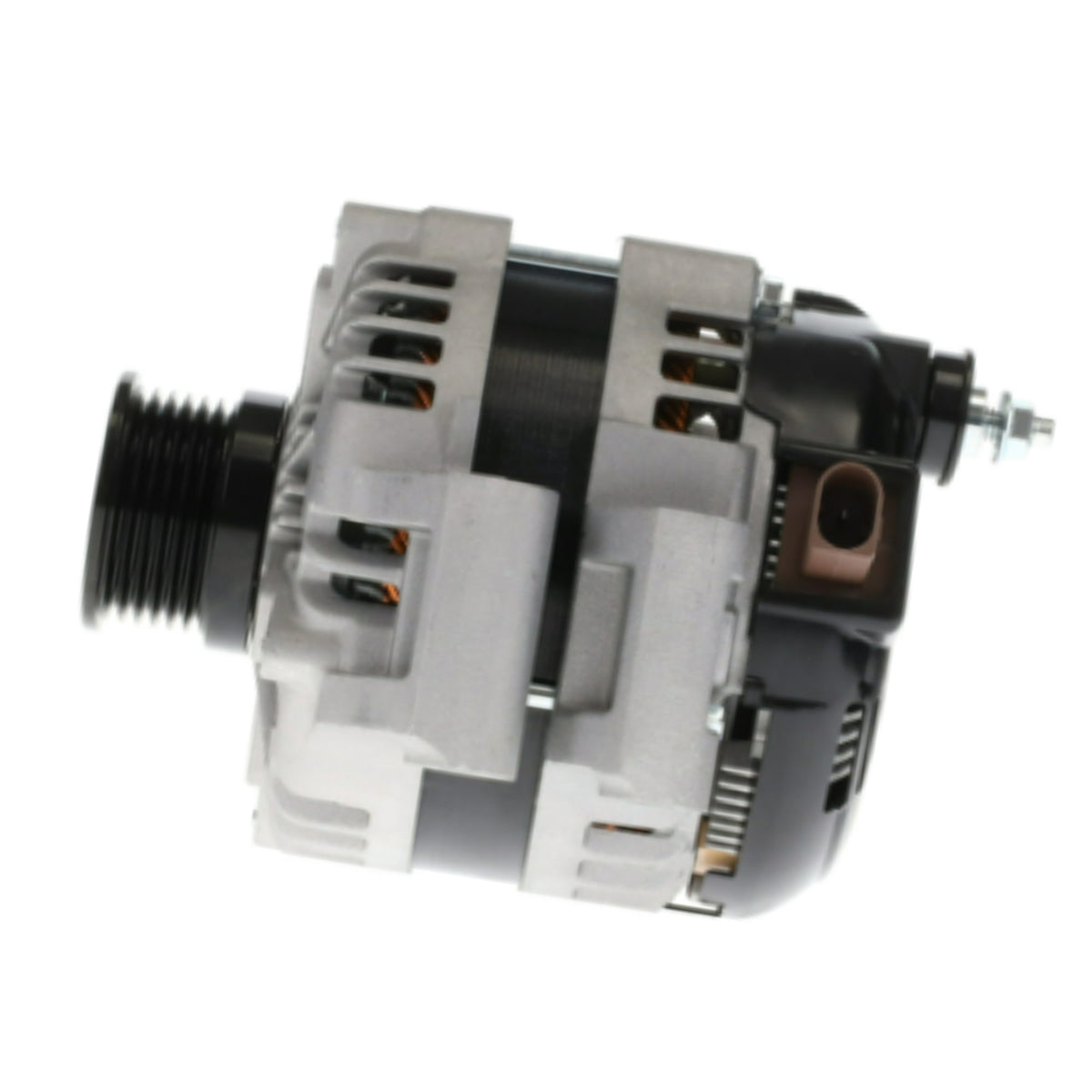

Alternator 230 Amp 2014-2015 Ram 1500 3.0L Denso 104211-0120, 104211-0121 - 11781

Ram Truck
1500 V6 3.0L 2987cc 182cid 2014-2018 230 Amp
1500 Classic V6 3.0L 2987cc 182cid 2019 230 Amp

Alternator Manufacturer and Factory
Bosch Remanufactured AL6547X
Chrysler 56029696AA, P56029696AA, 56029696AB, P56029696AB
Denso 104211-0120, 104211-0121, TN104211-0121
Lester 11781
MFR Series - Family Type HAIRPIN
PIC# 290-6400, 290-6400A

Manufacture DENSO
Amperage Rating 230
Decoupled Or Clutch Pulley Yes
Fan Type Internal
Oe Manufacturer DENSO
Outside Pulley Diameter 53.7
Plug Clock Rear View Main Mounting Ear At 6 O Clock 12
Plug Orientation Side
Pulley Belt Type Serpentine
Pulley Groove Quantity 6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Stator Type Hairpin
Voltage 12

Alternator Rebuild parts
Cover - S.R.E. Frame 84909150
6202 D2RS BEARING-15x35x13mm W02X-20-1 53514 10-2021-4
333 2RS BEARING-17x52x16mm W02X-49-1 55222 10-3042-4
Brushes -5x7x15mm HP W035-04A 7390901 38-8201x2
Clutch Pulley 6GRV54 Zen 5704 W055-154 79909173
Rectifier 1 W065-231A W065-231 77904212
Voltage Regulator W085-415 VRH2005-217 80904675 IN4460
Plug Harness 9801066
BRG RETAINER SCREW-M4.5x18L W115-204
ROTOR BEARING COVER-TOP W115-208
B+ INSULATOR- W115-241
BRUSH HOLDER SCREW-M4x14 W115-44
BEARING RETAINER-61mm OD W115-54
BRUSH/RECT SCREW 4mm W115-81
BRUSH HOLDER-11063 12V W155-24
SLIP RING-11032 W165-11
PULLEY TOOL-DECOUPLER 17mm HEX W19-08
