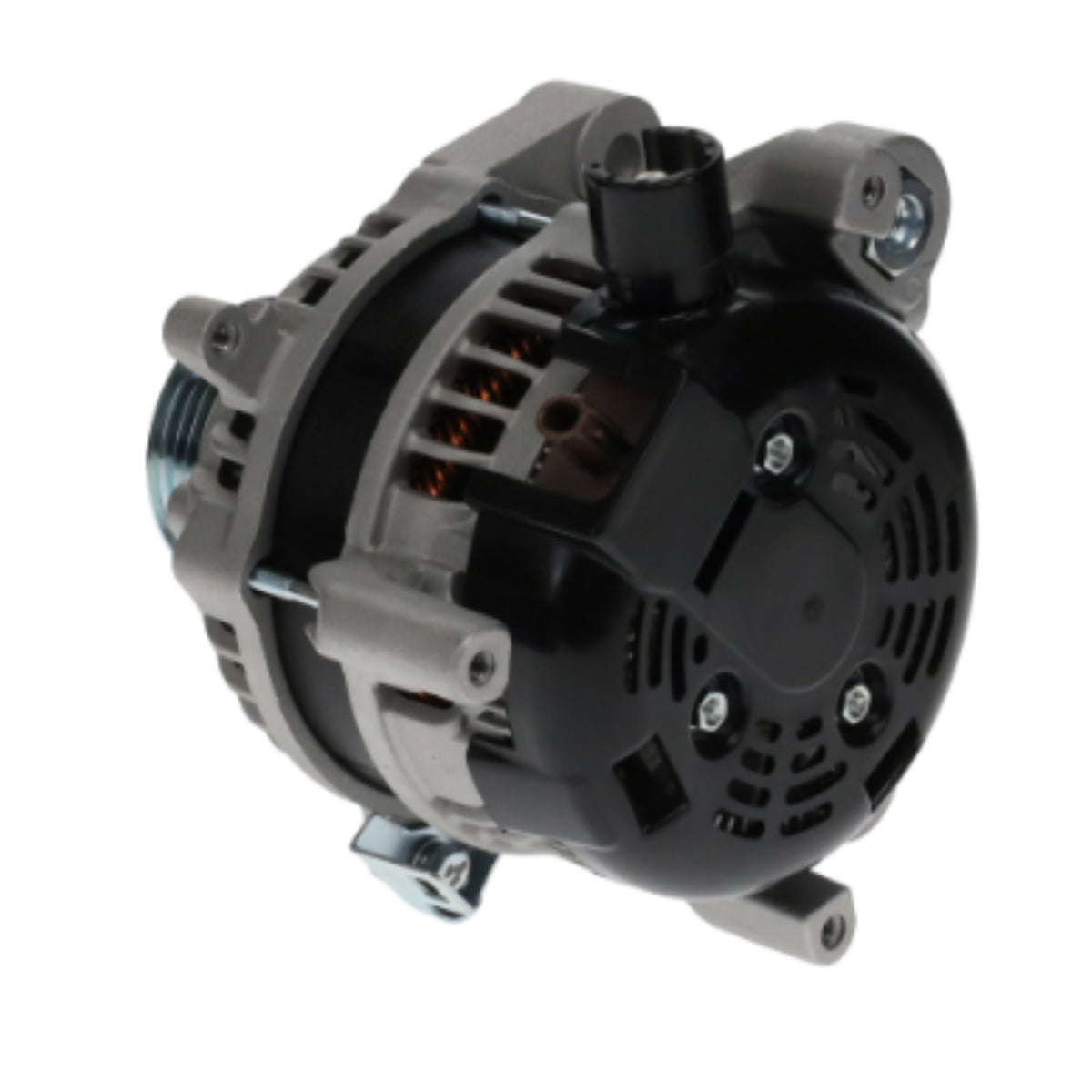

Alternator 2016-2020 Honda Civic 2.0L M/T 135 Amp 104211-3960 - 11930

Civic L4 2.0L 1996cc 122cid 2024 M/T
Civic L4 2.0L 1996cc 122cid K20C2 2016-2020 M/T

Alternator Manufacturer and Factory #s
Denso 104211-3960
Honda 31100-5BA-A51, 31100-5BA-A51RM, CSP96
Lester 11930
PIC# 290-5734

TYPE Alternator
AMPERAGE 135
DESIGN IR/IF
MFR DENSO
MFR SERIES HAIRPIN
PLUG CLOCK 3:15
PLUG CODE 501
PLUG ORIENTATION SIDE
PULLEY DESIGN S7
PULLEY GROOVE OD 57.26
ROTATION CW
VOLTAGE 12

Alternator Rebuild Parts List
COVER- 84909131 W015-123
Bearings 53500 54700
6303-2RS C3 BEARING-54700 W02X-11-1
6202 D2RS BEARING-15x35x13mm 53514 W02X-20-1
BRUSH-5x7x15mm HP 38-8201x2 W035-04A
RECTIFIER 77904209 W065-279 INR493
REG-11604 HONDA LIN2.0 80904595 W085-355 W085-355A IN6363
RETAINER SCREW 4x.18mm W115-205
BRUSH SPRING-LATE W115-219
B+ INSULATOR W115-222
WAVE WASHER RETAINING RING W115-45
BEARING RETAINER-53mm OD W115-51
BRUSH/RECT SCREW 4mm W115-81
REPAIR HARNESS- 9801501 W145-43
BRUSH HOLDER- 74909216 39-8206 W155-24
SLIP RING-28-82854 W165-11
