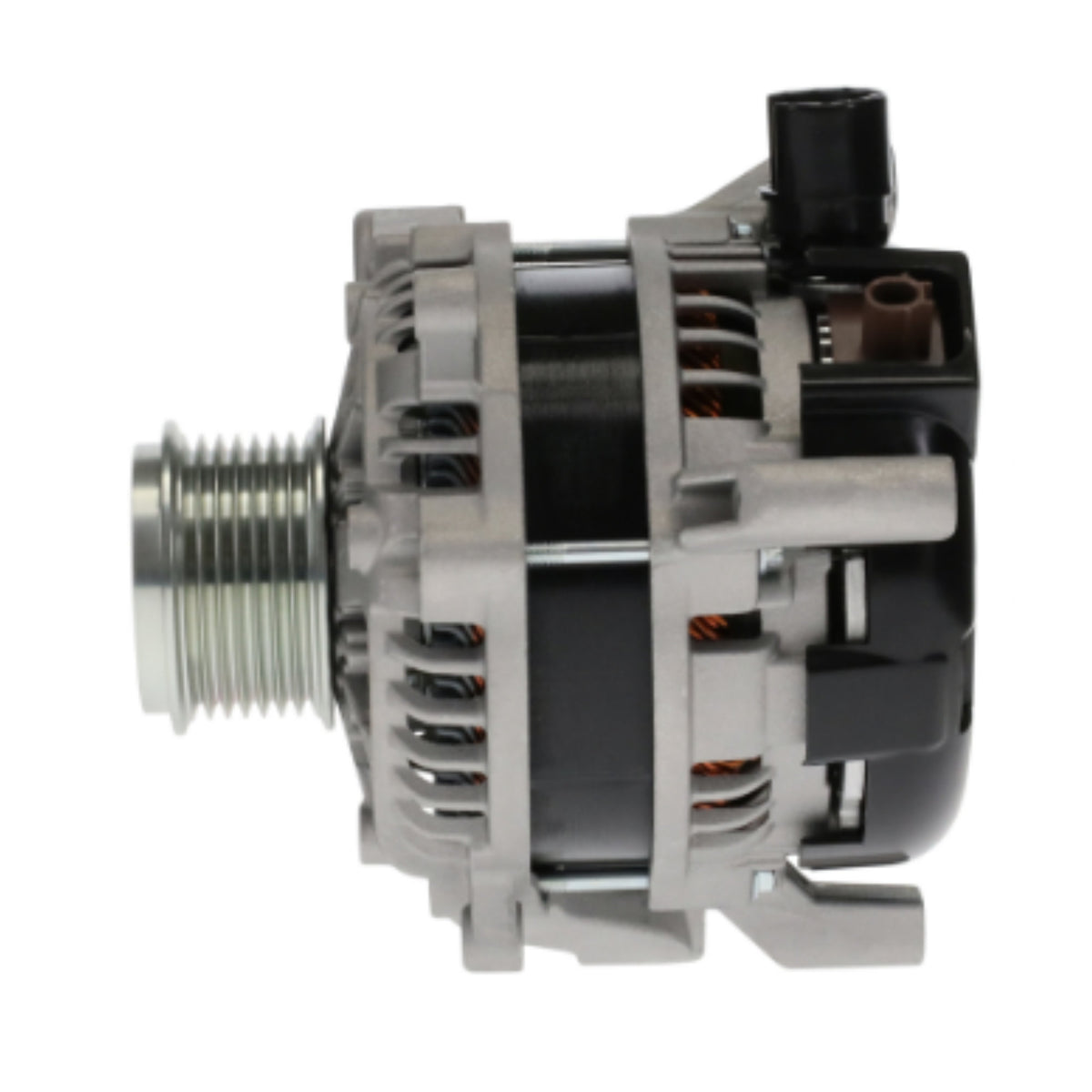

Alternator 2016-2024 Civic 2.0L wo/Turbo, 2023-2026 HR-V 2.0L 135 Amp 104211-3910 - 11931

Honda Civic L4 1.5L 2023
Honda Civic L4 2.0L 2016-2024 (See 21388 for 2.0L Turbocharged Civic)
Honda HR-V L4 2.0L 2023-2026

Alternator Manufacturer and Factory #s
Denso 104211-3910
Honda 31100-5BA-A01, 31100-5BA-A01RM, CSP91
Lester 11931
PIC# 290-5735

TYPE Alternator
AMPERAGE 135
DESIGN IR/IF
MFR DENSO
MFR SERIES HAIRPIN
PLUG CLOCK 3
PLUG CODE 501
PLUG ORIENTATION SIDE
PULLEY DESIGN SD7
PULLEY GROOVE OD 57.5
ROTATION CW
VOLTAGE 12

Alternator Rebuild Parts List
COVER 84909131 W015-123
Bearings 53500 54700
6303-2RS C3 BEARING 54700 W02X-11-1
6202 D2RS BEARING-15x35x13mm 53514 W02X-20-1
BRUSHES-5x7x15mm 38-8201x2 W035-04A
DCP PULLEY LITENS 920037 7GRV57 OE 39568 79909134 W055-146N
RECTIFIER 77904209 INR493 W065-300
INT REG HONDA LIN2.0 W085-355 W085-355A 80904595 IN6363
LITENS DECOUPLER CAP-47.6mm W112-30N
RETAINER SCREW 4x.18mm W115-205
ALT BRUSH SPRING-LATE W115-219
B+ INSULATOR W115-222
BRUSH HOLDER SCREW-M4x14 W115-44
WAVE WASHER RETAINING RING W115-45
BEARING RETAINER-53mm OD W115-51
BRUSH/RECT SCREW 4mm W115-81
REPAIR HARNESS W145-43
BRUSH HOLDER 74909216 39-8206 W155-24
SLIP RING 28-82854 W165-11
