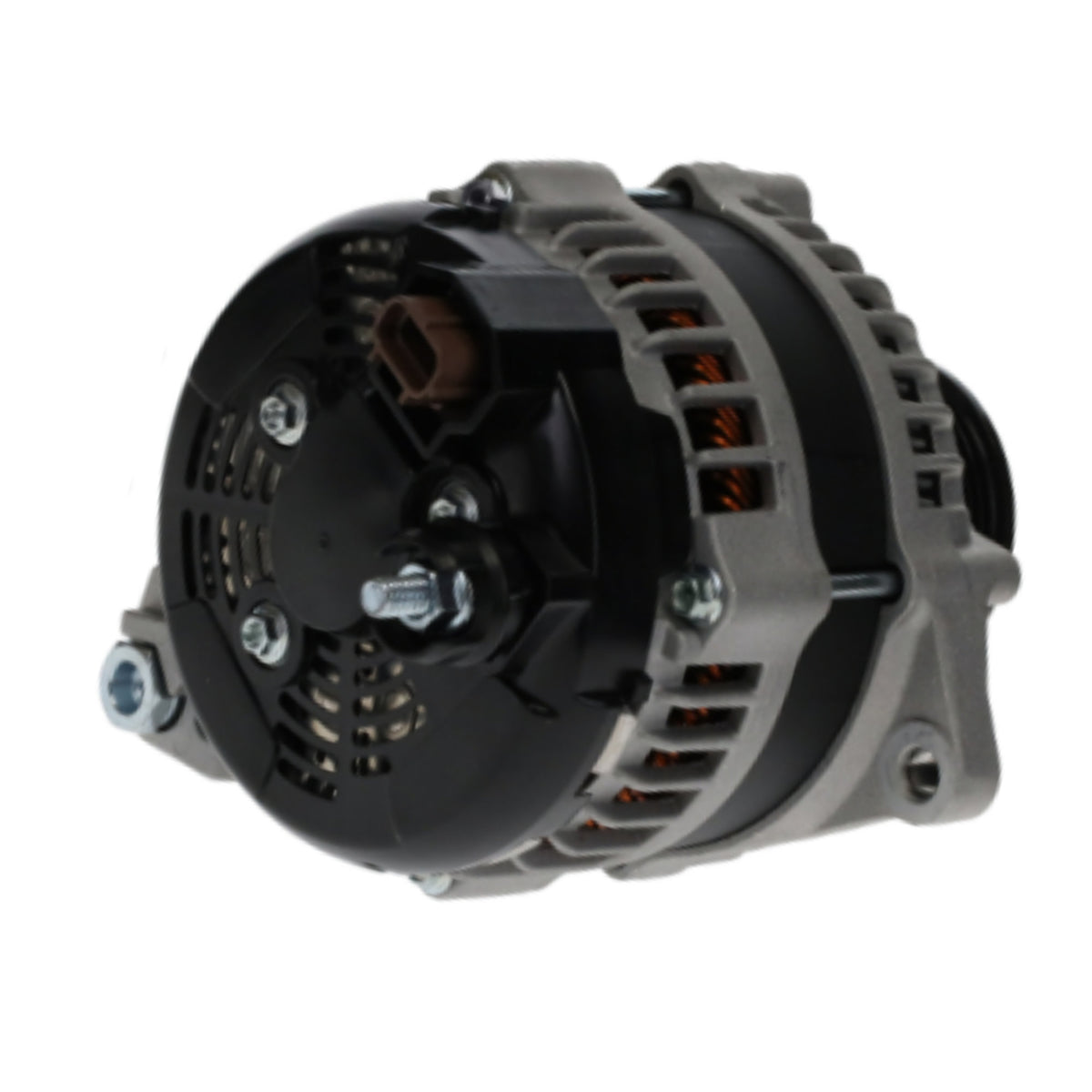

Alternator 2015-2017 Mustang w/200 Amp Denso 104210-6950, 104210-6951 - 11963

Ford Car
Mustang V8 5.0L 302cid 2015 M/T 200 Amp
Mustang V8 5.0L 302cid VIN F 2016-2017 M/T 200 Amp
Mustang V8 5.2L 315cid VIN Z 2016-2017 200 Amp

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL7806X
Denso 104210-6950, 104210-6951, TN104210-6950, TN104210-6951, 104211-1130
Ford FR3T-10300-HA, FR3Z-10346-H, GR3T-10300-HA, GR3Z-10346-F, GR3T-10300-HB, GR3Z-10346-L
Lester 11963
Motorcraft GL-8768, GL-8820, GL-8889
Pic 290-1045, 290-1045A


TYPE Alternator
AMPERAGE 200
DESIGN IR/IF
MFR DENSO
MFR SERIES HAIRPIN
PULLEY DESIGN SC6
ROTATION CW
VOLTAGE 12
INTERCHANGES
WAI New 11963N

Alternator Rebuild Parts List
Plug 9801337 110-14013
Rectifier 77904225 INR458
Voltage Regulator 80904642 IN6345
REGULATOR-DENSO TADITEL 1 T7378, W085-353A
6202 D2RS BEARING-15x35x13 5-5314 1 W02X-20N
333 2RS BEARING-17x52x16mm 5-5222 1 W02X-49-1
ND ALT BRUSH-5x7x15mm 7390901 38-8201x2 2 W035-04A
ND RECTIFIER 77904126 INR440 1 W065-277
DENSO ALT BRUSH SPRING-LATE 2 W115-219
ND BEARING RETAINER-61mm OD 1 8590900 W115-54
ND ALT BRUSH HOLDER 74909206 39-8206 1 W155-24
ND HAIRPIN SLIP RING 7190904B 28-82854 1 W165-11
