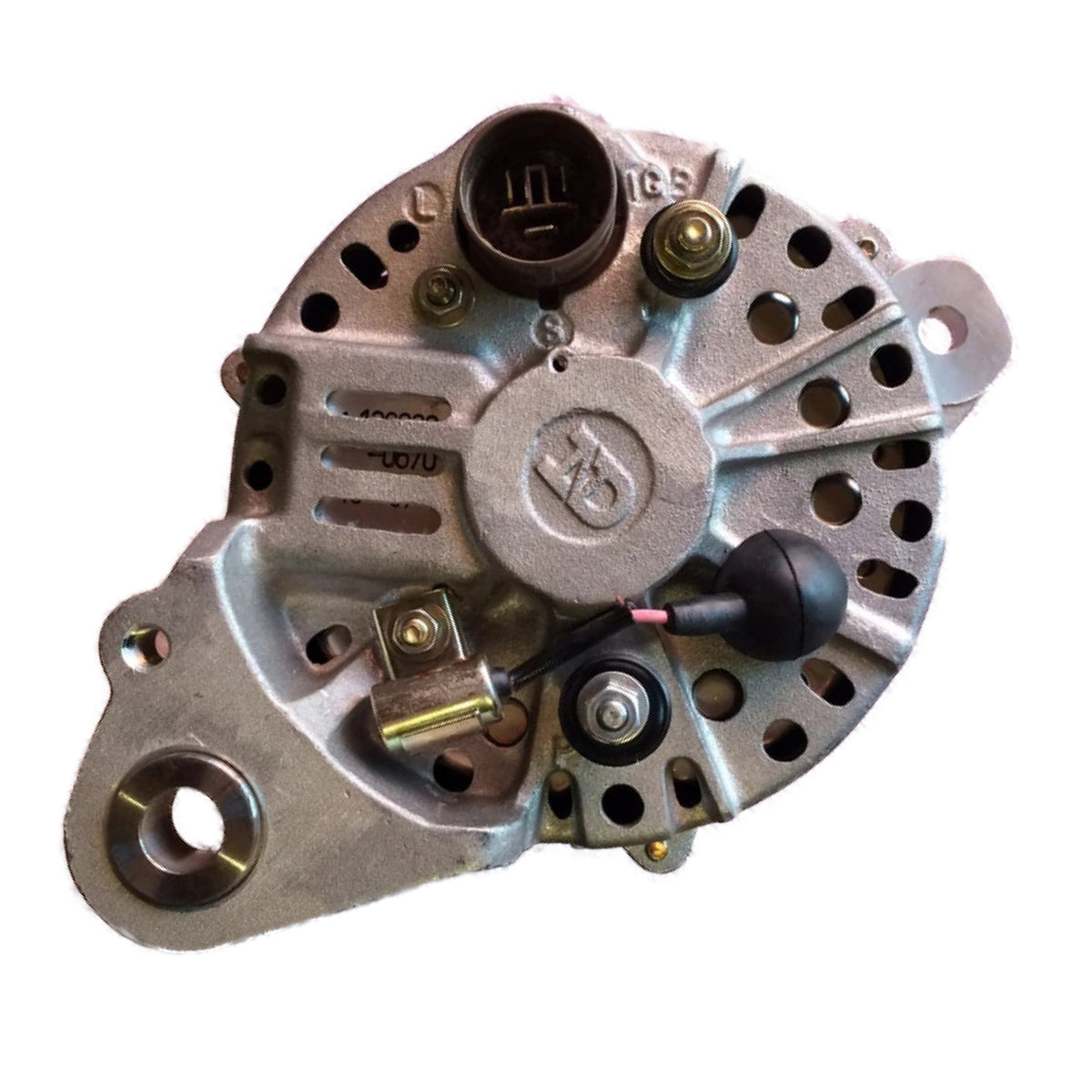

Alternator Hino Marine EH700,T W06DTA W06DTI 100211-2630 -2631 -2632 -2633 -2634 - 12345

Hino Engine - Marine
EH700,T 6 Cyl., 393CI, 6.4L 1986-1997
WO6DTA 6 Cyl., 351CI, 5.7L 1990-1997
WO6DTI 6 Cyl., 351CI, 5.7L 1990-1997
Hino Medium/Heavy Truck
FC W06D (6.0L) 1984-1990
Mercruiser Engine - Marine
Model EH700 MIE (175 / 220HP) HINO 6.5L - 393ci - 6cyl 1986-1997
Model W06DTA MIE (310HP) HINO 5.8L - 351ci - 6cyl 1993-1997
Model W06DTI MIE (250HP) HINO 5.8L - 351ci - 6cyl 1990-1997

Alternator Manufacturer and Factory #s
Denso 100211-2630, 100211-2631, 100211-2632, 100211-2633, 100211-2634
Hino 27040-1261A, 27040-1261B, 27040-1262, 27040-1262C
Lester 12345
Mercury Marine 830401262
PIC# 290-446

6201-2RS C3 BEARING W02X-01-1 6-201-4
6304 2RS BRG-20x52x15mm W02X-13-1 55200 6-304-4
BRUSH 5x8x17mm W035-01 38-8200x2 7390900
REG INSERT W085-00
REGULATOR HINO S-IG-L W085-35
Plug 9801280
Rectifier 77904037
Plug 9801280
PULLEY NUT-14x1.5mm 7mm W110-29
Insulator 92909004 92909005 92909011
B+ INSULATOR-6mm ID W115-05
TERMINAL INSULATOR-5mm FLAT W115-07
BRUSH SPRING-EXT FAN W115-10
CAPACITOR-.22uF W/EYE W115-31
NOISE CAPACITOR W115-85
Nut 95001452
Rotor 70902979
Stator 72908525

Bearing Retainer DE Housing 1 021411-0211
Bearing, Ball DE Housing 1 949100-2701 +
Bearing, Ball SRE Housing 1 130-01057 949100-3261 +
Brush 2 140-52000 021660-0130
Brush Holder Assembly 1 021620-2030
Brush Spring 2 949170-0571 +
Capacitor 1 949520-2720
Fan 1 021051-0740
Housing, DE OEM Version Includes Other Components 1 021400-3640
Housing, DE 1 021401-3441 +
Housing, SRE OEM Version Includes Other Components 1 021500-5320
Housing, SRE 1 021501-5320
Insulating Bushing SRE Housing 1 021605-0301
Insulating Bushing SRE Housing 1 021605-0610
Insulating Bushing SRE Housing 1 021605-0710
Mounting Bushing SRE Housing 1 021541-0570
Nut, Hex Rotor Shaft 1 949050-3340
Nut, Hex-Washer SRE Housing 3 949056-0990
Nut, Hex-Washer SRE Housing 1 949056-1001
Pulley 1 021041-4191
Rectifier OEM Version Includes Brush Holder Assembly 1 021600-1880
Regulator, Electronic 1 230-52021 126000-0360
Rotor 1 021200-2370
Screw Bearing Retainer Attaching 3 949047-2130
Spacer Fan 1 021045-0300
Spacer Rotor Shaft 1 021045-0310
Stator 1 021100-2400
Thru Bolt DE Housing 3 949042-2330
Washer, Lock, Split Rotor Shaft 1 949015-0720
