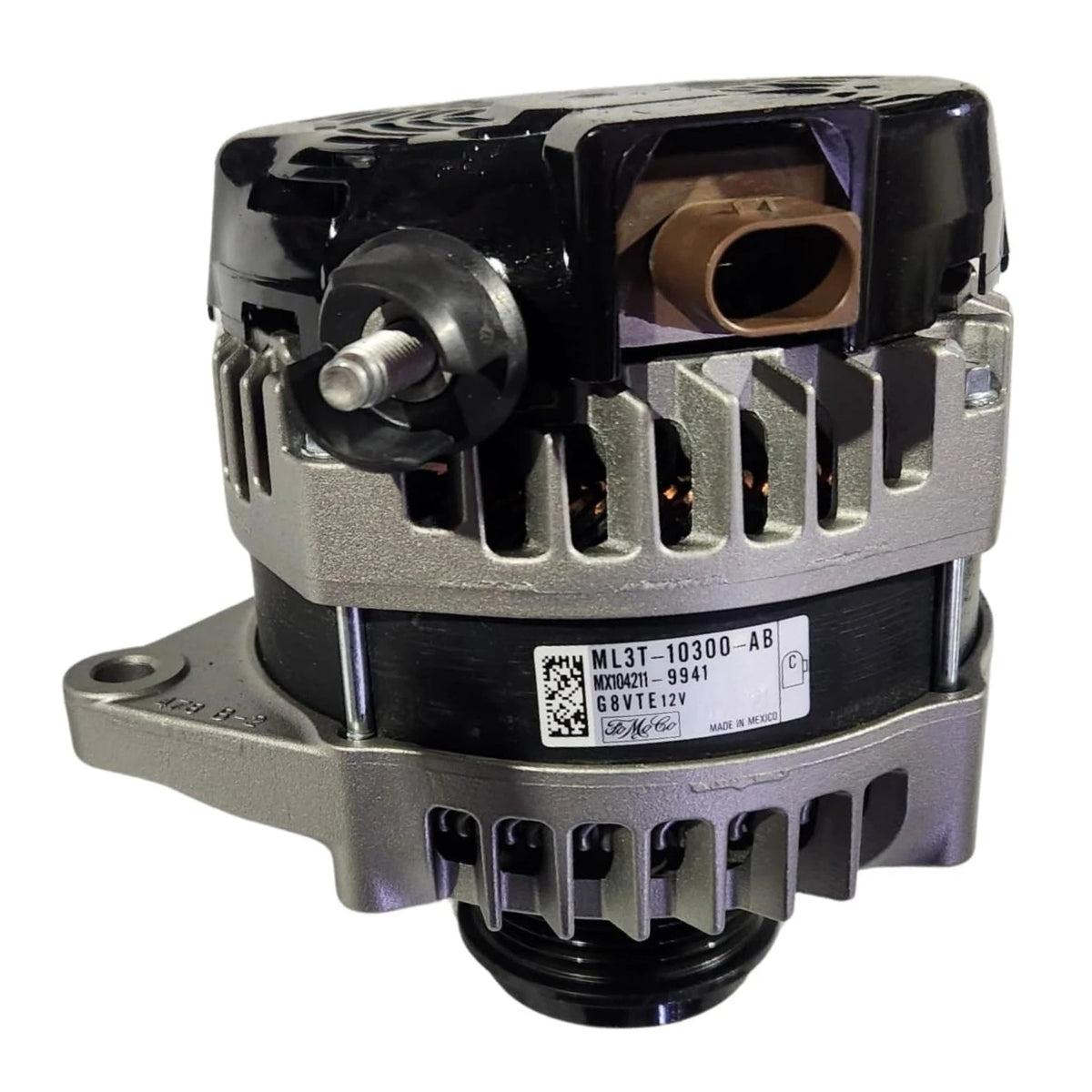

Alternator 2021-2025 Ford F150 2.7L 3.3L 3.5L 240 Amp 104211-9941 - 12914

Ford Truck
F-150 V6 2.7L 164CID 2021-2025 w/240 Amp
F-150 V6 3.3L 3343CC 204CID 2021-2023 w/240 Amp
F-150 V6 3.5L 3496CC 213CID 2021-2025 w/240 Amp

Alternator Manufacturer and Factory #s
Denso 104211-9941
Ford ML3T-10300-AB, ML3Z-10346-A
Lester 12914
Motorcraft GL8993


TYPE Alternator
AMPERAGE 240
DESIGN IR/IF
MFR DENSO
MFR SERIES HAIRPIN
PLUG CLOCK 10:45
PLUG CODE 066
PLUG ORIENTATION SIDE
PULLEY DESIGN SD6
PULLEY GROOVE OD 57.16
ROTATION CW
VOLTAGE 12

Bearings 53500 6202-2RS 1 W02X-05-1
Bearing 54700 6303-2RS 1 W02X-11-1
Brush Holder Assy 74909205 39-8206
Cover - S.R.E. Frame 84909162
Decoupler Pulley 79001133 W055-209N
Frame Assy, Rectifier 77904276
Plug 9801066
Voltage Regulator 80904778
Bearing Retainer Screw 4x.18mm 4 W115-205
Tolerance Ring 1 W115-250
Bearing Retainer -53mm OD 1 W115-51
