Collection: Alternator for 1991-1998 Cherokee Wrangler Dakota 90 Amp - 13341

These Models with 90 Amp Chrysler 56005685, 56005685AB, 59005685, Denso 121000-3450, 121000-3451, 121000-3452, 121000-3600, 210-0130, 9712109-345
Dodge Truck
Dakota L4 2.5L 1997-1998
Jeep Truck
Cherokee L4 2.5L 1991-1998
Cherokee L6 4.0L 1991-1998
Comanche L4 2.5L 1991-1992
Comanche L6 4.0L 1991-1992
Grand Cherokee L6 4.0L 1993-1998
TJ L4 2.5L 1997-1998
TJ L6 4.0L 1997-1998
Wrangler L4 2.5L 1991-1998
Wrangler L6 4.0L 1991-1998

90 Amp Alternator's Manufacturer and Factory #s
Bosch Remanufactured (Denso Style) AL585X, AL6509X, AL6513X, AL6518X
Chrysler 56005685, 56005685AB, 59005685
Delphi RM4119
Denso 121000-3450, 121000-3451, 121000-3452, 121000-3600, 210-0130, 9712109-345
Excel 10002
Hollander 754B
Jeep-Eagle RL005685AB
Lester 13341
J&N 400-52039
Remy Light Duty 13199
Wilson 90-29-5122
PIC Picture ID 290-301

Alternator Rebuild Parts List
Bearings 53514 55222
Brush Holder Assy 74909202
Brushes 7390901
Cover 84909010
Frame, DE 76909202
Frame, SRE 75909202
Gasket 91904708
Grommet 91904711
Insulator 92909010
Nut  95001451 95001505 9590001
Plug 9801320
Pulley 79909015

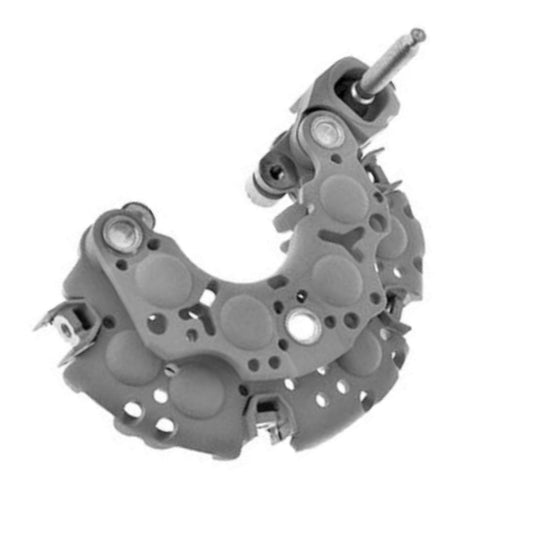

Rectifier 77904036 INR403
Regulator (NOT ORIGINAL -BYPASS REG) 80904430 IN8315
Repair Kit 69901082
Retainer, Bearing 8590900
Rotor 70901208
Screw 96909012 96909016 96909063
Seal 91904712
Stator 72908502
Terminal Block 99901000
Test Lead 9800-EL
Thru Bolt 96909009
Washer, Spring 98909030
