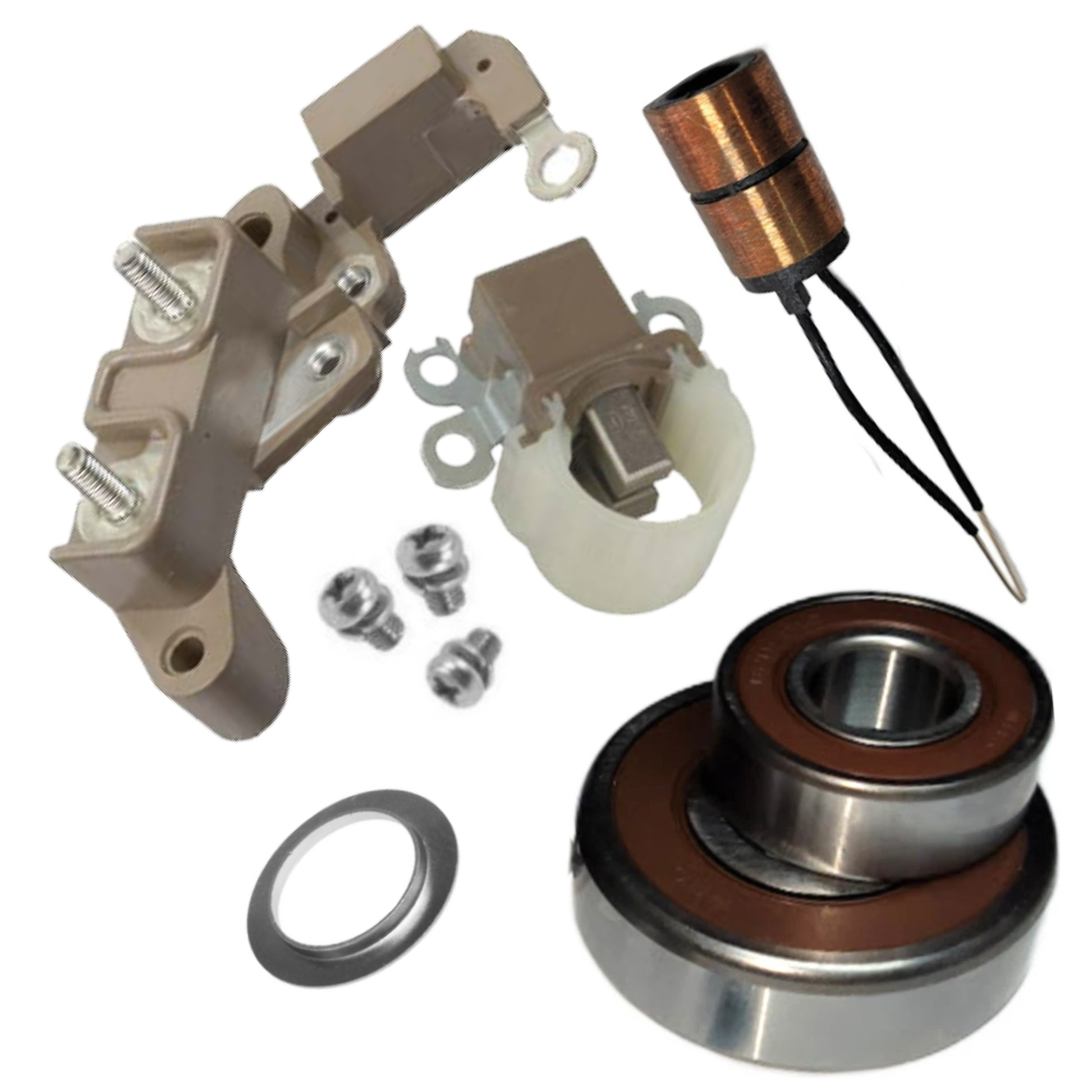

Alternator Rebuild Kit for 1991-1998 Cherokee Wrangler Dakota 90 Amp - 13341RK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• Dodge Truck: Dakota (1997-1998 L4 2.5L)
• Jeep Truck:
  Cherokee (1991-1998 L4 2.5L / L6 4.0L),
  Comanche (1991-1992 L4 2.5L / L6 4.0L),
  Grand Cherokee (1993-1998 L6 4.0L),
  TJ (1997-1998 L4 2.5L / L6 4.0L),
  Wrangler (1991-1995, 1997-1998 L4 2.5L / L6 4.0L)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Chrysler / Jeep-Eagle OE: 56005685, 56005685AB, 59005685, RL005685AB
• Denso OE: 121000-3450, 121000-3451, 121000-3452, 121000-3600, 210-0130, 9712109-345
• Bosch Reman (Denso Style): AL585X, AL6509X, AL6513X, AL6518X
• Lester / PIC References: Lester 13341 | PIC 290-301
• Other Crossovers: Delphi RM4119, Excel 10002, Hollander 754B, J&N 400-52039, Remy Light Duty 13199, Wilson 90-29-5122

🔧 Component-Specific Technical Data

⚡ Terminal Block Specs

• Technical Specifications: Built-in Capacitor 0.50uF, M4 x 0.7 Terminal Thread
• Design: For Denso ER/EF, ER/IF Alternators on Chrysler
• Replaces OEM: Chrysler 5227349, 5233482 | Denso 126220-0050, 126220-0051
• Aftermarket Crossovers: 46-82200, 211-600, 15505, W115-24, ND-475, 99901000, 170-52000, TBND168

⚡ Brush Holder Assembly Specs

• Features: Includes 2 Brushes
• Replaces OEM: Denso 021620-2430 (Brush Holder) | 021660-0390, 021660-0460, 021660-0510 (Brushes)
• Interchange Numbers: 150-52002, 39-8202

⚡ Drive End Bearing (Front) Specs

• Industry Number: 55222 / 333-2RS
• Dimensions: 17mm ID x 52mm OD x 16mm W
• Interchange Numbers: Denso 949100-3330, 949100-4370, 949100-5010 | 10-3042-4W

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53514 / 279
• Dimensions: 15mm ID x 35mm OD x 13mm W
• Interchange Numbers: Denso 949100-2790, 949100-3980, 949100-4440 | 10-2021-4W

⚡ Slip Ring Specs

• Dimensions: 8.9mm ID x 14.6mm OD x 23.9mm L
• Interchange Numbers: 7190904A, 313-52001, 28-82853

⚡ Hardware & Accessories Specs

• Attaching Screws: M4 x 0.7 x 5.7mm L Rectifier / Brush Holder Screws (3x Included)
• Rotor Bearing Cover: 15mm ID x 20mm OD x 2.2mm T
• Replaces OEM: Denso 949006-5460, 949007-3370, 949007-3930, 949007-6280 (Screws)
• Interchange Numbers: 96909016, 85-1205 (Screws) | 46-82700, W115-208, ND-486 (Cover)

💕 Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
