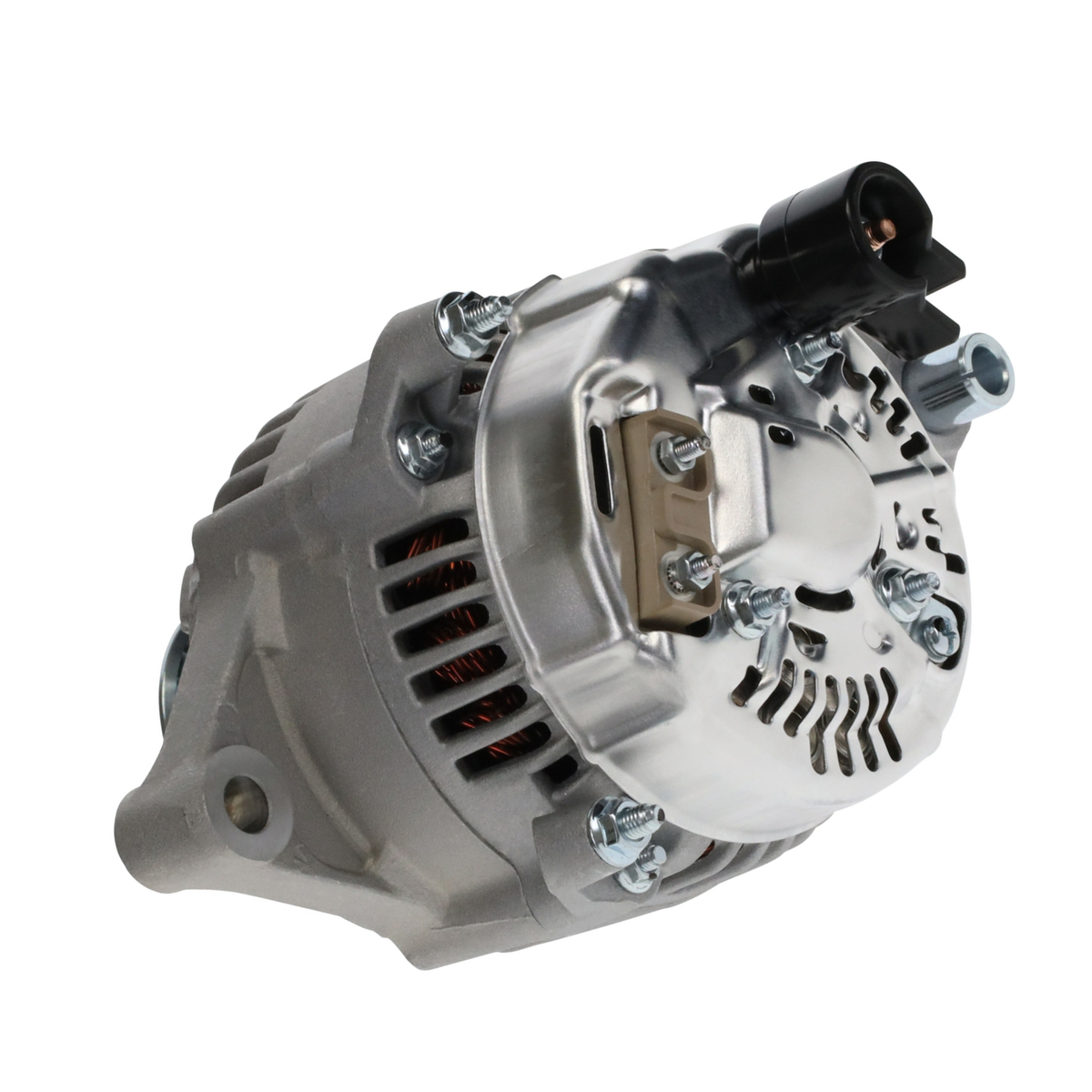

Alternator 75 Amp 1991-1998 Jeep Wrangler TJ Denso 121000-3440 - 13442

Jeep Truck - 75 Amp Option
TJ L4 2.5L 150cid 1997-1998
TJ L6 4.0L 242cid 1997-1998
Wrangler L4 2.5L 150cid 1991-1995
Wrangler L4 2.5L 150cid 1997-1998
Wrangler L6 4.0L 242cid 1991-1995
Wrangler L6 4.0L 242cid 1997-1998

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL6506X
Chrysler 56005684
Delphi RM4004
Denso 121000-3440
Excel 10002
Hollander 754D
Lester 13442
PIC# 290-302
Denso 211-0112
Remy Light Duty 13199
Wilson 90-29-5115

Manufacture DENSO
Amperage Rating 75
Decoupled Or Clutch Pulley No
Design ER/IF
Family 40/90
Fan Type Internal
OEM Manufacturer DENSO
Plug Clock 12
Plug Clock Rear View Main Mounting Ear At 6 O Clock 12
Plug Code 320
Plug Type 320
Pulley Belt Type Serpentine
Pulley Diameter 57
Pulley Groove Od 57
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type External
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

Bearings 53514 55222
Brush Holder Assy 74909202
Brushes 7390901
Connector 99901012
Cover 84909010 84909018
Frame, DE 76909202
Frame, SRE 75909202
Grommet 91904711
Insulator 92909010
Nut 95001451 95001505 9590001
Plug 9801320
Pulley 79909015
Rectifier 77904036
Regulator 80904430
Repair Kit 69901082
Retainer, Bearing 8590900
Rotor 70901208
Screw 96909065
Seal 91904712
Stator 72908502
Terminal Block 99901000
Test Lead, Alt 9800-EL
Thru Bolt 96909009
Washer, Spring 98909030


Alternator Kit
COVER DODGE 1 W015-04
COVER DODGE 1 W015-11

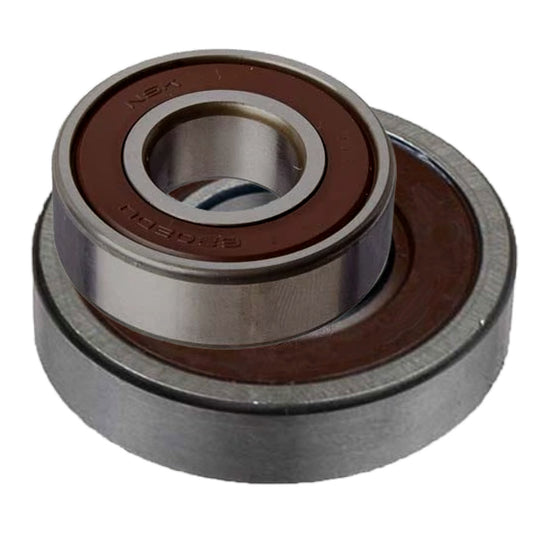

6202 D2RS BEARING-15x35x13mm W02X-20-1
333 2RS BEARING-17x52x16mm 1 W02X-49-1
BRUSH-5x7x15mm STANDARD 2 W035-04
PULLEY-13442 6GRV 57mm OD 1 W055-38
RECTIFIER M6 B+ 1 W065-142
RECTIFIER M6 1 W065-60
STATOR-ND INT FAN 90A 1 W105-13
FAN THRU BOLT 4 W115-14
BRG RETAINER SCREW-M4.5x18L 4 W115-204
REG SCREW-M4x0.7x25 W115-206
ROTOR BEARING COVER-TOP 1 W115-208
BRUSH SPRING-LATE 2 W115-219
TERMINAL BLOCK-F1-F2 1 W115-24
PULLEY NUT-14x1.5 FLANGE OE 1 W115-252N
RECT GROUND STUD-INT FAN 3 W115-27
INSULATOR STATOR LEAD-GRAY 4 W115-36
NUT 6x1.0mm 10mm HEX 1 W115-39
BRUSH HOLDER COVER RING 1 W115-41
WAVE WASHER RETAINING RING 1 W115-45
BEARING RETAINER-61mm OD 1 W115-54
BATTERY INSULATOR-CHRYSLER 1 W115-57
RECT GROUND STRAP-CHRYSLER 1 W115-59
SRE MOUNTING STUD-6mm 2 W115-77
BRUSH/RECT SCREW 4mm 7 W115-81
BEARING RETAINER-14611 SRE 1 W115-82
BRG RETAINER GASKET-INT FAN 1 W115-83
BRUSH HOLDER SEAL GREEN 1 W115-86
BRUSH HOLDER SEAL-13184 1 W115-96
DE FRAME-13910 1 W135-34
BRUSH HOLDER-13302 1 W155-08

This is a 75A Version of the 90A 13341. See 13341 For More Information.
