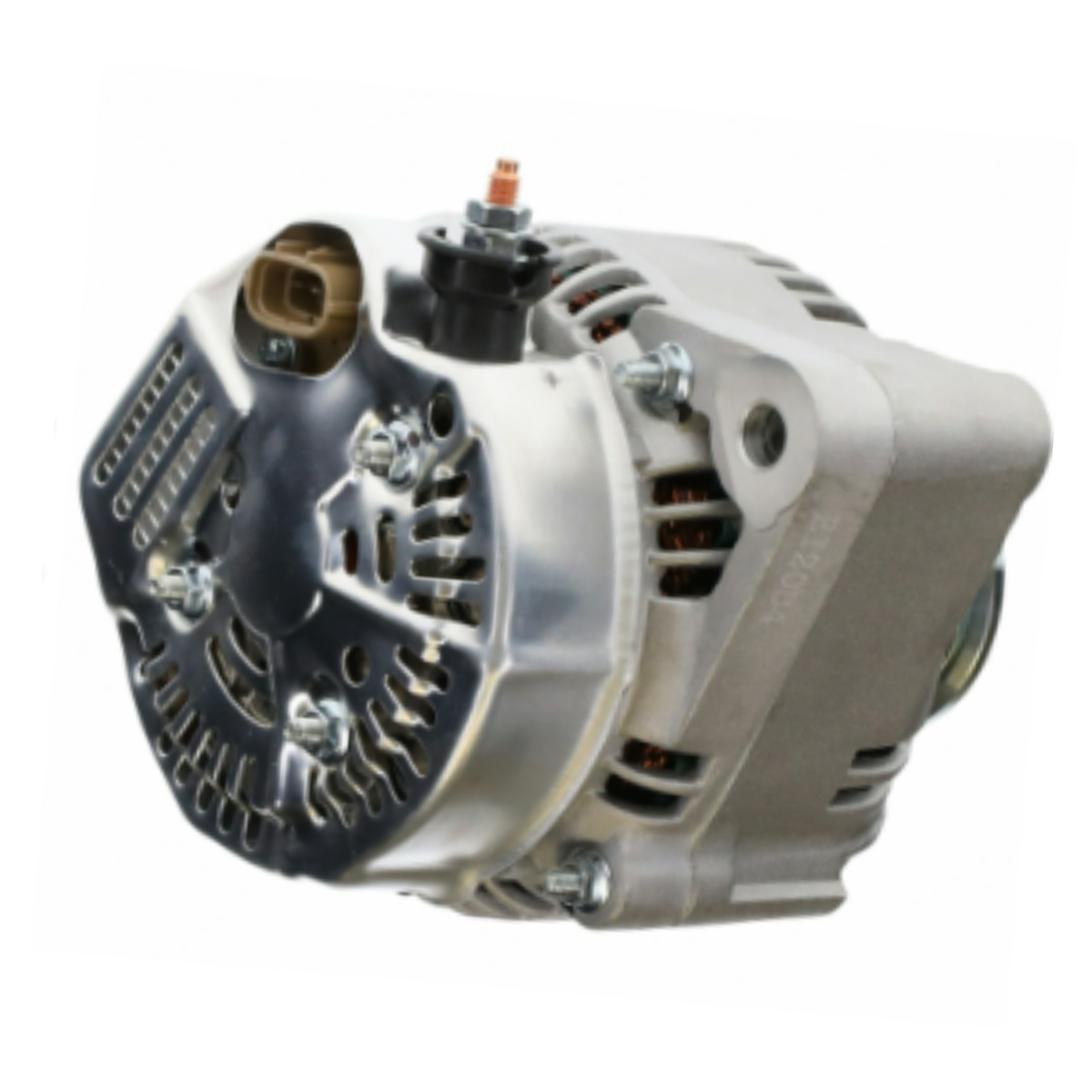

Alternator 1995-1996 T100 Tacoma 3.4L 101211-0730 101211-0731 - 13670

Toyota T100 V6 3.4L 1995-1996 60 Amp
Toyota Tacoma V6 3.4L 1995-1996 60 Amp

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL3283X
Delphi RM4079
Denso 101211-0730 101211-0731
Excel 10367
Hollander 58859
Toyota 27060-62110, 27060-62110-84
Other 13670

Manufacture DENSO
Amperage Rating 60
Decoupled Or Clutch Pulley No
Design IR/IF
Fan Type Internal
Ground Type Negative
Oe Manufacturer DENSO
Plug Clock Rear View Main Mounting Ear At 6 O Clock 4
Plug Code 312
Plug Type 312
Pulley Belt Type Serpentine
Pulley Diameter 55
Pulley Groove Quantity 4
Pulley Type S4
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

Alternator Rebuild Kit 13671RK
RECT COVER TOYOTA W015-14
6202 D2RS BEARING-15x35x13mm W02X-20-1

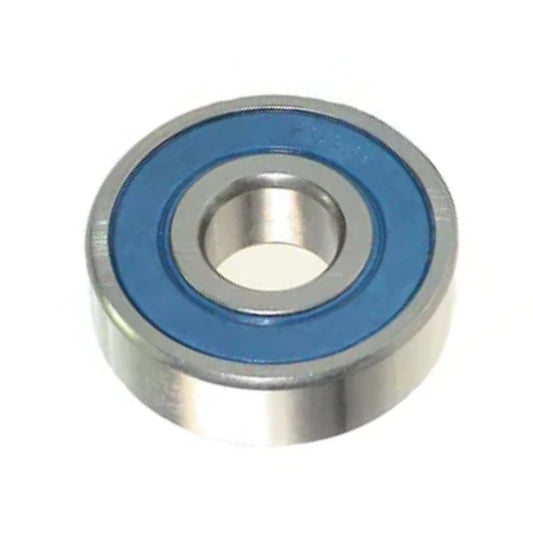

382 ND BEARING-15x52x16mm W02X-38-1
ALT BRUSH-5x7x15mm STANDARD W035-04
DISH DIODE-NEG 35A 400V 8.4mm W04X-59
DISH DIODE-POS 35A 400V 8.4mm W04X-60
PULLEY 4GRV57mm W055-16
RECT TOYOTA 100mm OD W065-15

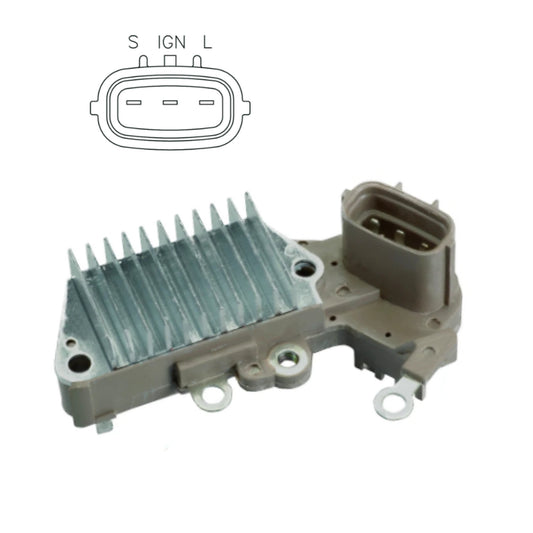

INT REG TOYOTA S-IG-L W085-188 T72017
STATOR-N\D INT FAN 118mm 70AMP W105-05
BRG RETAINER SCREW 4x.18mm W115-205
INT FAN REG SCREW-M4x0.7x25 W115-206
ROTOR BEARING SPACER-FLAT W115-207
ROTOR BEARING COVER-TOP W115-208
ROTOR BEARING COVER-TOP W115-208
BRUSH HOLDER GROMMET-LATE W115-22
BATTERY INSULATOR W115-40
WAVE WASHER RETAINING RING W115-45
BEARING RETAINER-GEO,TOYOTA W115-53
BRUSH/RECT SCREW 4mm W115-81
WIRE REPAIR HARNESS-OVAL PLUG W145-36
BRUSH HOLDER W155-04B
SLIP RING W/LEAD W165-00L
SLIP RING COLLAR-(1PC) W165-04
