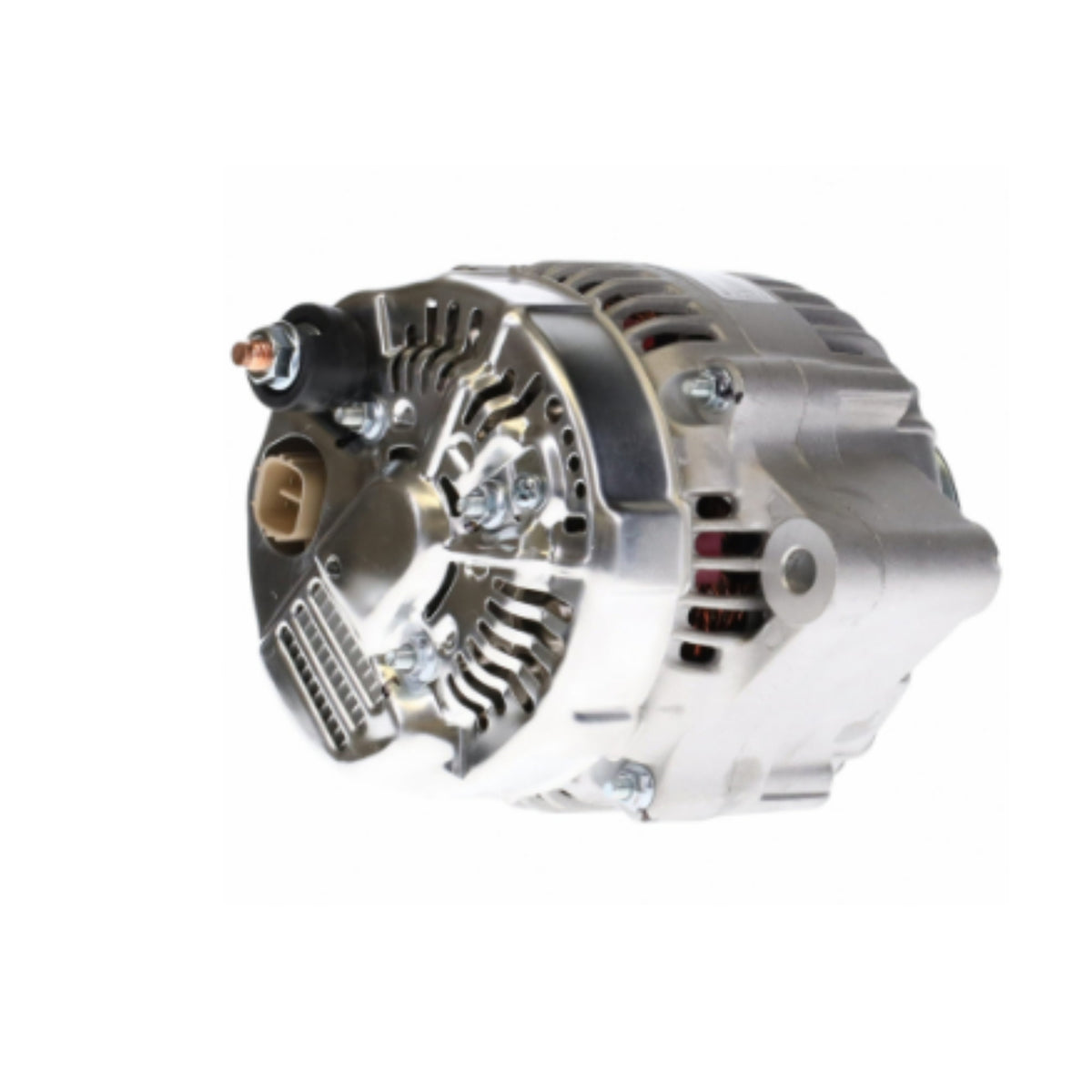

Alternator 1996-2004 Acura RL 3.5L 101211-7230 CLB54 - 13675

Acura RL 3.5L 1996-2004

Alternator Manufacturer and Factory #s
Acura 31100-P5A-003, CLB54, 31100P5A003
186-0833,
Denso 9761219-723, 101211-7230, 210-0204
Bosch AL1273X,
WAI Old 1-2054-01ND,
Lester 13675,
PIC # 290-487,
J&N 400-52336
Wilson 90-29-5329
Remy Light Duty 13372

Manufacture DENSO
Amperage Rating 110
Decoupled Or Clutch Pulley No
Fan Type Internal
Ground Type Negative
Oe Manufacturer DENSO
Plug Clock Rear View Main Mounting Ear At 6 O Clock 12
Plug Type 295
Pulley Belt Type Serpentine
Pulley Groove Quantity 5
Regulator Type Internal
Rotation Direction Clockwise (Right)
Voltage 12

Alternator Rebuild Parts List
Bearing 15x35x13mm 53514
Bearing 17x52x16mm 55222
Brush Holder w/Brushes 74909203
Brushes (2 Pack) 7390901
Brush Holder Cover / Shield 92909100
Brush Holder / Brushes Seal 91904710
Alternator Connector 99901012
Dust Shield Denso Alternators for SRE Bearing 92909043
Alternator Brush Holder Seal / Gasket 91904708
Grommets 91904711
Terminal Insulator 92909500
Flanged Nut M5 x 0.8  95001451
Nut, Hex, M14-1.5 95001505
Battery Terminal Nut M8 x 1.25  9590003
Alternator Pigtail Harness Repair Connector  9801295
Alternator Pulley 79909012
Rectifier 77904017

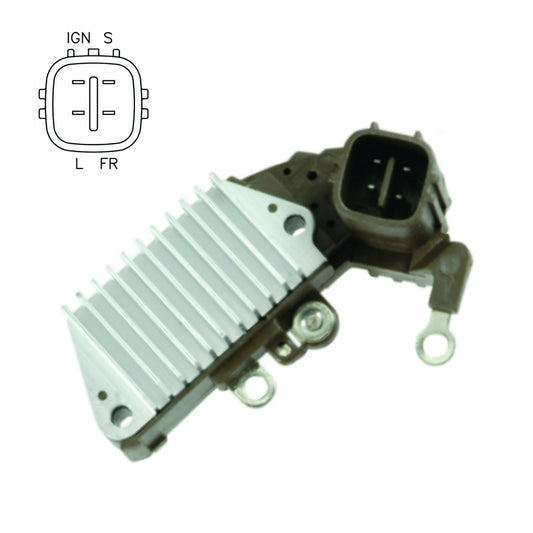

Regulator 80904422
 8590900

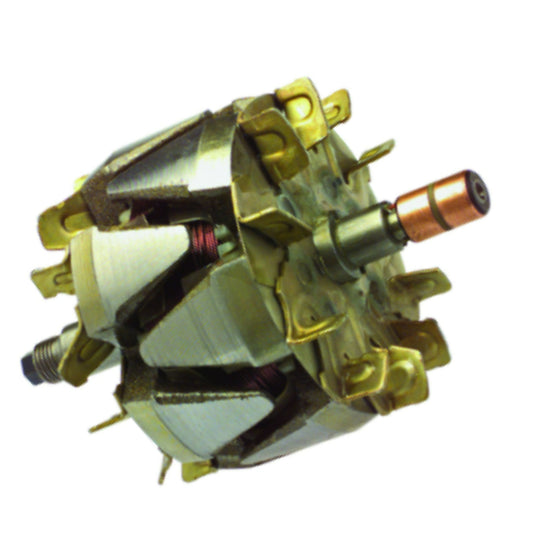

Rotor 7090655
Bearing Retainer Screw / Bolt 96909012
Screw 96909016
Screw 96909020
Bolt 96909063
Screw / Bolt 96909065
Slip Ring 7190904a

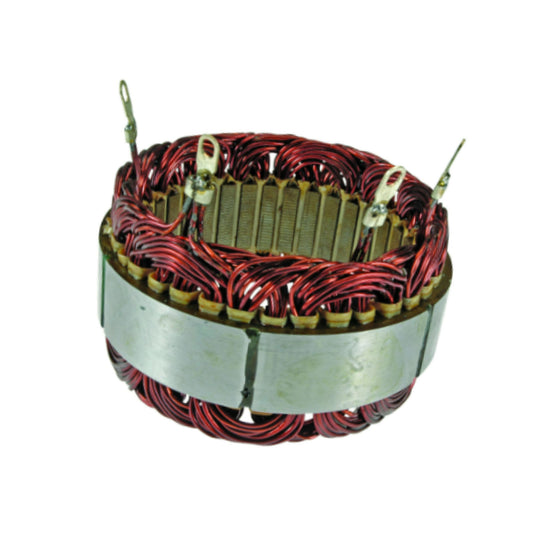

Stator 72908503
New Steel Stud, SRE Rectifier Heat Shield 96909003
Alternator Housing Assembly Stud 96909009
Lock Spring Washer  98909030
