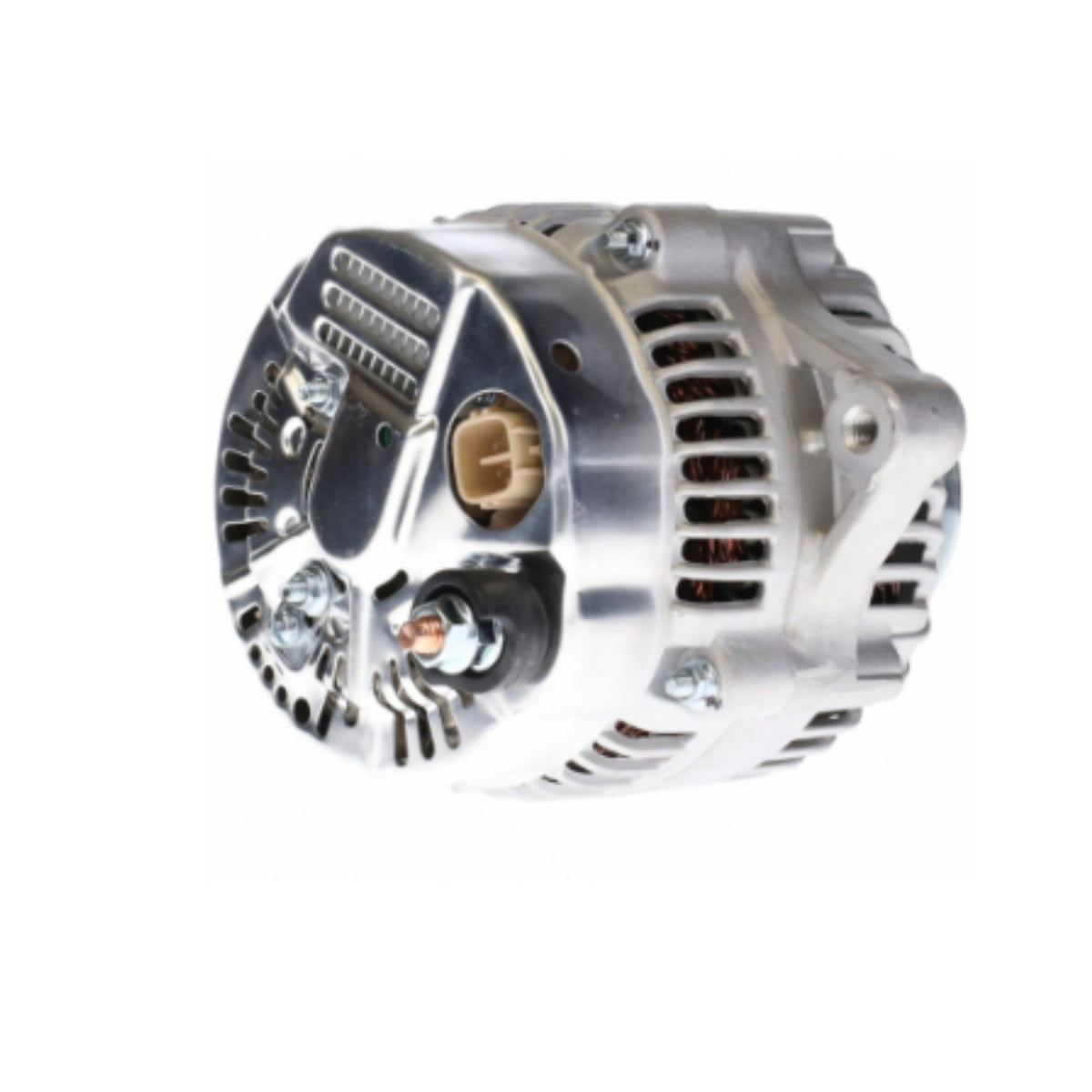

Alternator 1997-1998 Acura 3.2TL 31100-P5G-013, 31100-P5G-01301, CLB58 - 13738

Acura TL 3.2L 1997-1998

Alternator Manufacturer and Factory #s
Acura 31100-P5G-013, CLB58, 31100P5G013, 31100P5G01301, 31100P5G013RM
Denso 101211-7270, 9761219-727,
Lester 13738, 13738N,
Bosch AL1282X,
WAI Old 1-2121-01ND,
Wilson 90-29-5328,
PIC # 290-5005
J&N 400-52211
Remy Light Duty 12385


Manufacture DENSO
Amperage Rating 110
Decoupled Or Clutch Pulley No
Fan Type Internal
Ground Type Negative
Oe Manufacturer DENSO
Plug Clock Rear View Main Mounting Ear At 6 O Clock 12
Plug Type 295
Pulley Belt Type Serpentine
Pulley Groove Quantity 5
Regulator Type Internal
Rotation Direction Clockwise (Right)
Voltage 12

Alternator Rebuild Parts List
Bearing 15x35x13mm 53514
Bearing 17x52x16mm 55222
Brush Holder w/Brushes 74909203
Brushes (2 Pack) 7390901
Brush Holder Cover / Shield 92909100
Brush Holder / Brushes Seal 91904710
Alternator Connector 99901012
Dust Shield Denso Alternators for SRE Bearing 92909043
Alternator Brush Holder Seal / Gasket 91904708
Grommets 91904711
Terminal Insulator 92909500
Flanged Nut M5 x 0.8 95001451
Nut, Hex, M14-1.5 95001505
Battery Terminal Nut M8 x 1.25 9590003
Alternator Pigtail Harness Repair Connector 9801295
Alternator Pulley 79909012
Rectifier 77904017
Regulator 80904422
8590900
Rotor 7090655
Bearing Retainer Screw / Bolt 96909012
Screw 96909016
Screw 96909020
Bolt 96909063
Screw / Bolt 96909065
Slip Ring 7190904a
Stator 72908503
New Steel Stud, SRE Rectifier Heat Shield 96909003
Alternator Housing Assembly Stud 96909009
Lock Spring Washer 98909030
