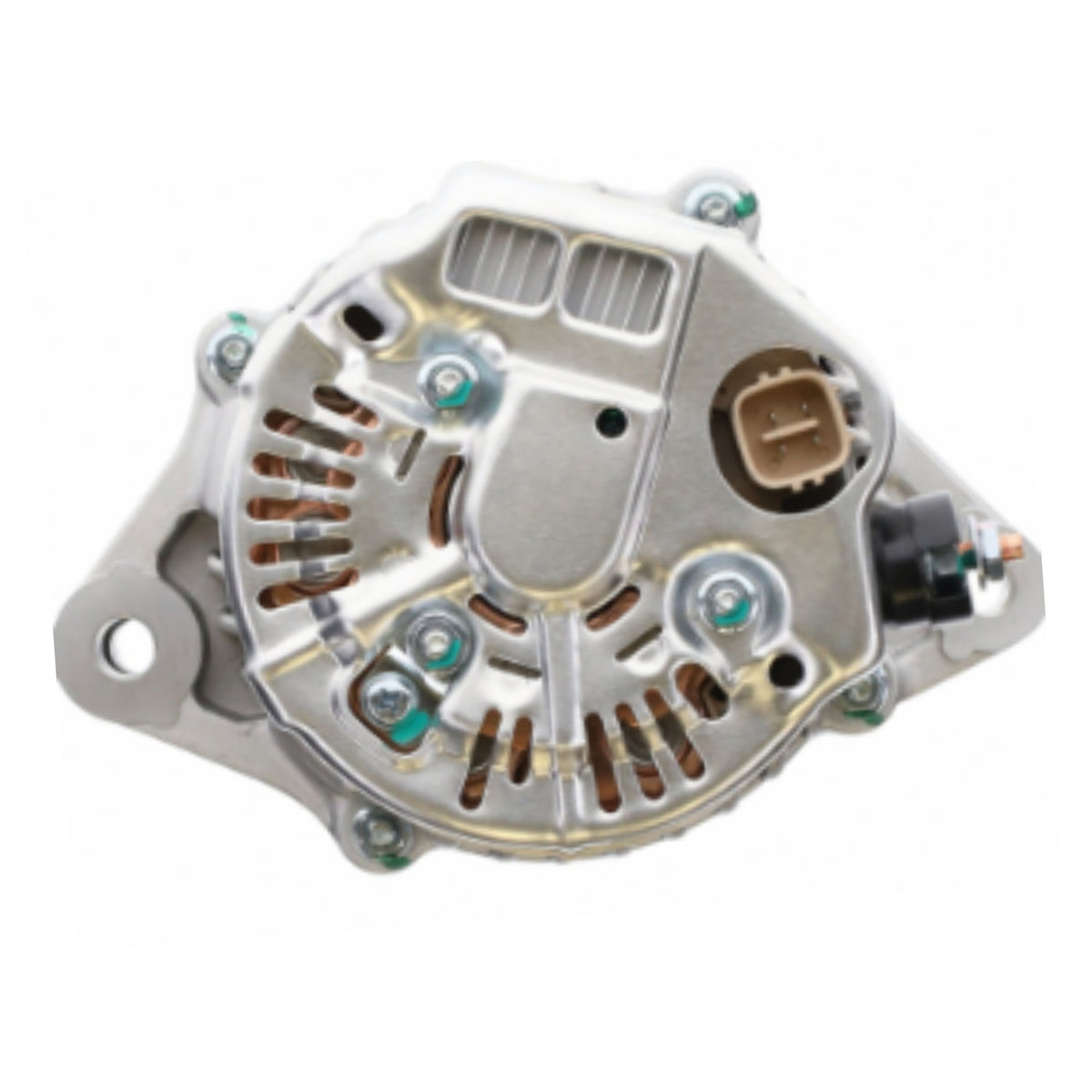

Alternator 1997-1998 Honda CR-V 2.0L 95 Amp 101211-9810, 101211-9970 - 13743

Honda CR-V L4 2.0L 1972CC 1997-1998

Alternator Manufacturer and Factory #s
ACDelco 334-1295, 334-1387
Bosch Aftermarket AL1286X (Reman)
DENSO 101211-981, 101211-9810, 101211-997, 101211-9970, 9761219-981, 210-0196
HC CARGO 113628
Honda 31100-P3F-013, 31100-P3F-A01, CJU81, CJU97
Lester 13743

Manufacture DENSO
Amperage Rating 95
Decoupled Or Clutch Pulley No
Fan Type Internal
Ground Type Negative
Oe Manufacturer DENSO
Plug Clock Rear View Main Mounting Ear At 6 O Clock 12
Plug Type 296
Pulley Belt Type Serpentine
Pulley Groove Quantity 4
Regulator Type Internal
Rotation Direction Counterclockwise (Left)
Voltage 12

Alternator Rebuilt Kit 1997-2001 Honda CR-V L4 2.0L - 13743RK-A IN445RK-A
Rotor SRE Bearing 15x35x13mm for Denso Alternator 6202 D2RS - 53514 10-2021-4
Drive End DE Bearing 17x52x16mm Denso Alternator 333 2RS - 55222 10-3042-4
Alternator Brush Holder w/Brushes Denso 021620-2720 27370-42010 - 74909203 W155-10 39-8203
Alternator Brushes Nippondenso (2 Pack) - 7390901 W035-04 38-8201x2
Alternator Brush Holder Cover / Shield for Denso - 92909100
Seal for Alternator Brush Holder/ Brushes Seal, Ref 021626-0131, 021626-0220 - 91904710
Alternator Brush Spring for Denso 5.4 x 30mm - 92001005
Alternator Connector, Rectifier to S.R.E. Cover on Denso - 99901012 W115-59 - 46-82300x2
Dust Shield Denso Alternators for SRE Bearing - 92909043 W115-208 - 46-82700
Alternator Brush Holder Seal / Gasket, 1.9mm Thick - 91904708 41-82101 - W115-96
Grommet x4 Stator Lead on Denso Alternators Ref# 021605-1970 - 91904711 41-82302 - W115-36x4
Flanged Nut M5 x 0.8 5CNCKZ, NK2300-5 - 95001451
Nut, Hex, M14-1.5, 6.9mm Thick - 95001505 W110-29
Nut M6-1.0 - 9590001
Pigtail Lead Connector Acura Honda 4 Wire / Wire: C FR IG L - 9801296
HD Rectifier for Denso Units on Acura, Honda, Lexus, Toyota - 77904014 W065-89

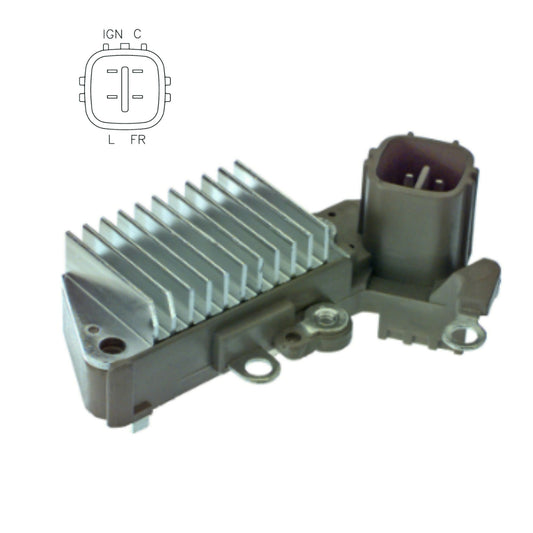

Voltage Regulator for Honda Ref 126000-2090, -2160, -2170, -2470, -2610, -3030 - 80904424 W085-174 T7445
Bearing Retainer 61mm OD (021411-0570) - 8590900 W115-54
Bearing Retainer Bolt M4.5 x 0.75 x 18mm L, 7mm drive - 96909012 85-1208 W115-204x4
Rectifier Brush Holder Screw M4 x 0.7 x 5.7mm L for Denso 949006-5460, 949007-3370, -3930, -6280 - 96909016 W115-81
Bolt M4 x 0.7 x 25mm L (Ref 1123433005) -96909063 85-1210 - W115-206x2
Screw / Bolt, M5-0.8, 9mm Long, Hex Washer Head - 96909065,
Slip Ring Commutator for Denso Alternators 8.8mm ID x 14.5mm OD - 7190904a W165-00L 28-82853
Stator for 70-90 Amp 12 Volt Denso Alternator 92mm ID x 118mm - 72908502 W105-13
Stud, SRE Rectifier Heat Shield on Denso Alternators - 96909003
Housing Assembly Stud for Denso Internal Fan Alternator - 96909009 85-1403 W115-14x4
Lock Spring Washer, 24.5mm ID x 35.2mm OD, For Denso 021542-0041, -0120, -0160 - 98909030 46-82802 - W115-45x2
BRUSH HOLDER INSULATOR SEAL 1 W115-37 41-82306 91904713 W115-37
NUT 6x1.0mm 10mm HEX 1 W115-39 95001452 W115-39, 85-2309x5
COVER 1 W015-32
DISH DIODE-POS 35A 400V 9.7mm 4 W04X-18
DISH DIODE-NEG 35A 400A 9.7mm 4 W04X-19

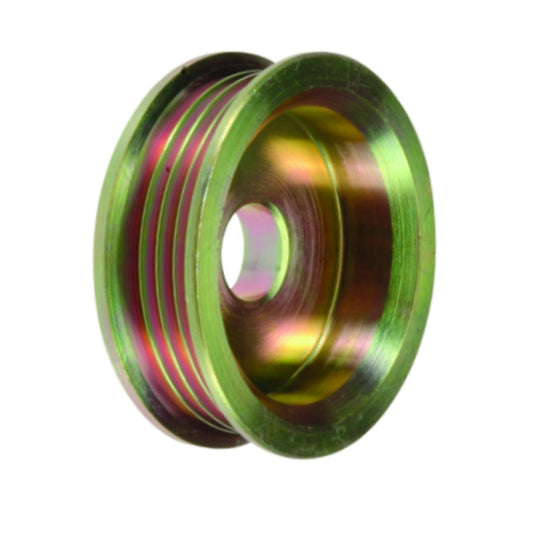

PULLEY-13743 4GRV 65mm OD 1 W055-52

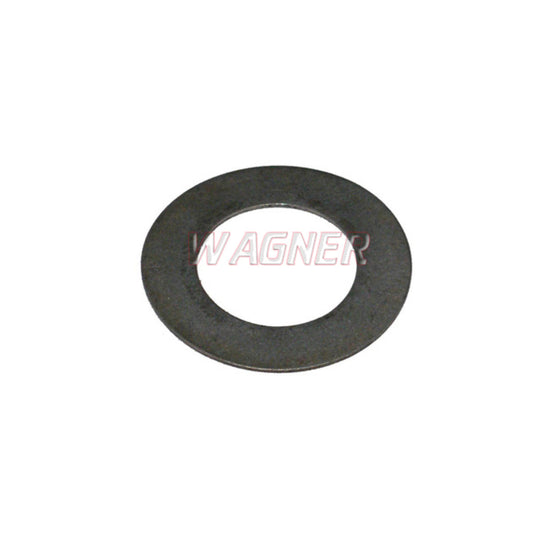

ROTOR BEARING SPACER-FLAT 1 W115-207
BRUSH HOLDER COVER RING 1 W115-41
BATTERY INSULATOR-13325 1 W115-48
