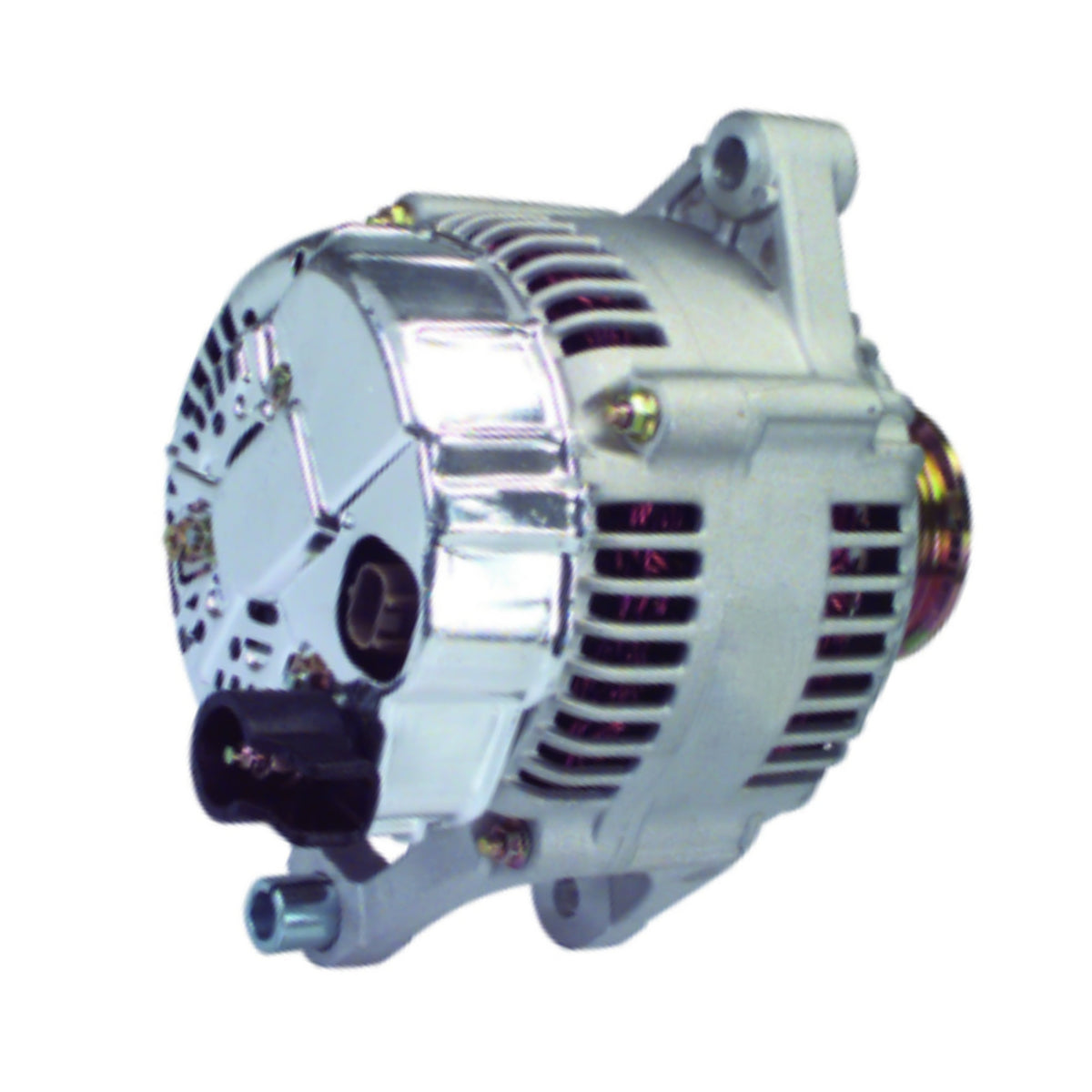

Alternator, 136 Amp 1999 2000 RAM Truck Durango Dakota 121000-4290, -4291, 121000-4350, -4351 - 13824

Dodge Truck
Dakota V6 3.9L 3906cc 239cid 1999-2000
Dakota V8 5.2L 5211cc 318cid 1999
Dakota V8 5.9L 360cid 1999-2000
Durango V6 3.9L 3906cc 239cid 1999
Durango V8 5.2L 5211cc 318cid 1999-2000
Durango V8 5.9L 360cid 1999-2000
Ram 1500 V6 3.9L 3906cc 239cid 1999-2000
Ram 1500 V8 5.2L 5211cc 318cid 1999-2000
Ram 1500 V8 5.9L 360cid 1999-2001
Ram 2500 V10 8.0L 7990cc 488cid 1999-2000
Ram 2500 V8 5.2L 5211cc 318cid 2001
Ram 2500 V8 5.9L 360cid 1999-2001
Ram 3500 V10 8.0L 7990cc 488cid 1999-2000
Ram 3500 V8 5.9L 360cid 1999-2000
Ram 4000 V8 5.9L 360cid 1999-2000
Ramcharger V8 5.2L 5211cc 318cid 1999-2000
Ramcharger V8 5.9L 360cid 2000
Dodge Van
Ram 1500 Van V6 3.9L 3906cc 239cid 1999-2000
Ram 1500 Van V8 5.2L 5211cc 318cid 1999-2000
Ram 1500 Van V8 5.9L 360cid 1999-2000
Ram 2500 Van V8 5.2L 5211cc 318cid 1999-2000
Ram 2500 Van V8 5.9L 360cid 1999-2000
Ram 3500 Van V8 5.2L 5211cc 318cid 1999-2000
Ram 3500 Van V8 5.9L 360cid 1999-2000

Alternator Manufacturer and Factory #s
Beck Arnley New 188-0952
Beck Arnley Remanufactured 186-0952
Bosch Remanufactured AL6533X
Chrysler 56027913AC, 56028920AA, 56028920AA1, 05104763AA, 5104763AA, 56027913AB, RL104763AA
Delphi RM4125
Denso 121000-4350, 121000-4351, 121000-4290, 121000-4291
Excel 10083
Hollander 753G
Lester 13824
Lucas Electrical Europe LRA01161
Pic 290-5104, 290-5104A

Manufacture DENSO
Amperage Rating 136
Decoupled Or Clutch Pulley No
Design ER/IF
Fan Type Internal
Ground Type Negative
Oe Manufacturer DENSO
Plug Clock Rear View Main Mounting Ear At 6 O Clock 3
Plug Code 363
Plug Type 363
Pulley Belt Type Serpentine
Pulley Diameter 58
Pulley Groove Quantity 7
Pulley Type S7
Regulator Type External
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

Alternator Rebuild Kit 13824RK-A
RECT COVER DODGE 1 W015-37 84909017
6202 D2RS BEARING-15x35x13mm W02X-20-1 53514
333 2RS BEARING-17x52x16mm W02X-49-1 55222
ALT BRUSH-5x7x15mm STANDARD W035-04
DISH DIODE-NEG 50A 400V 9.7mm W04X-47
DISH DIODE-POS 50A 400V 9.7mm W04X-48
PULLEY 7GRV 57mm OD W055-51 79909017

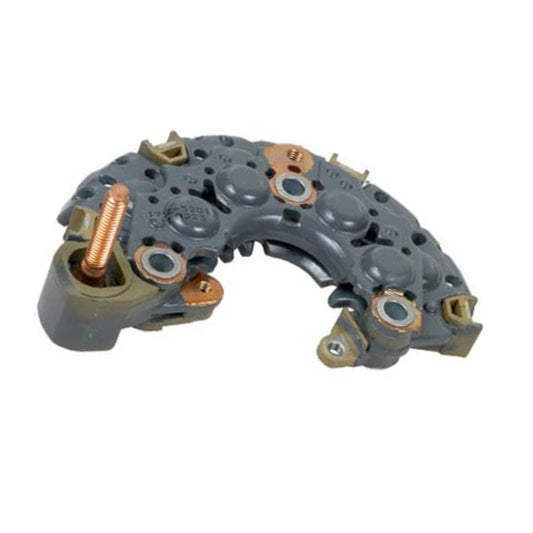

RECTIFIER CHRYSLER M6 W065-128 77904012
STATOR-CHRYSLER W105-14
FIELD TERMINAL BLOCK 1 W115-137 99901001
pLUG 9801363
B+ TERMINAL INSULATOR 1 W115-138 92909519
RETAINER SCREW-M4.5x18L W115-204
PULLEY NUT-14x1.5 FLANGE OE W115-252N
INSULATOR STATOR LEAD-GRAY W115-36
BRUSH HOLDER INSULATOR SEAL W115-37
BRUSH HOLDER COVER RING W115-41
WAVE WASHER RETAINING RING W115-45 98909030
BEARING RETAINER-61mm OD W115-54
RECT GROUND STRAP-CHRYSLER W115-59
SRE MOUNTING BUSHING-CHRY W115-75
BRUSH/RECT SCREW 4mm W115-81
BRUSH HOLDER SEAL-13184 W115-96
BRUSH HOLDER W155-08 74909202
BRUSH HOLDER 1 W155-08B
SLIP RING W/LEAD W165-00L
Connector 99901012
Frame, DE 76909206
Frame, SRE 75909222
Gasket 91904708
Grommet 91904711
Nut 95001451 95001505 9590001
Repair Kit 69901081
Retainer, Bearing 8590900
Rotor 70905135
Screw 96909012 96909016 96909063 96909065
Seal 91904713
Stator 72908503
Thru Bolt
