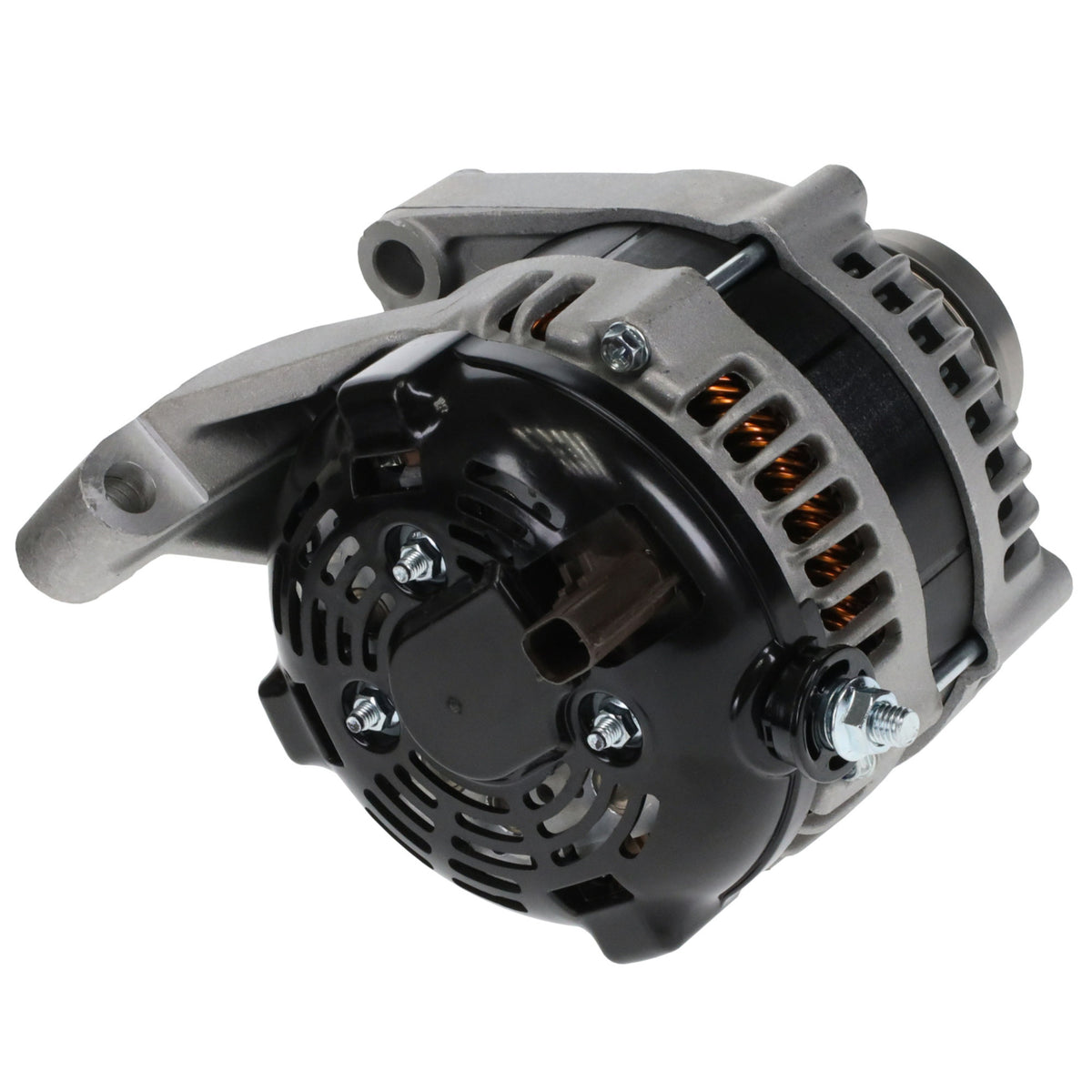

Alternator 160 Amp 2001-2007 Grand Caravan Town and Country - 13870

160 Amp Denso Option for
Chrysler Town & Country V6 3.3L 2001-2007
Chrysler Town & Country V6 3.8L 2001-2007
Chrysler Voyager V6 3.3L 2001-2007
Dodge Caravan V6 3.3L 2001-2007
Dodge Grand Caravan V6 3.3L 2001-2007
Dodge Grand Caravan V6 3.8L 2001-2007

Alternator Manufacturer and Factory #s
Beck Arnley Remanufactured 186-6414
Bosch Remanufactured AL6550X, AL6550X315, AL6468X
Chrysler 04868430AB, 04868430AC, 04868430AD, 04868430AE, 04868430AF, 4686430AF, 4868430AB, 4868430AC, 4868430AD, 4868430AE, 4868430AF, R4868430AE, 04868430AH, 4868430AH, RL868430AH
Denso 421000-0021, 421000-0022, 421000-0023, 421000-0024, 421000-0025, 421000-0026, 421000-0027, 421000-0028, 421000-0492, 421000-0493
Excel 10098
Hollander 903B
Lester 13870
PIC# 290-5118 290-5118A

Manufacture DENSO
Amperage Rating 160
Decoupled Or Clutch Pulley Yes
Design ER/IF
Fan Type Internal
Ground Type Negative
Mfr Series HAIRPIN
OEM Manufacturer DENSO
Plug Clock 10
Plug Clock Rear View Main Mounting Ear At 6 O Clock 10
Plug Code 362
Plug Type 362
Pulley Belt Type Serpentine
Pulley Diameter 0
Pulley Groove Od 0
Pulley Groove Quantity 6
Pulley Type SD6
Regulator Type External
Rotation Direction Clockwise (Right)
Series HAIRPIN
Stator Type Hairpin
Type Alternator
Voltage 12

Alternator Rebuild Kit - 13870RK-A
Bearings 53514 54700
Brush Holder Assy 74909204 74909206
Brushes 7390901 38-8201x2
Clutch Pulley 79909044C
Cover or Shield 92909043

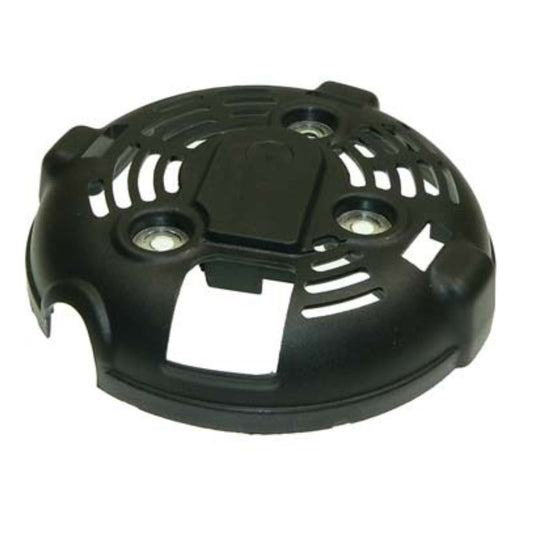

Cover 84909030 84909058 92909044 84909054
Decoupler Pulley 79909044 79909044C
Frame, DE 76909237
Frame, SRE 75909292
Gasket 91904708 91904709
Harness Wire 98909040
Insulator 92909524 92909510
Nut 95001451
Plug 9801362

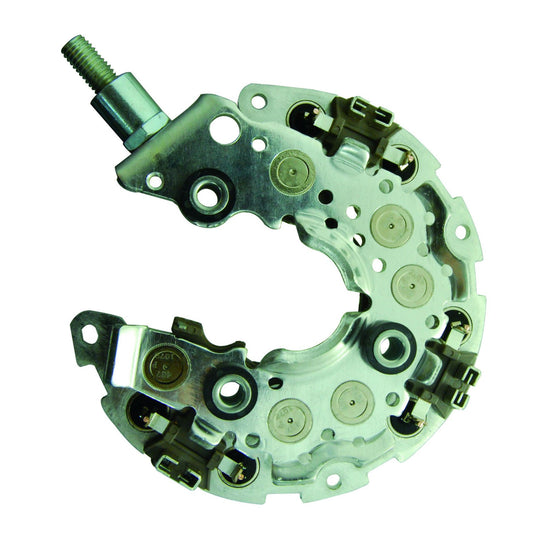

Rectifier 77904033
Repair Kit, 69901086
Retainer, Bearing, 8590901
Rotor 70905161
Screw 96909016
Slip Ring, 7190904 7190904b
Stator 72908511
Terminal Block, Alt 99901004
Thru Bolt 96909100
Washer, Spring 98909030

There are several OEM numbers manufactured for this alternator. Pretty much the same alternator as a complete unit, but will have a different brush holder assembly, slip ring, cover depending on the OEM # you have. Please match up visually or if you still have the OEM tag, look at the full description of the component you need to make sure you see your part # - Thank you
