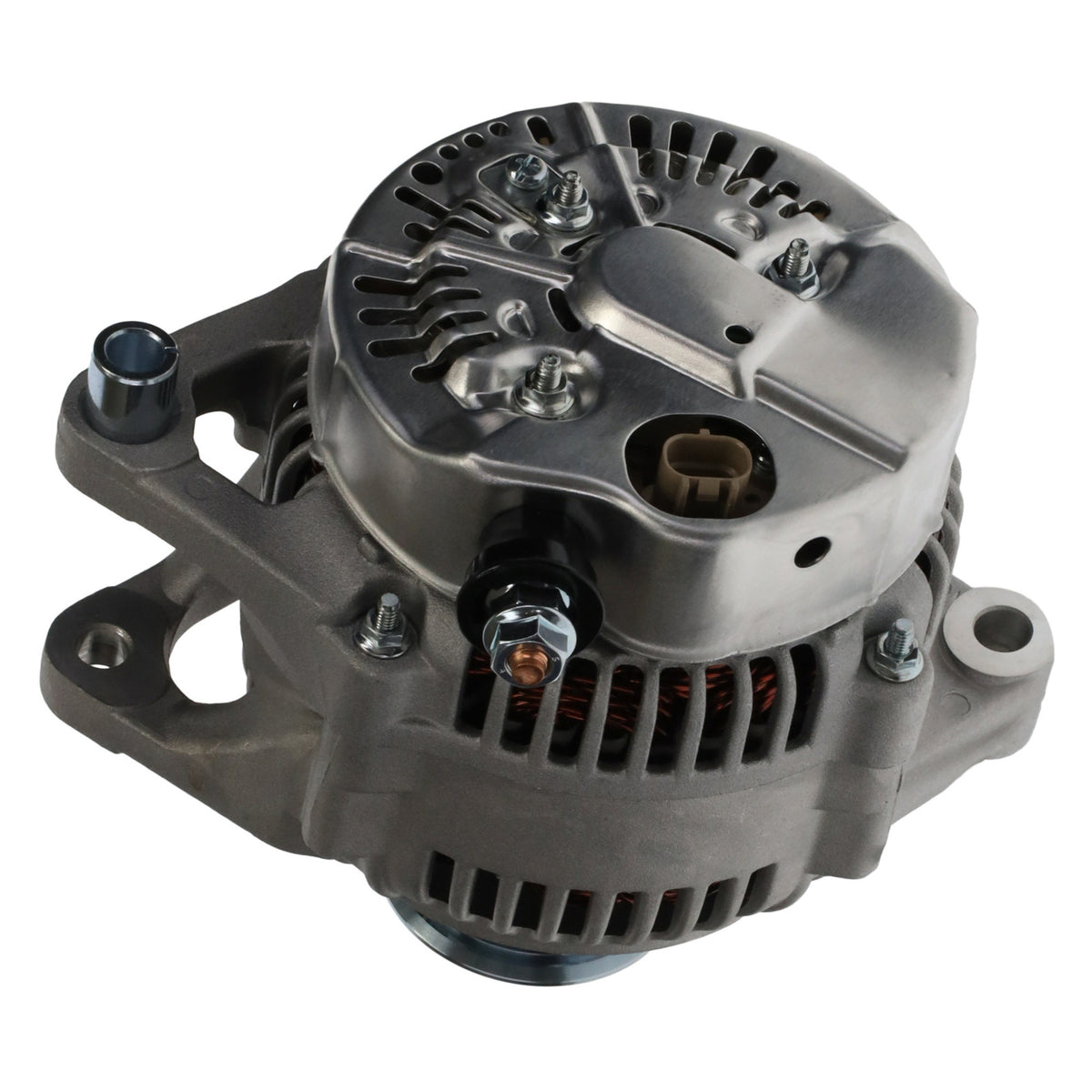

Alternator 136 Amp 2001-2002 Ram 2500 3500 5.9L Dsl 121000-4481 - 13874

Dodge Truck
Ram 2500 L6 5.9L 359cid 2001-2002 136 Amp Denso
Ram 3500 L6 5.9L 359cid 2001-2002 136 Amp Denso

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL6533X
Chrysler 5104772AA, 56027221AD, 56027221AD1
Denso 121000-4481, 210-0479
Excel 10607
Lester 13874
PIC# 290-5125
JN 400-52150
Wilson 90-29-5483

Manufacture DENSO
Amperage Rating 136
Decoupled Or Clutch Pulley No
Design ER/IF
Fan Type Internal
Ground Type Negative
OEM Manufacturer DENSO
Plug Clock 3
Plug Clock Rear View Main Mounting Ear At 6 O Clock 3
Plug Code 363
Plug Type 363
Pulley Belt Type Serpentine
Pulley Diameter 60
Pulley Groove Od 60
Pulley Groove Quantity 8
Pulley Type S8
Regulator Type External
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

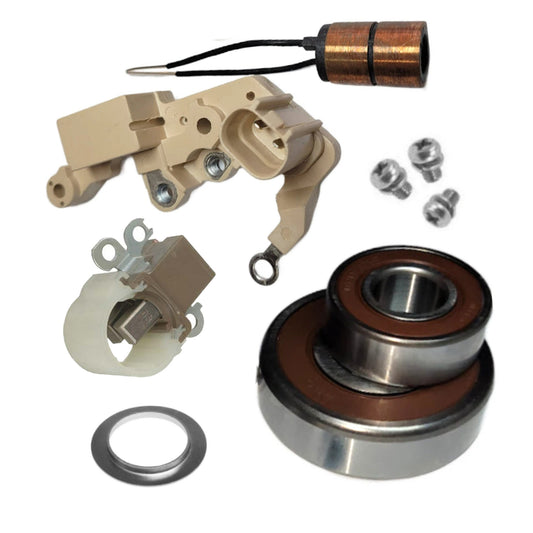

Alternator Rebuild Kit 13874RK-A
Bearings 53514 55222
Brush Holder Assy 74909202
Brush 7390901
Cover 84909041
Frame, DE 76909206
Insulator 92909520
Plug Code 9801363
Pulley 79909023
Rectifier 77904016
Repair Kit 69901085
Retainer 8590900
Rotor 70905135
Slip Ring 7190904
Stator 72908503
Terminal Block 99901001
COVER JEEP 1 W015-36
6202 D2RS BEARING-15x35x13mm 1 W02X-20-1
333 2RS BEARING-17x52x16mm 1 W02X-49-1
BRUSH-5x7x15mm 2 W035-04
DISH DIODE-POS 35A 400V 9.7mm 4 W04X-18
DISH DIODE-NEG 35A 400A 9.7mm 4 W04X-19
PULLEY 8GRV 60mm OD 1 W055-63
RECTIFIER M8 B+ 1 W065-127
STATOR 1 W105-14
TERMINAL BLOCK 1 W115-137
THRU BOLT 4 W115-14
B+ INSULATOR 1 W115-168
BRG RETAINER SCREW-M4.5x18L 4 W115-204
REG SCREW-M4x0.7x25 2 W115-206
BEARING COVER-TOP 1 W115-208
ALT BRUSH SPRING-LATE 2 W115-219
PULLEY NUT-14x1.5 FLANGE OE 1 W115-252N
INSULATOR STATOR LEAD-GRAY 1 W115-36
BRUSH HOLDER INSULATOR SEAL 1 W115-37
BRUSH HOLDER COVER RING 1 W115-41
WAVE WASHER RETAINING RING 1 W115-45
BEARING RETAINER-61mm OD 1 W115-54
RECT GROUND STRAP 1 W115-59
BRUSH/RECT SCREW 4mm 4 W115-81
BRUSH HOLDER SEAL GREEN 1 W115-86
BRUSH HOLDER SEAL 1 W115-96
SRE FRAME 1 W125-89
DE FRAME 1 W135-36
BRUSH HOLDER 1 W155-08
SLIP RING W/LEAD 1 W165-00L
