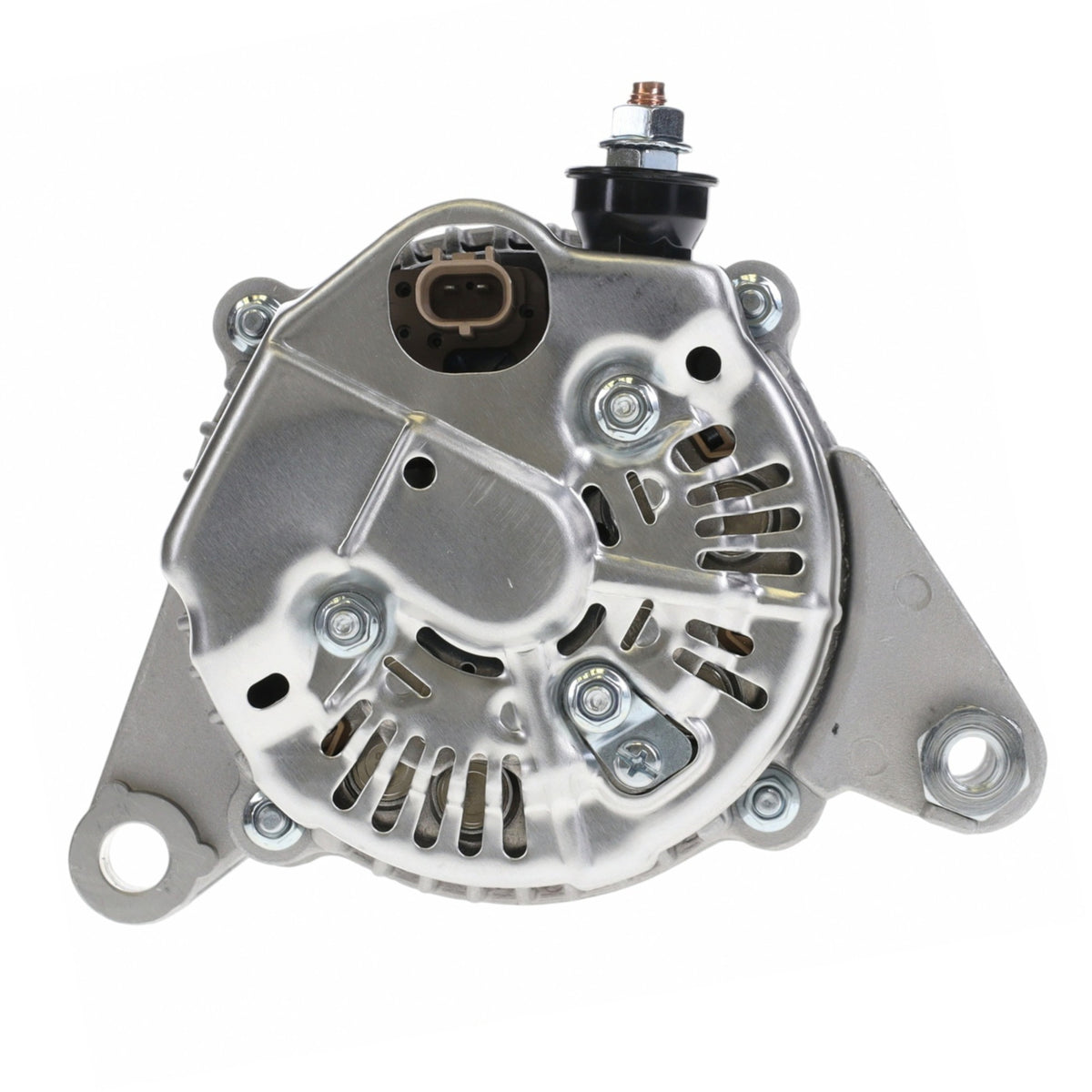

Alternator 2001-2006 Jeep Wrangler Truck 4.0L - 13876

Jeep Truck TJ L6 4.0L 2001-2006
Wrangler L6 4.0L 2001-2006

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL6445X
Chrysler 56041864AA, 56041864AB, 56041864AB1
Denso 121000-3820, 121000-3821, 210-0475
JN 400-52100
Wilson 90-29-5557
Excel 10629
Hollander 941
Jeep-Eagle R6041864AB
Lester 13876
PIC# 290-5113

Manufacture DENSO
Amperage Rating 117
Decoupled Or Clutch Pulley No
Design ER/IF
Family 40/90
Fan Type Internal
Ground Type Negative
OEM Manufacturer DENSO
Plug Clock 2
Plug Clock Rear View Main Mounting Ear At 6 O Clock 2
Plug Code 363
Plug Type 363
Pulley Belt Type Serpentine
Pulley Diameter 55.0
Pulley Groove Od 55.0
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type External
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

Alternator Rebuild Kit 13876RK-A
Bearings 53514 55222
Brush Holder Assy 74909202
Connector 99901012
Cover 92909044
Gasket 91904708
Grommet 91904711
Insulator 92909520
Nut 95001451 95001505 9590003
Plug 9801363
Pulley 79001006
Rectifier 77904020
Repair Kit 69901084
Retainer, Bearing 8590900
Rotor 70901208
Screw 96909012 96909016 96909063 96909065
Seal 91904713
Stator 72908515
Terminal Block 99901001
Thru Bolt 96909009
Washer, Spring 98909030
COVER 1 W015-41
6202 D2RS BEARING-15x35x13mm 1 W02X-20-1
333 2RS BEARING-17x52x16mm 1 W02X-49-1
BRUSH-5x7x15mm STANDARD 2 W035-04
DISH DIODE-POS 35A 400V 9.7mm 4 W04X-18
DISH DIODE-NEG 35A 400A 9.7mm 4 W04X-19
PULLEY 6GRV 57mm OD 1 W055-38
RECTIFIER M8 B+ 1 W065-124
STATOR-ND INT FAN 90A 1 W105-13
ND FIELD TERMINAL BLOCK 1 W115-137
THRU BOLT 4 W115-14
B+ INSULATOR DODGE 1 W115-168
RETAINER SCREW-M4.5x18L 4 W115-204
INSULATOR STATOR LEAD-GRAY 4 W115-36
BRUSH HOLDER INSULATOR SEAL 1 W115-37
BRUSH HOLDER COVER RING 1 W115-41
BEARING RETAINER-61mm OD 1 W115-54
BRUSH HOLDER SEAL 1 W115-96
BRUSH HOLDER1 W155-08
SLIP RING W/LEAD 1 W165-00L
