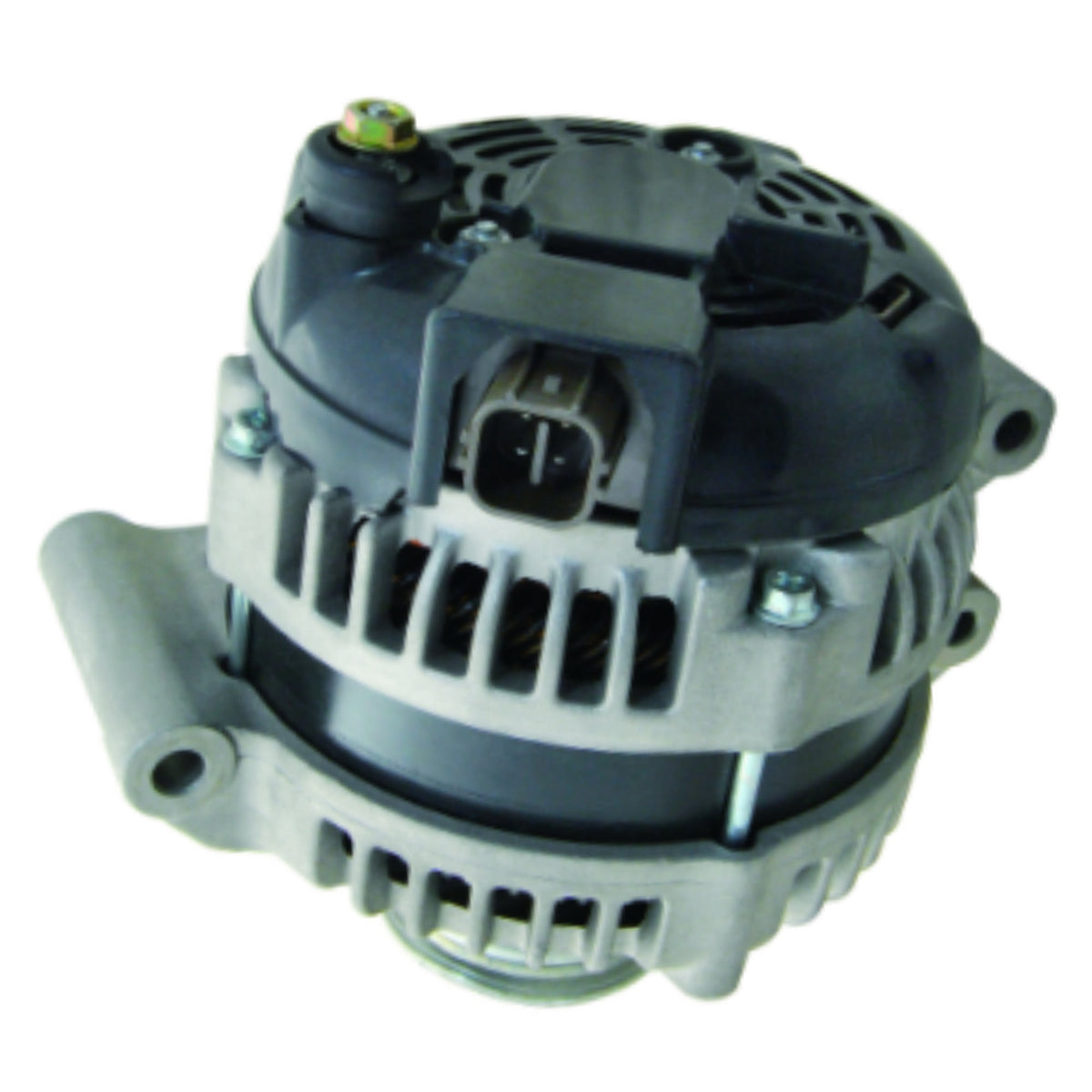

Alternator 2.4L Acura TSX Accord Element 104210-3290, 104210-3291, 104210-3292, 104210-3293 - 13980

Acura Car
CSX L4 2.0L 1998cc 2006-2008
TSX L4 2.4L K24A2 2354cc 2004-2005
TSX L4 2.4L K24A2 2354cc 2006-2008
Honda Car
Accord L4 2.4L K24A4 2354cc 2003-2005
Accord L4 2.4L K24A8 2354cc 2006-2007
Civic L4 2.0L 1998cc 2006-2010
Honda Truck
CR-V L4 2.4L K24Z1 2354cc 2007-2009
Element L4 2.4L K24A4 2354cc 2003-2006
Element L4 2.4L K24A8 2354cc 2007-2009

Alternator Manufacturer and Factory #s
ACDelco 334-1502
Acura 06311-RAA-505RM, 31100-RAA-A01, 31100-RAA-A03, 31100-RAA-A03RM, 31100-RAA-A04, 31100-RAA-A05, CSC29; 31100-RTA-003, 31100-RTA-013, 31100-RTA-023, CSD73
Arrowhead AND0257
Bosch Aftermarket AL1298N (New), AL1298X (Reman)
Bosch Service Europe 0-986-UR0-855; 0-98-6CR-0855, 0-986-CR0-855
Denso 104210-3290, 104210-3291, 104210-3292, 104210-3293, TN104210-3291, TN104210-3293; 104210-473, 104210-4730, 104210-4731, 104210-4732
DENSO Auto Parts Aftermarket 210-0511, 210-0609
Excel 10680
HC CARGO 114272
Hollander 50108 60853
Honda 06311-RAA-505RM, 31100-RAA-A01, 31100-RAA-A03, 31100-RAA-A03RM, 31100-RAA-A04, 31100-RAA-A05, CSC29; 31100-RTA-003, 31100-RTA-013, 31100-RTA-023, CSD73
Lester 13980
PIC# 290-5096A

Manufacture DENSO
Amperage Rating 100
Decoupled Or Clutch Pulley No
Design IR/IF
Fan Type Internal
Ground Type Negative
Mfr Series HAIRPIN
OE Manufacturer DENSO
Plug Clock 10
Plug Clock Rear View Main Mounting Ear At 6 O Clock 10
Plug Code 296
Plug Type 296
Pulley Belt Type Serpentine
Pulley Diameter 60
Pulley Groove Od 60
Pulley Groove Quantity 7
Pulley Type S7
Regulator Type Internal
Rotation Direction Clockwise (Right)
Series HAIRPIN
Stator Type Hairpin
Type Alternator
Voltage 12

Alternator Rebuild Kit 13980RK-A
Bearings 53514 54700
Brush Holder Assy 74909206 39-8206
Brushes 7390901 W035-04A 38-8201x2
Cover or Shield 92909043 W015-53

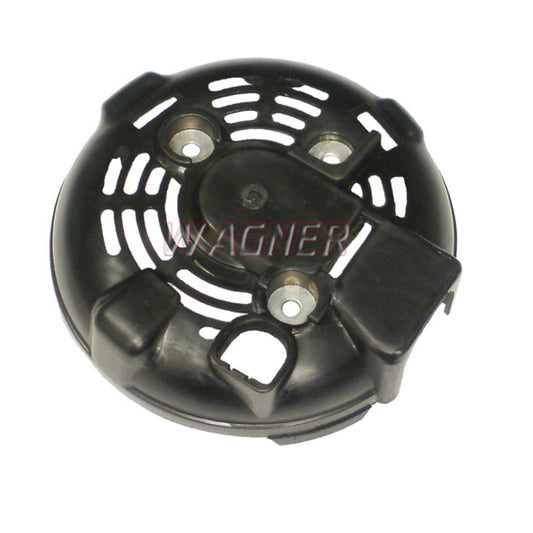

Cover 84909039 84909039A W115-208
Diode, Neg 7700247
Diode, Pos 7700246
Frame, DE 76909246
Frame, SRE 75909287
Insulator 92909526 W115-163
Nut 95001451 95001452 95001505 W110-29 W115-181 W115-252N

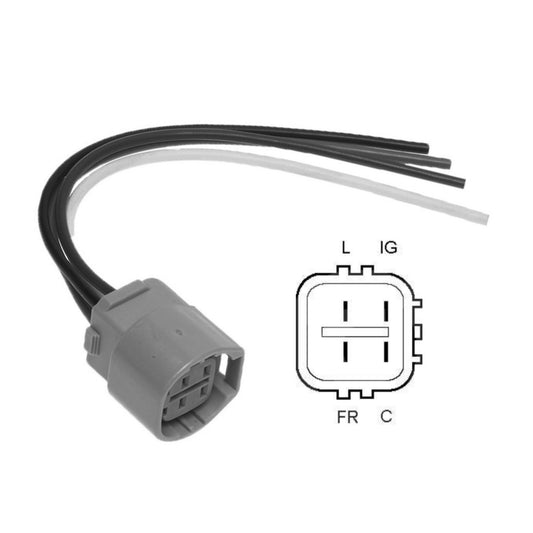

Plug 9801296

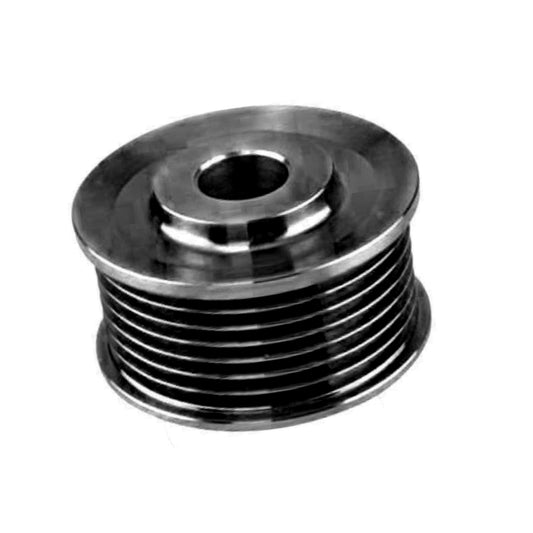

Pulley 79909073 79909074 W055-74

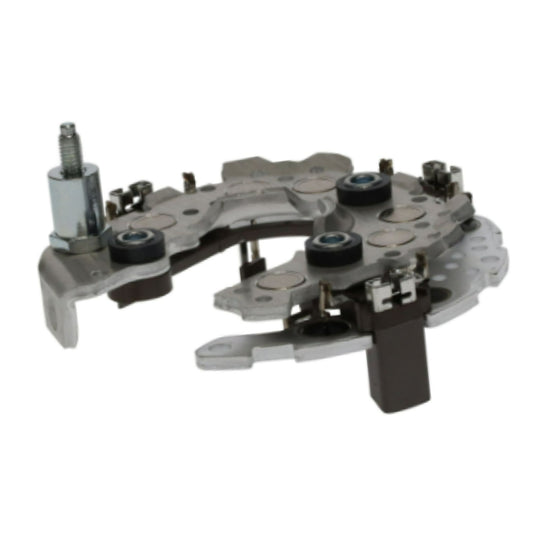

Rectifier 77904076 77904059 W065-203 TRN-7429

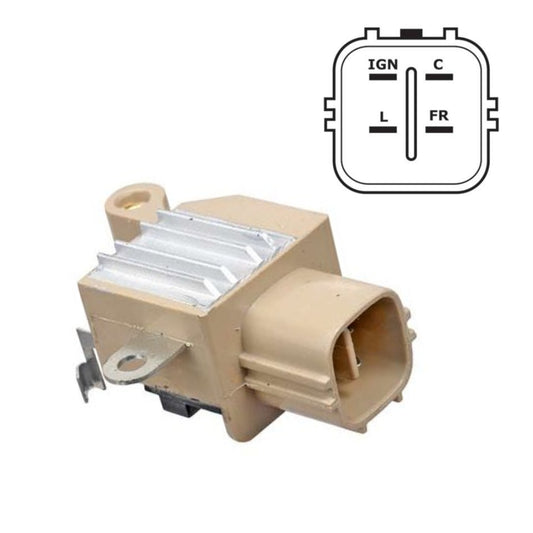

Regulator 80904458 W085-280cT7335 IN6335
Retainer Bearing 8590901
Screw 9620107 9620109 96909016 96909102 W115-44
Slip Ring 7190904B
Stator 72908513 72908511
Stud 96909003
Test Lead 9800-HC
Thru Bolt 96909100
Voltage Regulator 80904751
Washer, Spring 98909030
