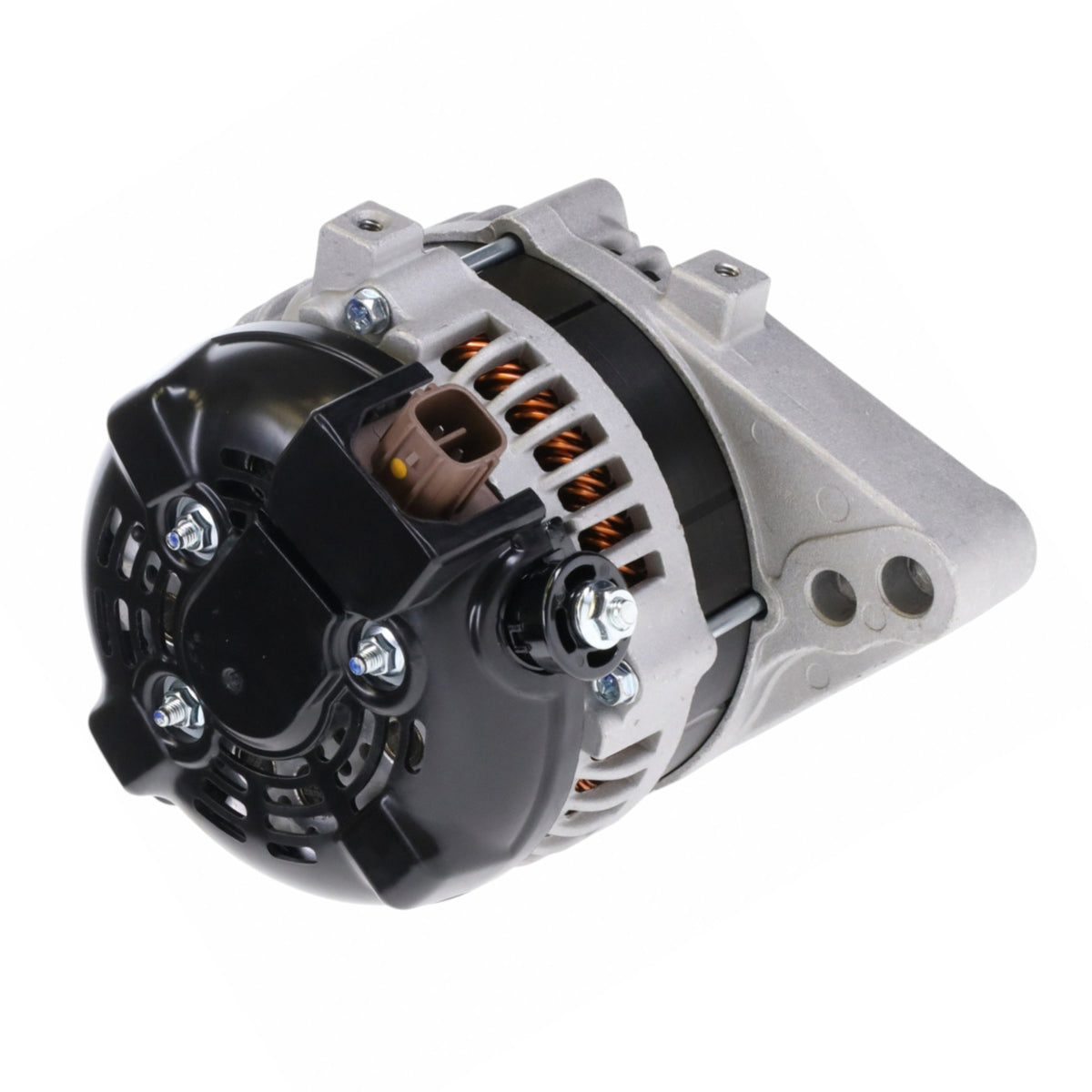

Alternator Rebuild Kit 2003-2009 Toyota 4Runner 4.0L 104210-3470, 104210-3471, 104210-4870, 104210-4871 - 13984

Toyota 4Runner V6 4.0L 2003-2009

Alternator Manufacturer and factory #s
Bosch Remanufactured AL3313X
Denso 104210-3470, 104210-3471, 104210-4870, 104210-4871, 9664219-487, 210-0611
Excel 10726
Hollander 60862
Lester 13984
Toyota 27060-31020, 27060-31021, 27060-31021-84
J&N 400-52320, 400-52596, 400-52596R
PIC Picture ID 290-5154, 290-5154A
Remy Light Duty 12670, 94752
Wilson 90-29-5682, 90-29-5682N

Manufacture DENSO
Amperage Rating 130
Decoupled Or Clutch Pulley No
Design IR/IF
Fan Type Internal
Ground Type Negative
Mfr Series HAIRPIN
OEM Manufacturer DENSO
Plug Clock 12
Plug Clock Rear View Main Mounting Ear At 6 O Clock 12
Plug Code 917
Plug Type 295
Pulley Belt Type Serpentine
Pulley Diameter 0
Pulley Groove Od 0
Pulley Groove Quantity 7
Pulley Type S7
Regulator Type Internal
Rotation Direction Clockwise (Right)
Series HAIRPIN
Stator Type Hairpin
Type Alternator
Voltage 12

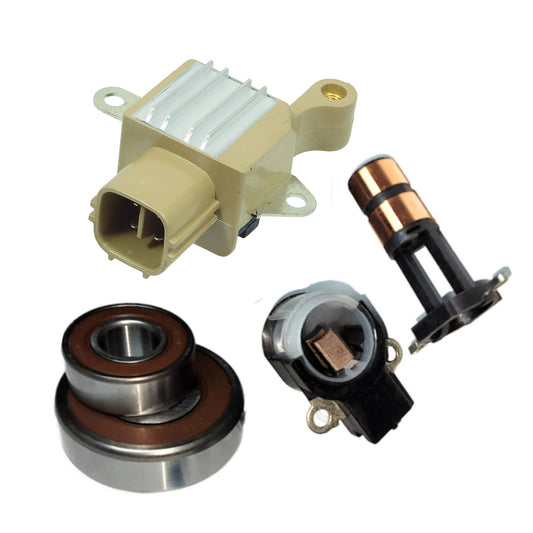

Alternator Repair Kit 13984RK-A
COVER 1 W015-55 84909048 46-82571
COVER W015-60 84909046 46-82507
COVER-11510 W015-65 84909046 46-82507
6303-2RS C3 BEARING W02X-11-1 54700 6-303-4W
6202 D2RS BEARING-15x35x13mm W02X-20-1 53514 10-2021-4W
BRUSH-5x7x15mm HP W035-04A 38-8201x2
PULLEY 7GRV 53mm OD W055-176
PULLEY NUT-14x1.5 FLANGE OE 1 W115-252N
RECTIFIER 6mm B+ W065-218 TRN-7427 INR427

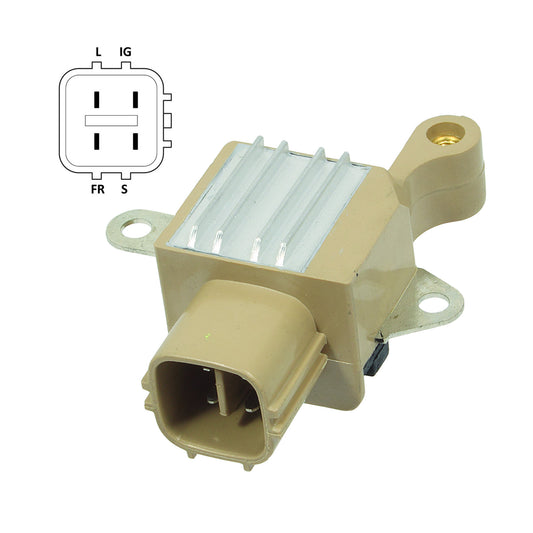

REGULATOR SIGLM W085-291 T7300 IN6300
INT FAN B/H SEAL-EARLY TOP W115-156
BRUSH HOLDER COVER W115-157
B+ INSULATOR W115-173 42-82323
B+ POST-13927 6mm SIDE W115-175
B+ RETAINING NUT-6mm 17.6 L W115-180
BRG RETAINER SCREW 4x.18mm W115-205
ROTOR BEARING COVER-TOP 1 W115-208
BRUSH HOLDER SCREW-M4x14 4 W115-44
WAVE WASHER RETAINING RING W115-45
BRUSH/RECT SCREW 4mm W115-81
BRUSH HOLDER SEAL W115-96
SRE FRAME W125-40
DE FRAME W135-26
BRUSH HOLDER W155-22 39-8207
SLIP RING W/LEAD 1 W165-00L 28-82853
BRUSH HOLDER W155-24 39-8206
SLIP RING 1 W165-11 28-82854

The alternator on this application has 2 different series with a few different internal components. The alternator as a whole is interchangeable, but to select the correct parts like brush holder or sliprings, you will need to match by Denso # or by picture comparison
