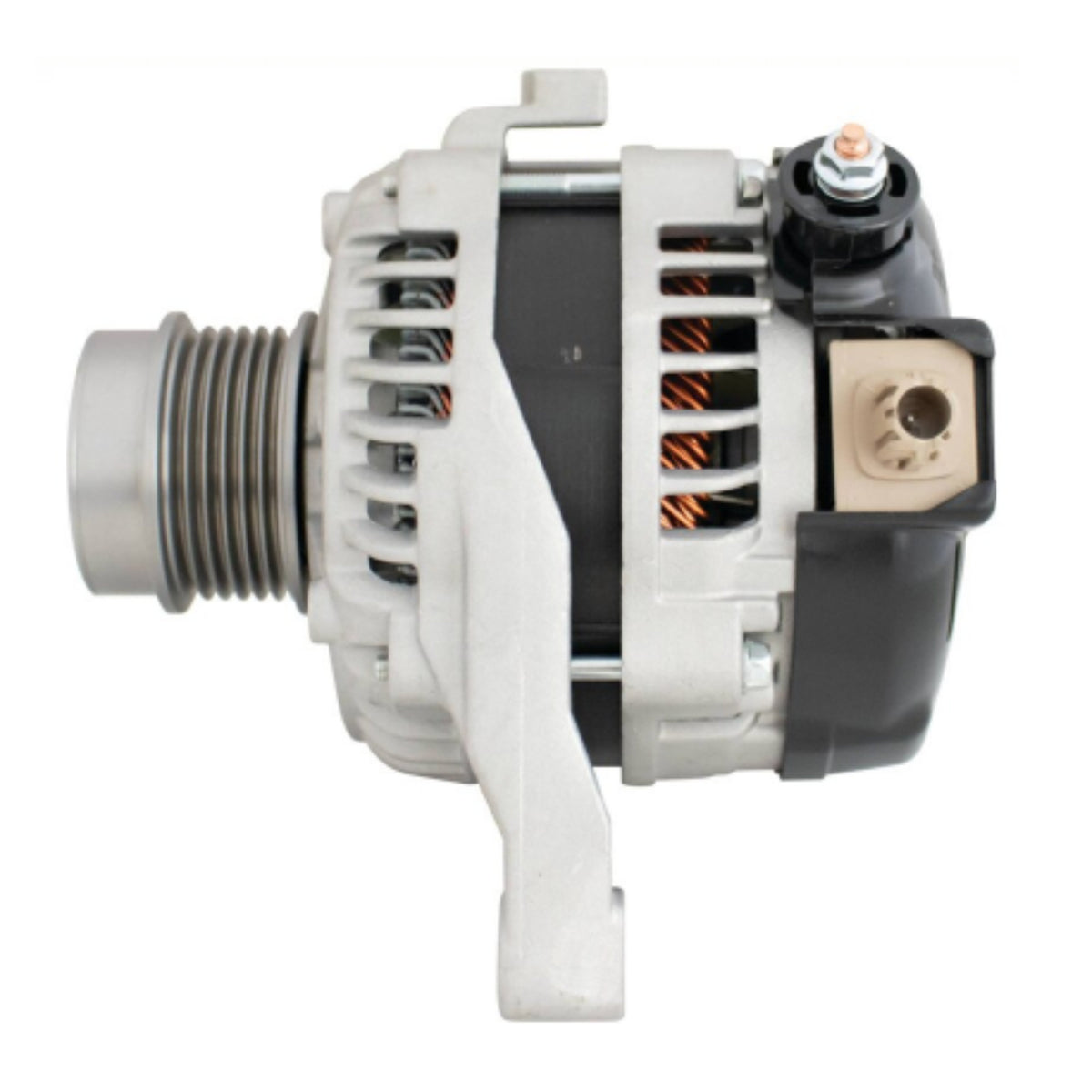

Alternator 2013-2018 Toyota RAV4 2.5L FWD 125A 27060-36090, 27060-0V140 - 14487

Toyota RAV4 L4 2.5L 2494CC 2013-2018 FWD 125 Amp Denso
** Please see 11486 for AWD Models - Thank you

Alternator Manufacturer and Factory #s
Bosch Aftermarket AL3380X (Reman)
DENSO 104211-329, 104211-3290, 104211-3291, 104211-3293, 104211-3531
DENSO Auto Parts 210-0825, 210-1215
Lester 14487
Lester Old 11778
Toyota 27060-36090, 27060-0V140

Manufacture DENSO
Amperage Rating 125
Decoupled Or Clutch Pulley Yes
Fan Type Internal
Oe Manufacturer DENSO
Plug Clock Rear View Main Mounting Ear At 6 O Clock 12
Pulley Belt Type Serpentine
Pulley Groove Quantity 6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Stator Type Hairpin
Voltage 12

Alternator Parts List
6202-2RS BEARING-15x35x11mm 1 53500 W02X-05-1
6303-2RS C3 BEARING 1 54700 W02X-11-1
Cover 1 W015-65
Voltage Regulator for 2014-2019 Corolla 1.8, 2013-2018 RAV4 2.5L -W085-397 80904598 IN6373
Denso Brush Holder Assembly with Brushes (0216203020) - W155-24 74909206 39-8206
Slip Ring for Hairpin Denso Alternators 5.8mm ID x 14.36mm OD - W165-11 7190904B - 28-82854
Rectifier Diode Assembly Replacing Denso 0040, 021580-0040 -W065-285 77904151 77904090
Nut 10mm X 5mm X M6-1.0 with Including Attached Floating Washer - 9590001
Decoupler Clutch Pulley for Toyota Lexus Pulley 920906 6 Groove -W055-129N 79909136 79909106 24-82289-4
LITENS DECOUPLER CAP-47.6mm 1 W112-30N
Brush Holder Attaching Screw 4mm x 0.7 x 14mm L, 21mm OAL, Pan Head with Lock Washer W115-44
M4 -0.7 Rectifier Bridge Screw w115-81
ND BEARING RETAINER-53mm OD 1 W115-51
TOLERANCE RING-14486 HP 1 W115-250
RETAINER SCREW 4x.18mm 4 W115-205
INSULATOR 1 W115-173
ND B+ RETAINING NUT-6mm 17.6 L 1 W115-180
ROTOR BEARING COVER-TOP 1 W115-208
Plug 9801500
