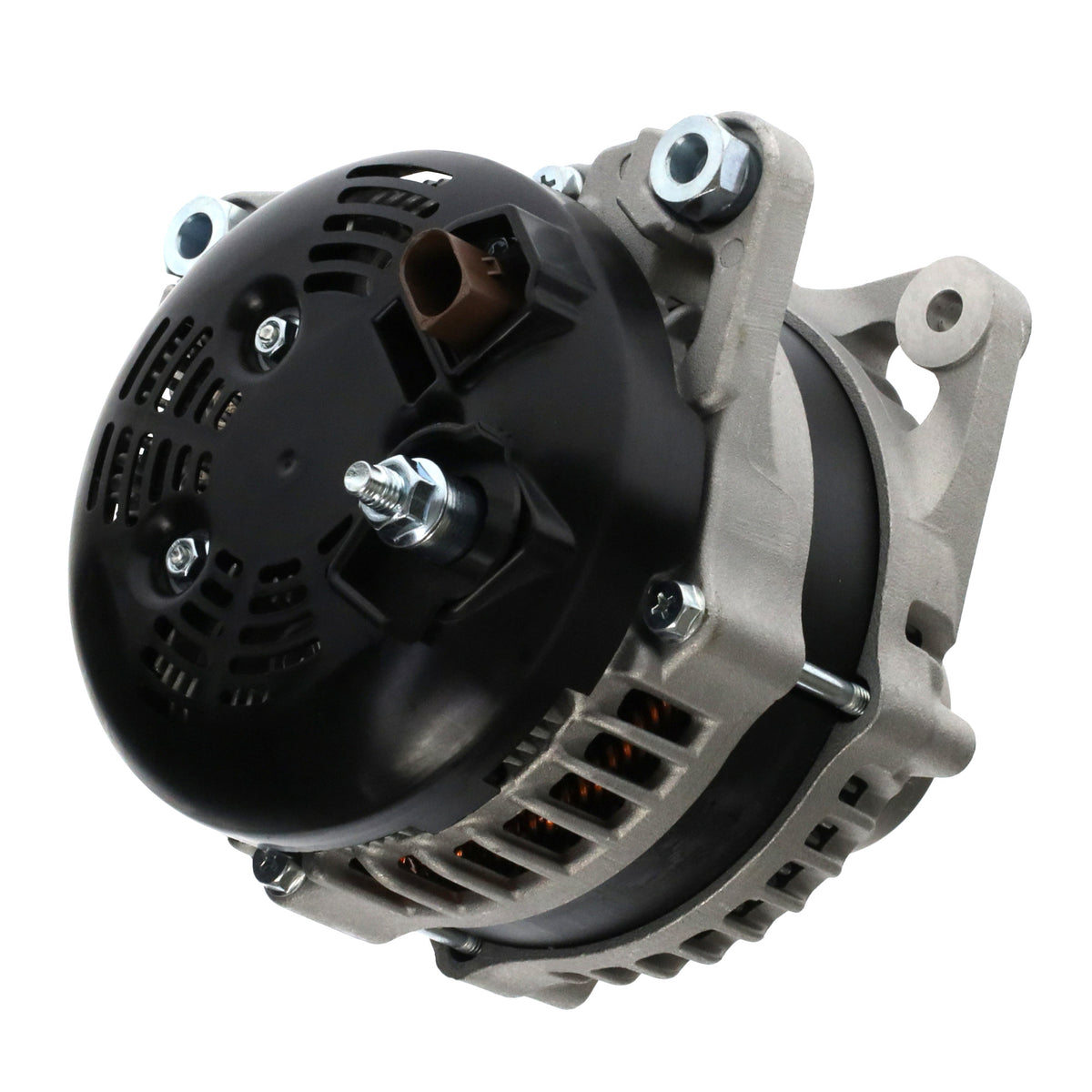

Alternator 2015-2018 Porsche Cayenne 3.6L 104210-6890 -6891 - 21007

Porsche Truck
Cayenne V6 3.6L 3605cc 2015-2018

Alternator Manufacturer and Factory #s
Denso 104210-6890, 104210-6891
Farcom 115356
Lester 21007
MFR Series - Family Type 05S27, HAIRPIN
Porsche 7PP-903-016C, 7PP-903-016CX, T946015, 7PP-903-016A, 7PP-903-016AX, 7PP903016C, 7PP903016CX
PIC# 290-1054

Manufacture DENSO
Amperage Rating 220
Decoupled Or Clutch Pulley Yes
Design IR/IF
Family 100
Fan Type Internal
Mfr Series HAIRPIN
Oe Manufacturer DENSO
Plug Clock 6:30
Plug Clock 7
Plug Clock Rear View Main Mounting Ear At 6 O Clock 7
Plug Code 065
Plug Orientation Rear
Pulley Belt Type Serpentine
Pulley Diameter 56.0
Pulley Groove Od 56.0
Pulley Groove Quantity 6
Pulley Type SC6
Regulator Type Internal
Rotation Direction CW
Series HAIRPIN
Stator Type HAIRPIN
Type Alternator
Voltage 12

Alternator Rebuild Kit 21007RK-A
Regulator 80904634 IN7720
Plug 9801430
6202 D2RS BEARING-15x35x13mm 1 W02X-20-1 53514 10-2021-4W
333 2RS BEARING-17x52x16mm 1 W02X-49-1 55222 10-3042-4W
BRUSH-5x7x15mm HP 2 W035-04A 38-8201x2
RECTIFIER 1 W065-231, W065-231A
BRG RETAINER SCREW-M4.5x18L 4 W115-204
BRUSH SPRING-LATE 2 W115-219
BRUSH HOLDER SCREW-M4x14 4 W115-44
BEARING RETAINER-61mm OD 1 W115-54
BRUSH/RECT SCREW 4mm 2 W115-81
BRUSH HOLDER 1 W155-24
SLIP RING 1 W165-11
