Alternator 421000-7020, 421000-7021 5.7L 180 Amp Chrysler 300 Challenger Charger Durango Grand Cherokee - 11575

With 180 Amp Options
Chrysler 300 V8 5.7L 2011-2023
Dodge Challenger V8 5.7L 2015-2023
Dodge Charger V8 5.7L 2011-2023
Dodge Durango V8 5.7L 2011-2020
Jeep Grand Cherokee V8 5.7L 2009-2020

Alternator Manufacturer and Factory #s
Arrowhead AND0595
Bosch Aftermarket AL6488X (Reman)
Bosch Service Europe 0-986-CR6-075, 0-986-UR6-075
Chrysler 04801833AB, 4801833AB, P04801833AB
DENSO 421000-702, 421000-7020, 421000-7021, TN421000-7021
DENSO Auto Parts 210-0828, 210-1218
Lester 11575

Manufacture DENSO
Amperage Rating 180
Decoupled Or Clutch Pulley Yes
Design ER/IF
Fan Type Internal
Mfr Series HAIRPIN
OEM Manufacturer DENSO
Plug Clock 2
Plug Clock Rear View Main Mounting Ear At 6 O Clock 2
Plug Code 378
Plug Orientation REAR
Pulley Belt Type Serpentine
Pulley Diameter 54.7
Pulley Groove Od 54.7
Pulley Groove Quantity 6
Pulley Type SC6
Regulator Type External
Rotation Direction Clockwise (Right)
Series HAIRPIN
Stator Type Hairpin
Type Alternator
Voltage 12

Alternator Rebuild Kit 11575RK-A

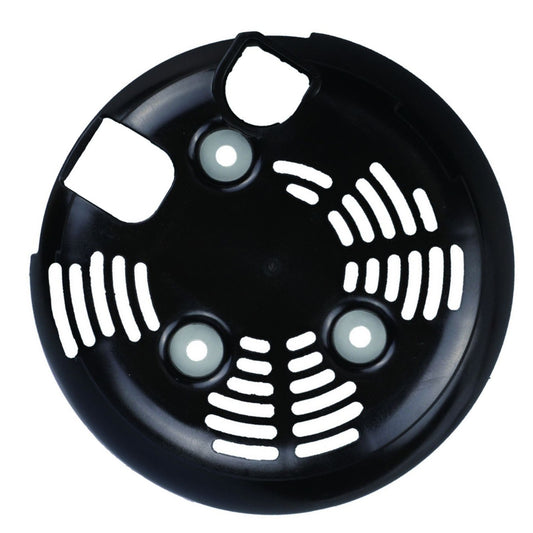

COVER DODGE 1 W015-108
6202 D2RS BEARING-15x35x13mm 1 W02X-20-1
333 2RS BEARING-17x52x16mm 1 W02X-49-1
BRUSH-5x7x15mm HP 2 W035-04A
DCP PULLEY- 6GRV52 OE 1 W055-132N
RECT- DODGE 180A 1 W065-266
B+ POST Insulator 8mm BACK 1 W115-179
FIELD TERMINAL BLOCK- 1 W115-203
BRUSH SPRING-LATE 2 W115-219
BRUSH HOLDER SCREW-M4x14 4 W115-44
WAVE WASHER RETAINING RING 1 W115-45
BRUSH/RECT SCREW 4mm 1 W115-81
SRE FRAME DODGE 1 W125-107
SE FRAME DODGE 1 W135-107
BRUSH HOLDER 12V 1 W155-24
HAIRPIN SLIP RING 1 W165-11
