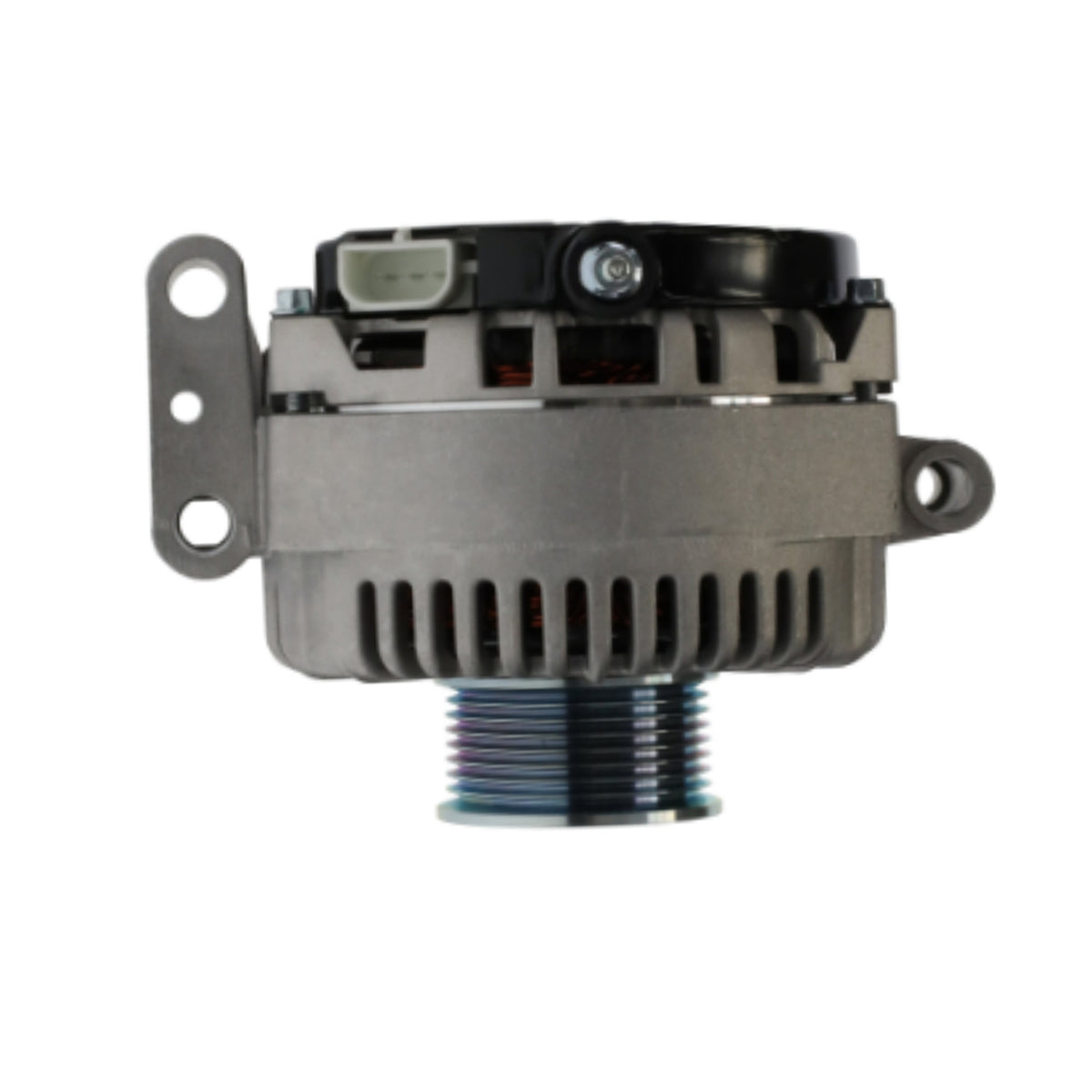

Alternator 2008-2010 Ford Super Duty 6.4L Dual Alternator System 120 Amp Secondary Unit - 8522

Ford Truck with Dual Alternators - Secondary Ford Unit
F-250 Super Duty V8 6.4L Diesel 2008-2010
F-350 Super Duty V8 6.4L Diesel 2008-2010
F-450 Super Duty V8 6.4L Diesel 2008-2010
F-550 Super Duty V8 6.4L Diesel 2008-2010

Alternator manufacturer and factory #s
Bosch Aftermarket AL7820X (Reman)
DENSO Auto Parts 210-5338
Ford 7C3T-10300-CA, 7C3Z 10346-CARM1, 7C3Z-10346-CA, 7C3Z-10346-CARM1, 7C3Z-10346-CBRM, 7C3Z-10346-CCRM, 7C3T-CA
Lester 8522
Motorcraft GL-8813-RM, GL-8875-RM, GL-915
Visteon JQ

Manufacture Ford
Amperage Rating 120
Decoupled Or Clutch Pulley No
Family 4G
Fan Type Internal
Ground Type Negative
Oe Manufacturer Ford
Plug Clock Rear View Main Mounting Ear At 6 O Clock 4
Plug Type 339
Pulley Belt Type Serpentine
Pulley Groove Quantity 8
Pulley Outside Diameter 64
Regulator Type Internal
Rotation Direction Clockwise (Right)
Voltage 12

Alternator Rebuild Parts
COVER-4G F01-00
FORD INT REG-4G WHITE A-SIG-FR F08-20

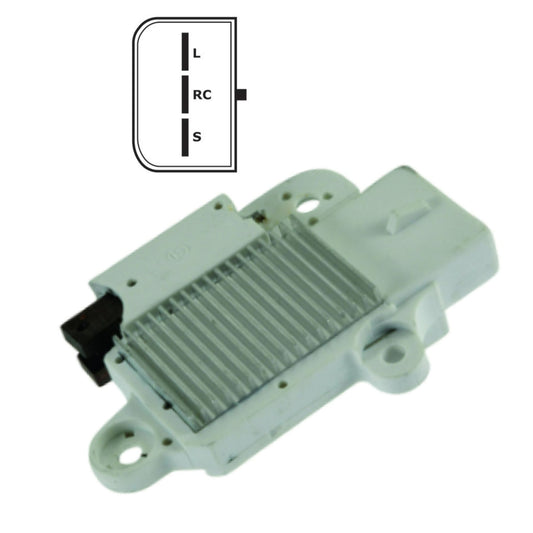

Regulator-4G WHT/BLU/BLK 1 T816 F08-23 F797
SLIP RING-4G 16mm OD FLEX 1 F16-06L

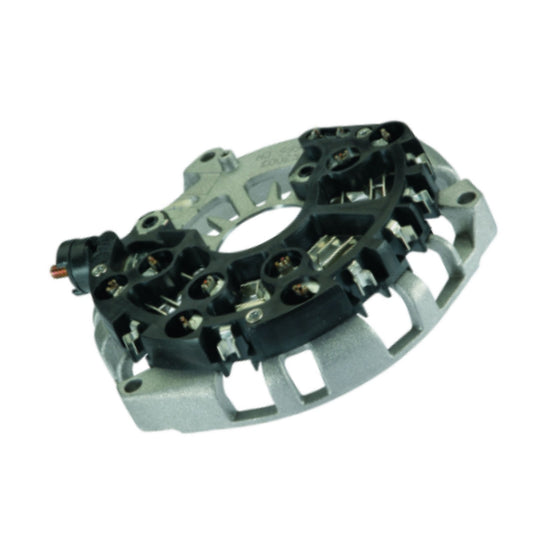

Rectifier T40 T41 F06-51 F06-52
6303-2RS C3 BEARING- W02X-11-1
6203 2HRLD BRG-17x40x12mm W02X-99-1
DIODE-NEG 50A 400V FLUSH W04X-45
DIODE-POS 50A 400V FLUSH W04X-46
PULLEY NUT-16x1.5mm W110-22
