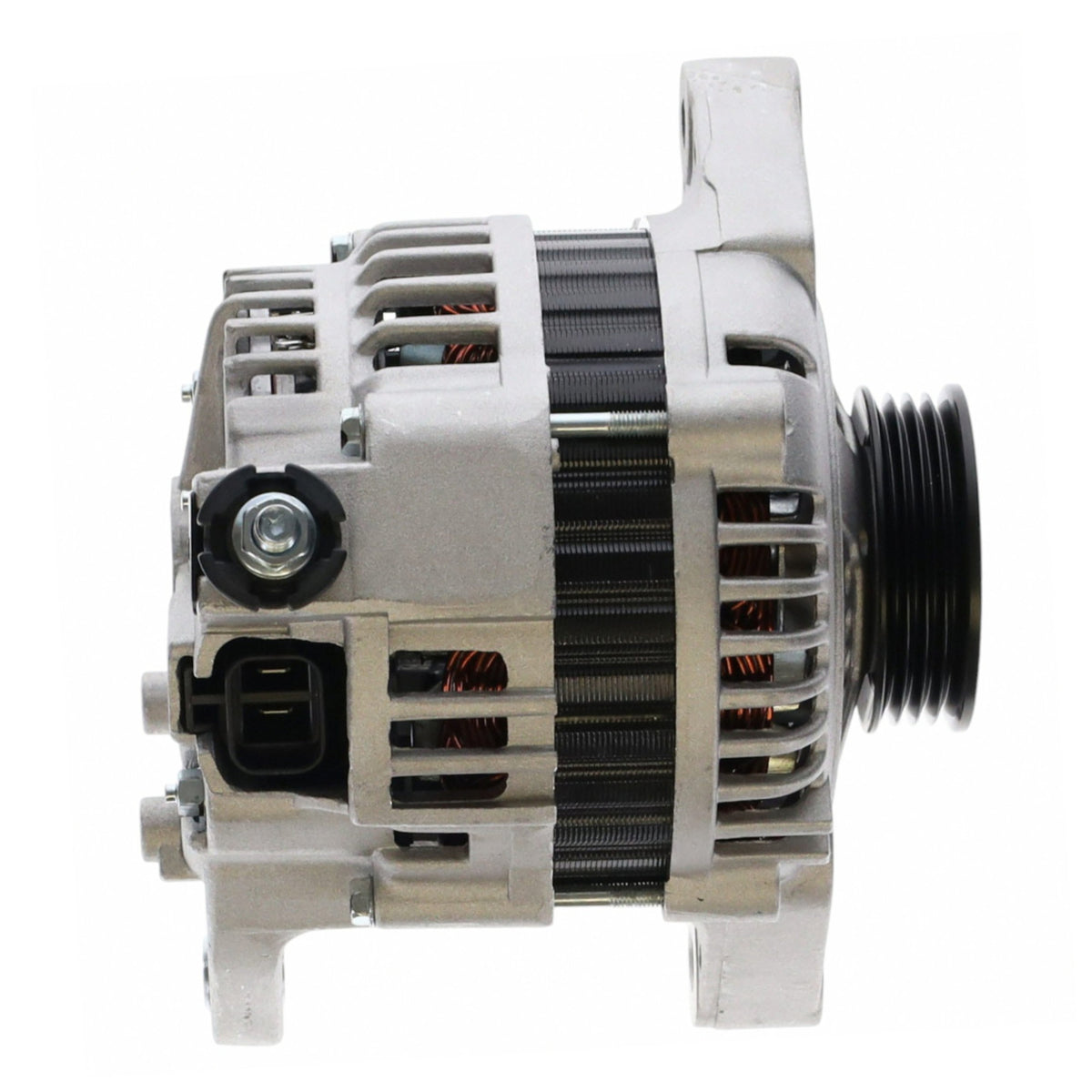

Alternator 1995-1998 Nissan 240SX 2.4L 80 Amp LR180-742 - 13641

Nissan 240SX L4 2.4L 2389CC 1995-1998 80 Amp

Alternator Manufacturer and factory #s
ACDelco 334-2039
Bosch Aftermarket AL2366N (New), AL2366X (Reman)
Bosch Service Europe 0-986-UN0-897, 0-986-UR0-897
Datsun/Nissan 23100-70F00, 23100-70F00R
DENSO Auto Parts 210-3125
HC CARGO 113583
Hitachi Astemo LR180-742, LR180-742B, LR180-742C, LR180-742X
Lester 13641
RELIANCE 41498

Manufacture Hitachi
Amperage Rating 80
Design IR/IF
Fan Type Internal
Oe Manufacturer Hitachi
Plug Clock 3
Plug Clock Rear View Main Mounting Ear At 6 O Clock 3
Plug Code 300
Plug Type 300
Pulley Belt Type Serpentine
Pulley Diameter 64
Pulley Groove Od 64
Pulley Groove Quantity 4
Pulley Type S4
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

Alternator Rebuild Kit 13641RK-A
6303-2RS C3 BEARING W02X-11-1 6-303-4W
B10-50D BEARING-10x27x11mm 1 W02X-31-1 10-1050-4W
BRUSH-5x8x26mm 21H W035-20 38-8109
DIODE-NEG 35A 11.75mm W045-06
DIODE-POS 35A 11.75mm 1 W045-07
RECTIFIER NISSAN 90A M6B+ W065-131 IHR775
REGULATOR NISSAN STA 1 W085-149 IH765
REG RPR INS-NISSAN 1 W085-165
STATOR-90A W/O EYE W105-17 27-8107
B+ TERM EXTENDER SET 1 W115-104
BATTERY POST-NISSAN W115-110
BRUSH HOLDER SEAL 1 W115-117
B+ POST INSUL M8 W115-131 42-81311
B+ POST INSUL W115-135 42-81310
RECT FRAME W115-144
B+ COVER-SNAP STYLE 1 W115-97
FAN DEFLECTOR W115-99
DE FRAME W135-86
BRUSH HOLDER W155-21 39-8118
SLIP RING W165-05
NUT 85-2407
