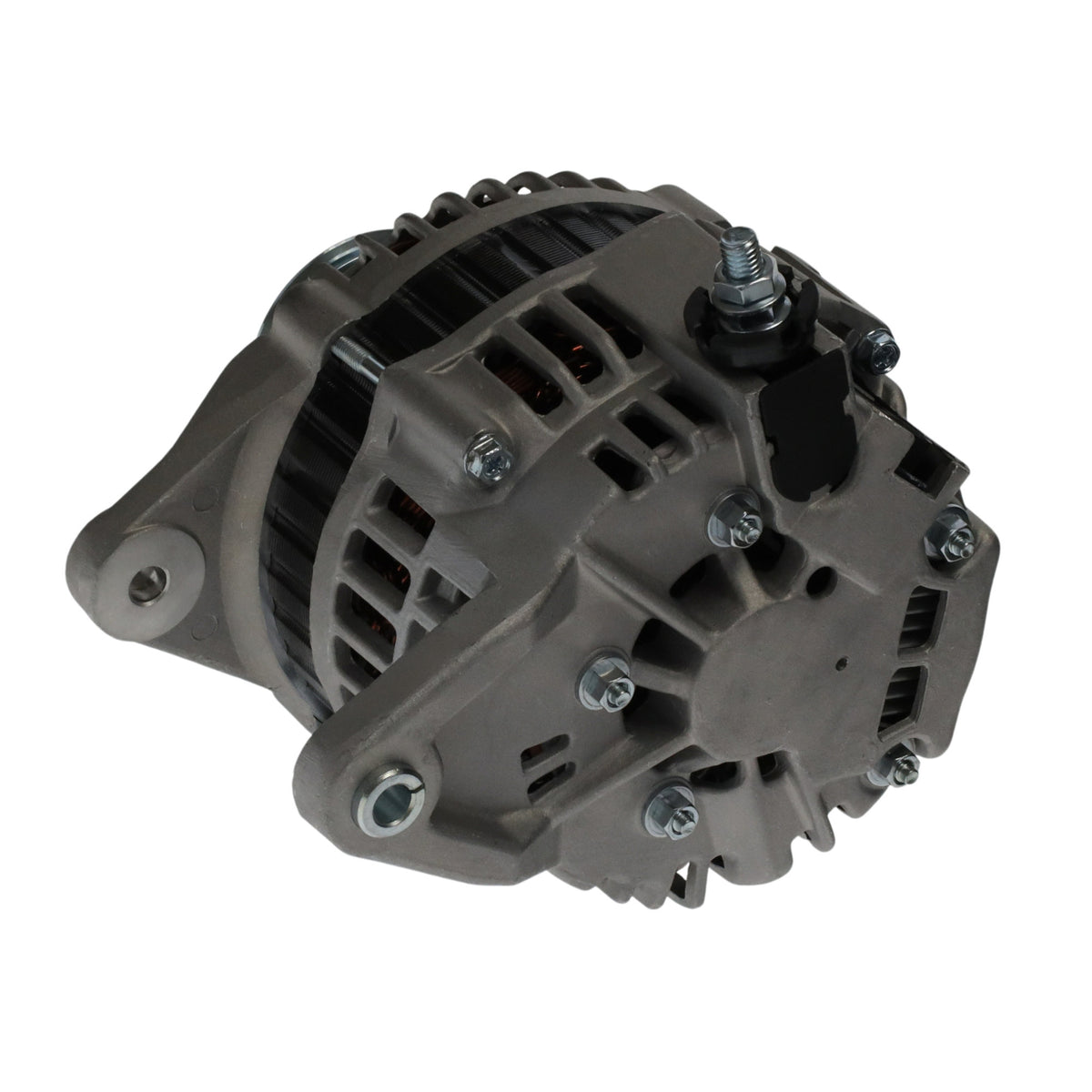

Alternator 1995-1999 Subaru Legacy 2.2L 2.5L 85 Amp Hitachi - 13645

Subaru Legacy H4 2.2L 2212CC 1995-1999 Hitachi
Subaru Legacy H4 2.5L 2458CC 1996-1999

Alternator Manufacturer and Factory #s
ACDelco 334-2029, 334-2029A
Arrowhead AHI0017
Bosch Aftermarket AL4330X (Reman)
Bosch Service Europe 0-986-UR0-192
Delco Reman Europe DRA0706
DENSO Auto Parts 210-3144
HC CARGO 112979
Hitachi Astemo LR185-701, LR185-701B, LR185-701C, LR185-701E, LR185-701H, ALR0076, LR185-702, LR185-702B, LR185-702C, LR185-702RR, LR185-702SR
Lester 13645
Lucas Reman A8618
Subaru 23700-AA210, 23700-AA210F, 23700-AA211, 23700-AA211F, 23700-AA212, 23700-AA34A, 23700-AA34AA, 23700-AA34ARA
Suzuki 23700-AA210
WAS BOM 13645



Manufacture Hitachi
Amperage Rating 85
Decoupled Or Clutch Pulley No
Design IR/IF
Fan Type Internal
Ground Type Negative
Oe Manufacturer Hitachi
Plug Clock 10
Plug Clock Rear View Main Mounting Ear At 6 O Clock 10
Plug Code 300
Plug Type 300
Pulley Belt Type Serpentine
Pulley Diameter 55
Pulley Groove Od 55
Pulley Groove Quantity 5
Pulley Type S5
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

Alternator Rebuild Kit 13645RK-A
6303-2RS C3 BEARING W02X-11-1 6-303-4W
B10-50D BEARING-10x27x11mm 1 W02X-31-1 10-1050-4W
BRUSH-5x8x26mm 21H W035-20 38-8109x2
DIODE-NEG 50A AVL 23V 4 W045-04 32-8927
DIODE-POS 50A AVL 23V 4 W045-05 32-8928, 32-8918
PULLEY 5GRV 55mm OD W055-68

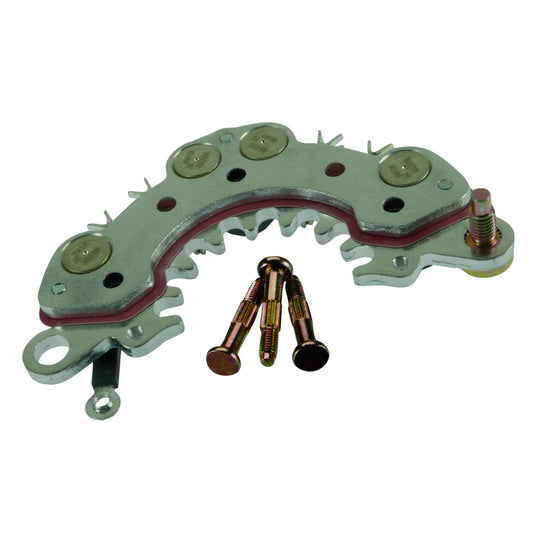

RECTIFIER M6 W065-152 W065-187 IHR744 IHR775
REGULATOR STA W085-149 W085-202 IH765
REG RPR INS 1 W085-165
INT FAN STATOR W/O EYE W105-17 27-8108
B+ EXTENDER SET 6mm 1 W115-105
RECT STUD M5 3 W115-109
BATTERY POST 1 W115-110
BRUSH HOLDER SEAL 1 W115-117
NOISE SUPPRESSOR 1 W115-122
B+ POST INSUL W115-132
B+ POST INSUL W115-135 42-81310
RECT FRAME 1 W115-144
B+ COVER-SNAP STYLE 1 W115-97
FAN DEFLECTOR W115-99 46-81407
DE FRAME SUBARU W135-04
BRUSH HOLDER W155-21 39-8118
BRG RETAINER-13250 1 W115-94
SlipRing 28-81856
Nut 85-2300
Regulator, Rectifier, Brush ASY , Deflector Kit 48-8102

There is different versions of this alternator with different internal parts. Although the alternator is compatible with all versions as a complete unit, the internal parts are not compatible between some of the versions. Please match up your versions parts by the pictures - Thank you
